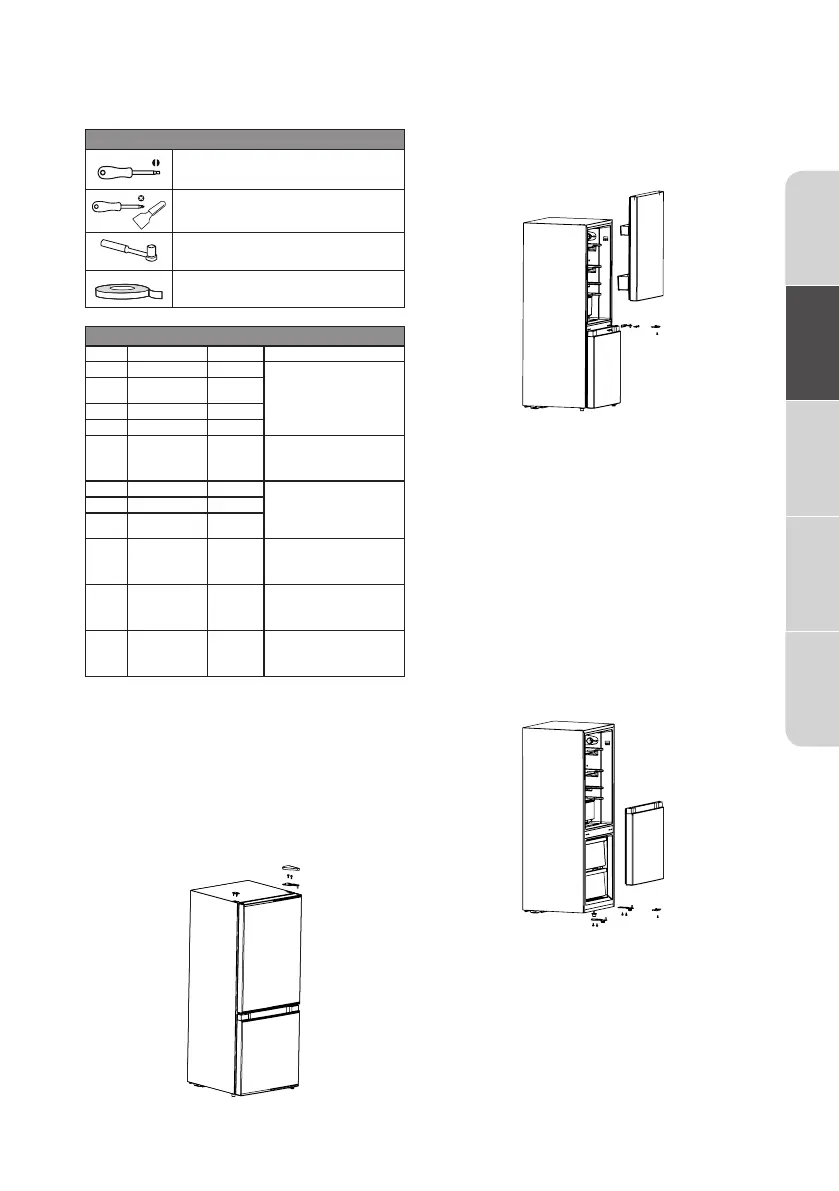

2.7 LEVELING DOOR
List of tools to be provided by the user
Cross screwdriver
Putty knife/thin-blade screwdriver
5/16”socket and ratche
Masking tape
Parts to be used for door reverse
SN parts Quantity Notes
1 Upper hinge 1
Pre-installed on the
refrigerator and to be
used when changing
the door
2
Upper hinge
cover
1
3 Hole cover 1
4 Reft stopper 2
5 Left stopper 2
In the attached plastic
bag, take them out
for use when door is
reversed
6 Middle hinge 1
Pre-installed on the
refrigerator and to be
used when changing
the door
7 Insert pin 2
8
Right lower
hinge
1
9
Left lower
hinge
1
In the attached plastic
bag, take them out
for use when door is
reversed
10
Levelling
feet
1
Pre-installed on the
refrigerator and to be
used when changing
the door
11 Spacer 1
In the attached plastic
bag, take them out
for use when door is
reversed
• Power off the refrigerator, and
remove all objects from the door
trays.
• Remove the hinge cover, then
remove the upper hinge screws,
upper hinge and hole cap on the
other side.
• Remove the refrigerating door,
the middle hinge,the screw hole
caps.Remove the screws and limit
blocks xed on the lower end
cover of refrigeration.
• Remove the freezer door, remove
the bottom hinge and adjustable
foot of the other side.
• Install the adjusting foot to the
right side, take out 2 limit blocks
from the plastic bag in the
instruction manual and x them
to the left side of the lower end
cover respectively with screws,
and freeze the left side of the
lower end cover, remove the
other side of the lower hinge from
the instruction bag and install it on
the left side
• Place the freezer door from top to
bottom, take out the gasket from
the plastic bag in the instructions
and put it into the axle hole on
the left side of the freezer door,
as shown in the picture. Fix the
center hinge with screws and
install the studs.
