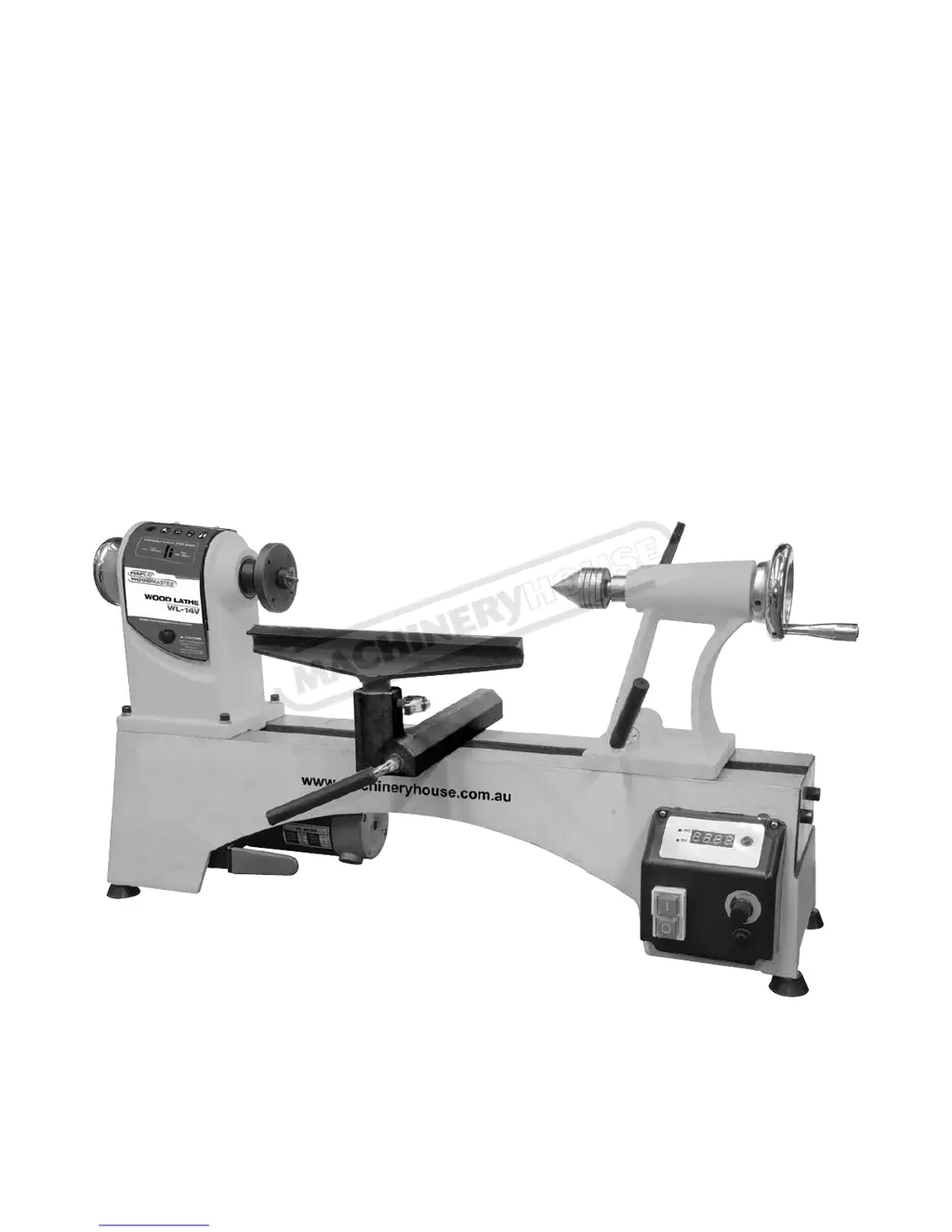

Hafco Woodmaster WL-14V User Manual (English)

Questions and Answers:

J
John MedinaAug 15, 2025
Why Hafco Woodmaster Lathe machine does not start or a breaker trips?
- C
  Cassidy LeeAug 15, 2025
  If your Hafco Woodmaster Lathe doesn't start or the breaker trips, there are several potential causes. The plug or receptacle might be faulty or incorrectly wired, requiring you to test for good contacts and correct the wiring. The power supply could be at fault or switched off; ensure the hotlines have the correct voltage and the main power supply is on. A faulty motor on button or on/off switch may need replacement. Check the wiring for breaks and repair or replace as necessary. Finally, the motor itself could be at fault, requiring testing, repair, or replacement.
H
hickskristenAug 18, 2025
What to do if Hafco Woodmaster WL-14V machine stalls or is under powered?
- W
  Wendy BondAug 18, 2025
  If your Hafco Woodmaster Lathe stalls or is underpowered, it could be due to a faulty plug or receptacle, which requires testing for good contacts and correcting the wiring. The motor bearings might be at fault; test by rotating the shaft—rotational grinding or a loose shaft indicates bearing replacement. The motor may have overheated; clean it off, let it cool, and reduce the workload. The motor itself could also be at fault, requiring testing, repair, or replacement.
T
Teresa SmithAug 21, 2025
Why does Hafco Woodmaster WL-14V Lathe have a vibration or noisy operation?
- H
  hjohnsonAug 21, 2025
  A vibrating or noisy Hafco Woodmaster Lathe could stem from several issues. A motor or component might be loose; inspect and replace damaged bolts/nuts, then retighten. The motor fan could be rubbing on the fan cover; replace a dented cover or a loose/damaged fan. The workpiece or chuck might be at fault; center the workpiece in the chuck or face plate, reduce RPM, or replace a defective chuck. Lastly, the motor bearings could be faulty; test by rotating the shaft, and if there's rotational grinding or a loose shaft, replace the bearings.
S
stevenhicksAug 25, 2025
What to do if motor is running but spindle is not turning on Hafco Woodmaster WL-14V?
- E
  Elizabeth OchoaAug 25, 2025
  If the motor runs but the spindle doesn't turn on your Hafco Woodmaster Lathe, the belt might be loose, broken, or off the pulley. Inspect the belt and tighten, reinstall, or replace it if damaged. It could also be that the belt is broken and needs to be replaced.
D
Don ParkerAug 28, 2025
How to fix vibration noise while Hafco Woodmaster Lathe is running or when speed is changed?
- W
  William SimonAug 28, 2025
  If you notice vibration noise while your Hafco Woodmaster Lathe is running or when the speed changes, the belt cover might be loose. Try tightening the belt cover lock handle. If that doesn't work, the belt cover could be bent or dented, making contact with the motor pulley or belt. Remove the belt cover and inspect the inside for dents, bends, or signs of rubbing. Tap out any dents with a rubber mallet, bend the cover back into shape, or shim the belt cover away from the motor pulley.
M
Mary HarrisonAug 31, 2025
What to do if chisels grab or dig into the workpiece on Hafco Woodmaster WL-14V Lathe?
- N
  Nicole CantrellAug 31, 2025
  If chisels grab or dig into the workpiece on your Hafco Woodmaster Lathe, the tool rest might be set too low; set it higher. Alternatively, the tool rest could be too far from the workpiece; move it closer. Ensure you're using the correct chisel/tool; consult trade books or seek advice from an experienced lathe operator. Lastly, the chisel/tool might be dull; sharpen it or try a different one.
T
tammy40Sep 3, 2025
How to improve bad surface finish on Hafco Woodmaster WL-14V?
- B
  Brian CordovaSep 3, 2025
  A bad surface finish on your Hafco Woodmaster Lathe may be due to the wrong spindle speed. Experiment to find a better speed. It could also be caused by a dull chisel or using the wrong chisel for the operation; sharpen the chisel or try a different one.
E
Evan PaceSep 7, 2025
Why does the tailstock move on my Hafco Woodmaster WL-14V Lathe?
- L
  lindawrightSep 7, 2025
  If the tailstock moves on your Hafco Woodmaster Lathe, the tailstock mounting bolt might be loose; tighten it. Too much clamping pressure applied by the tailstock could also be the reason; apply less pressure. Another cause might be an oily or greasy bed surface; clean the surface to remove oil/grease.
M
mccormickshirleySep 12, 2025
What to do if I can’t remove tapered tool from tailstock barrel on Hafco Woodmaster WL-14V Lathe?
- J
  jay60Sep 12, 2025
  If you can’t remove a tapered tool from the tailstock barrel of your Hafco Woodmaster Lathe, the tailstock barrel might not have retracted fully. Turn the barrel handwheel until it forces the taper out. Also, debris might not have been removed from the taper before insertion; always ensure taper surfaces are clean.

Hafco Woodmaster WL-14V Specifications

General

Spindle Speed	500 - 2000 RPM
Tailstock Taper	MT2
Voltage	240 V
Swing Over Bed	355mm
Motor Power	1 HP

Summary

SPECIFICATIONS

Product Dimensions

Details of the lathe's physical dimensions including weight and footprint.

Main Specifications

Key operational specifications like swing over bed, distance between centers, and speed ranges.

Electrical Specifications

Information regarding power requirements, current rating, circuit size, and switch type.

Motor Details

Specifications for the lathe's motor, including type, power, phase, speed, and bearings.

Spindle Information

Details about the spindle taper, thread size, bore, and included spindle center.

Tool Rest Information

Dimensions related to the tool rest, including width and post length.

Tailstock Information

Specification for the tailstock taper.

FEATURES

Solid Construction

Describes the lathe's robust build using cast-iron for strength and vibration reduction.

Speed Range

Details the 2-step electronic variable speed motor and its RPM ranges.

Reverse Option

Highlights the capability to change spindle direction for sanding.

Add-On Bed Extension System

Information on an optional 650mm bed extension to increase length.

Lathe Stand Options

Details available optional stands to raise the machine to a working height.

SAFE WORK PROCEDURE

Before Operating Safety Checks

Checklist for ensuring the machine and workspace are safe before operation.

Operating Safety Checks

Safety measures to follow while the machine is in use.

After Operations and Clean Up

Steps for safely shutting down and cleaning the machine.

SAFETY PRECAUTIONS

Potential Hazards and Injuries

Identifies risks like flying debris, entanglement, and airborne dust.

Prohibited Actions (Don'ts)

Lists actions to avoid, such as using faulty equipment or leaving the machine unattended.

Operational Safety Precautions

Key safety rules for operating the lathe, including tool rest usage and workpiece security.

ASSEMBLING THE WL-14V

Assembling the Tailstock

Instructions for attaching the tailstock handle and quill lock.

Installing the Lock Handle

Steps to properly install the tailstock locking handle.

Adding a Bed Extension

Guide for attaching the optional 650mm bed extension.

Connecting To The Power Source

OPERATING INSTRUCTIONS

Belt and Variable Speed Range

Explanation of the 2-step pulley system for optimizing speed and power.

Changing Speeds

Procedure for adjusting the lathe's rotational speed using the variable speed control.

Changing Belt Positions

Steps for moving the drive belt between pulleys to alter speed settings.

Headstock Controls

Using the Spindle Index

How to use the spindle index lock for locking the spindle in position.

Locking and Unlocking the Spindle

Instructions for locking and unlocking the spindle for maintenance or setup.

Mounting a Faceplate or Chuck

Procedure for securely attaching faceplates or chucks to the spindle.

Tool Rest Operations

Adjusting the Tool Rest

Guidance on positioning and securing the tool rest for optimal turning.

Tailstock Operations

Moving and Locking the Tailstock

Steps for positioning and securing the tailstock along the bed.

Tailstock Quill Usage

Instructions for inserting and removing taper accessories from the tailstock quill.

MAINTENANCE SCHEDULE

Daily and Monthly Checks

Recommended checks for the lathe to ensure proper function and safety.

Cleaning Procedures

Guidelines for cleaning the lathe to prevent rust and maintain performance.

Belt Replacing and Tensioning Procedure

TROUBLESHOOTING GUIDE

SPARE PARTS INFORMATION

How to Order Spare Parts

Instructions on how to identify and order replacement parts for the lathe.

SPARE PARTS DIAGRAM

SPARE PARTS LIST

SPARE PARTS LIST (continued)

Wiring Diagram

Schematic illustrating the electrical connections and components of the lathe.

GENERAL MACHINERY SAFETY INSTRUCTIONS

WOOD LATHE SAFETY INSTRUCTIONS

PLANT SAFETY PROGRAM

Hazard Identification, Assessment & Control

Framework for identifying, assessing, and controlling hazards associated with the wood lathe.
