3800 Series Electric Mortise Lock Electrical
Specifications and Supplemental Instructions
I-LS02200
REV 2, 04/18/2018 27390101 Page 3 of 4
Door and Frame Preparations
1. Follow mortise lock instructions and template to prepare door and frame for installation. Add ½” depth to the mortise
pocket as shown below. Since motor control is located inside the lockset, there are no special preparations or alterations
to the standard installation.
Door Raceway Preparations

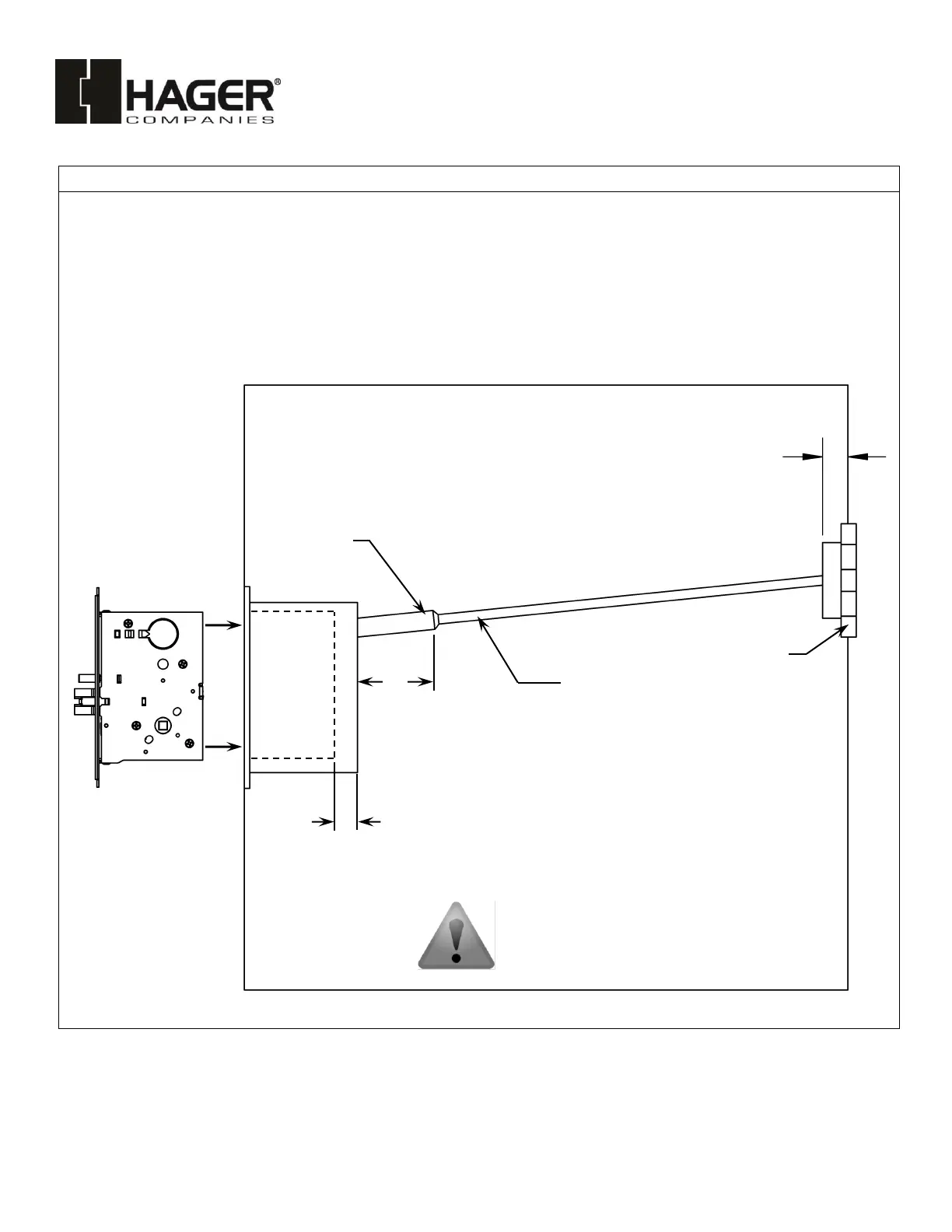

1. Door raceway preparations are required to route electrical wires. See diagram below for raceway specifications.
2. Follow mortise lock instructions and template to complete installation.
* - Using Quick Connectors requires a
5/8” diameter raceway
Door fabricator to provide 3/8” diameter (5/8” for
quick connectors) (minimum) raceway through
door to allow insertion of electrical wires running
between the lock mortise and electric hinge.
