hager 3800 Series User Manual

3800 Series Electric Mortise Lock Electrical
Specifications and Supplemental Instructions
I-LS02200
REV 2, 04/18/2018 27390101 Page 4 of 4

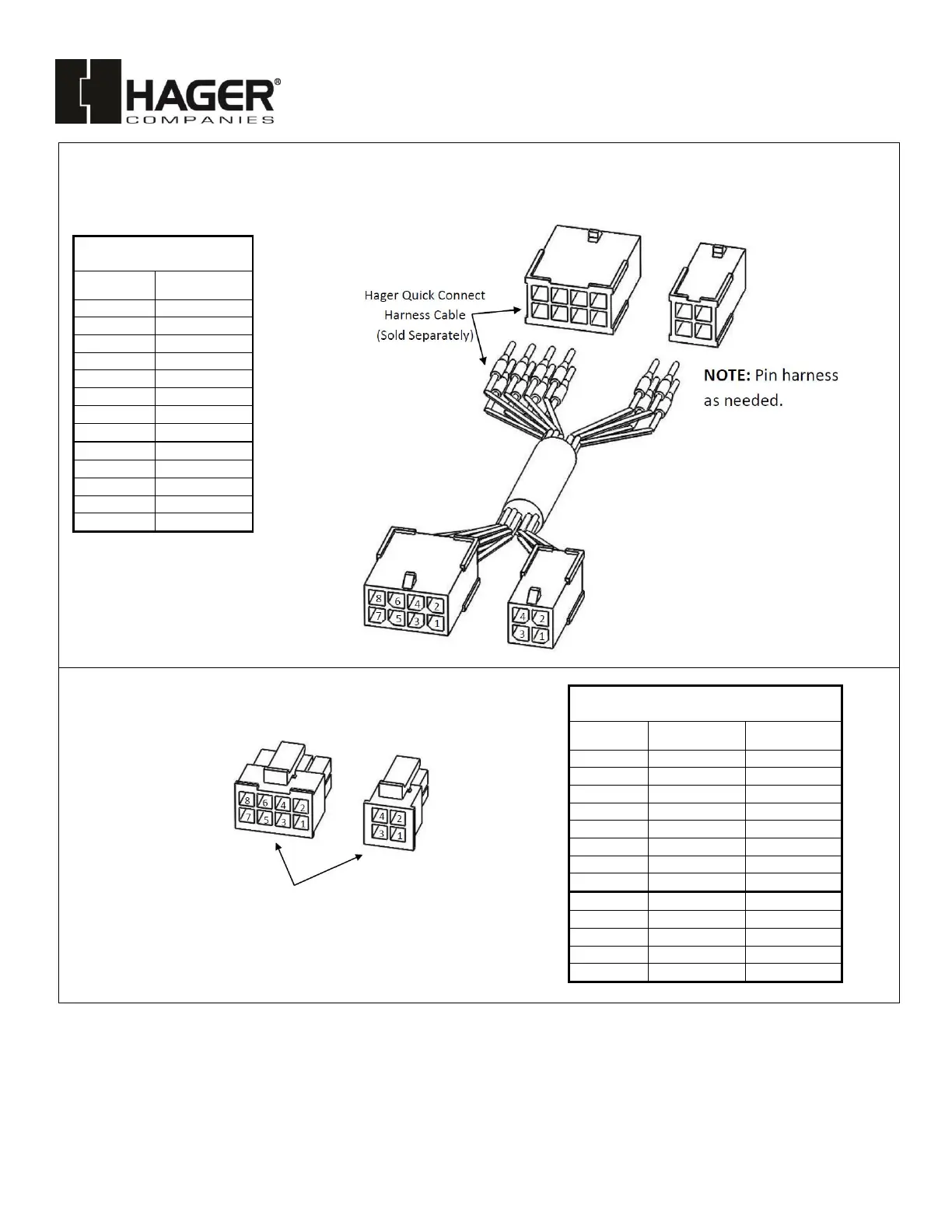

QUICK CONNECTS
 Quick connects are installed on the wires from the mortise lock electrification options. These quick connects are compatible
with Hager Quick Connect Harness Cable which can be used to plug into Hager hinges with quick connects to provide
quick and accurate wiring of the door.
Quick Connect
Harness Cable Pinning
8 Pin
Wire Color
Pin #1
Black
Pin #2
Red
Pin #3
White
Pin #4
Green
Pin #5
Orange
Pin #6
Blue
Pin #7
Brown
Pin #8
Yellow
4 Pin
Color
Pin #1
Violet
Pin #2
Gray
Pin #3
Pink
Pin #4
Tan
3800 Quick Connect
Pinning
8 Pin
Function
Wire Color
Pin #1
Power*
Blue
Pin #2
Power*
Blue
Pin #3
RX (Com)
Yellow
Pin #4
RX (N/O)
Red
Pin #5
RX (N/C)
Gray
Pin #6
DPM (Com)
White
Pin #7
DPM (N/O)
Red
Pin #8
DPM (N/C)
Green
4 Pin
Function
Color
Pin #1
Blank
Blank
Pin #2
LM (Com)
Black
Pin #3
LM (N/O)
White
Pin #4
LM (N/C)
Red
Hager 3800 Mortise Lock
Quick Connect Terminals
