Operation

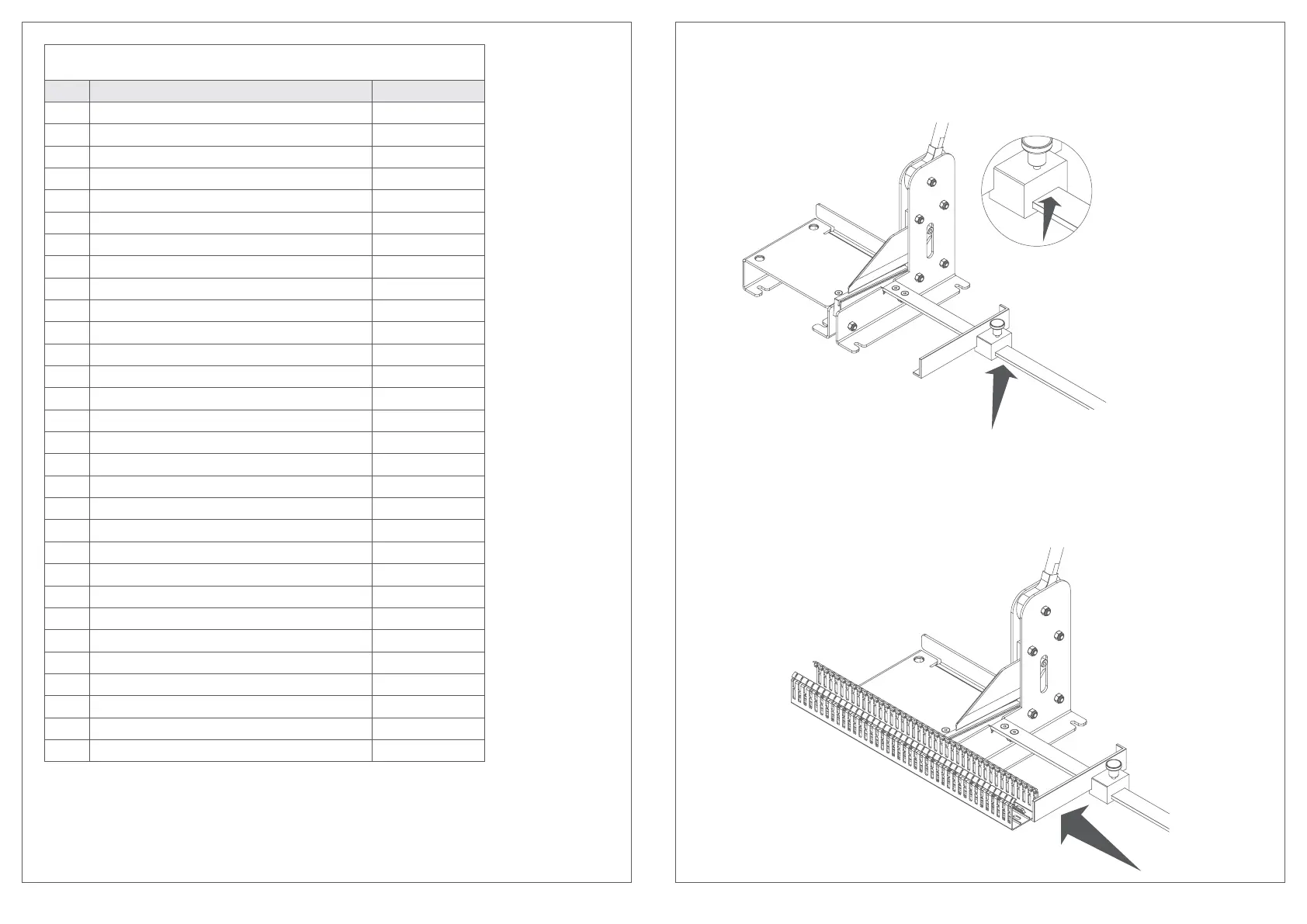

1. Adjust the desired length of the wiring duct by using the length stopper and lock posi-
tion by screwing down the thumbscrew. Push down the blade guard with the wiring duct.
Measurement indicator
2. Hold the wiring duct only at the front and outside of the cutting area and the blade
position. Do not reach behind the wiring duct. For the desired cutting dimension connect
the wiring duct to the length stopper then slide it completely back against the counter
support . The blade has to be placed between the bars. Possibly the duct has to be moved
back to the previous slot. If the exact dimension is desired the according bar can be bro-
ken out and it can be cut on its place.
BA7CUTTER spare part list
Pos. Description Country of origin
01 Handle ITALY
02 Cylindric screw M6X12 mm ITALY
03 Cam ITALY
04 Cam bush ITALY
05 Cam tap ITALY
06 Compression spring ITALY
07 Right side ITALY
08 Reference post ITALY
09 Blade protection reference post ITALY
10 Blade holder ITALY
11 Cylindric screw M8X35 mm ITALY
12 Spring bush ITALY
13 Blade ITALY
14 Cylindric screw M8X14 mm ITALY
15 Blade protection ITALY
16 Blade protection bush ITALY
17 Blade protection spring ITALY
18 Left side ITALY
19 Spacer bush ITALY
20 Flared screw M6X14 ITALY
21 Bearing tray ITALY
22 Hexagonal nut M8 ITALY
23 Connection plate ITALY
24 Hexagonal nut M6 ITALY
25 Support for millimetric pole ITALY
26 Left millimetric pole ITALY
27 Right millimetric pole ITALY
28 Abutting end base ITALY
29 Trunking abutting end ITALY
30 Tightening handle ITALY
