English
7
Non-Ducted Installation - Skip to “Preparing Electrical Connections”
section. The following steps (7 thru 15) are for DUCTED INSTALLATION
ONLY.

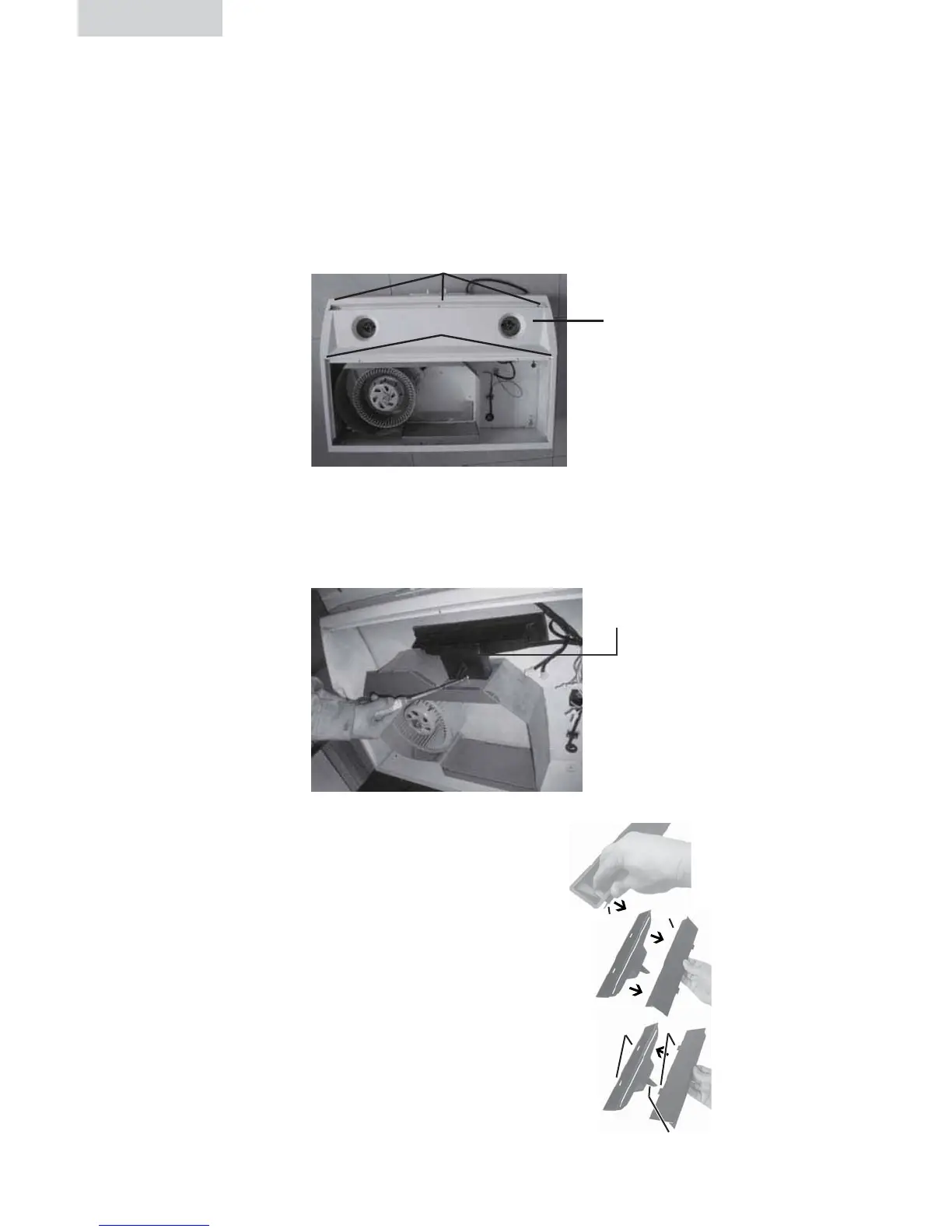

8. Remove Light Panel - held in place with (3) #8 screws and (2) #8 screws.
Disconnect light assembly wire harness (white connector).
9. Remove Air Chute - held in place with one (1) screw.
NOTE: Be careful not to disconnect any wires.
10. Remove Baffle from air chute.
11. Rotate and reinsert baffle into air
chute (as shown) so that the baffle
tabs fit all the way into slots in the
air chute. An audible “click” will
be heard when fully installed.
Light Panel
(3) #8 Screws
(2) #8 Screws
Air Chute
BAFFLE
SLOTS
BAFFLE
TABS
SUPPORT FIN
To Next Page
