12. Re-install air chute, re-connect wire harness, and replace light panel.
NOTE: Be careful not to trap wires between support fin and light panel.
13. Remove appropriate Duct Knockout(s) from top or back of hood.
14. Horizontal Discharge Only: Remove the Plate in front of the horizontal
discharge knockout. Cut the Ties, remove the screw(1) located on top of
unit, lift plate out, and discard plate. DO NOT REMOVE the Metal Strip
held in place with Screws(2).
English
8

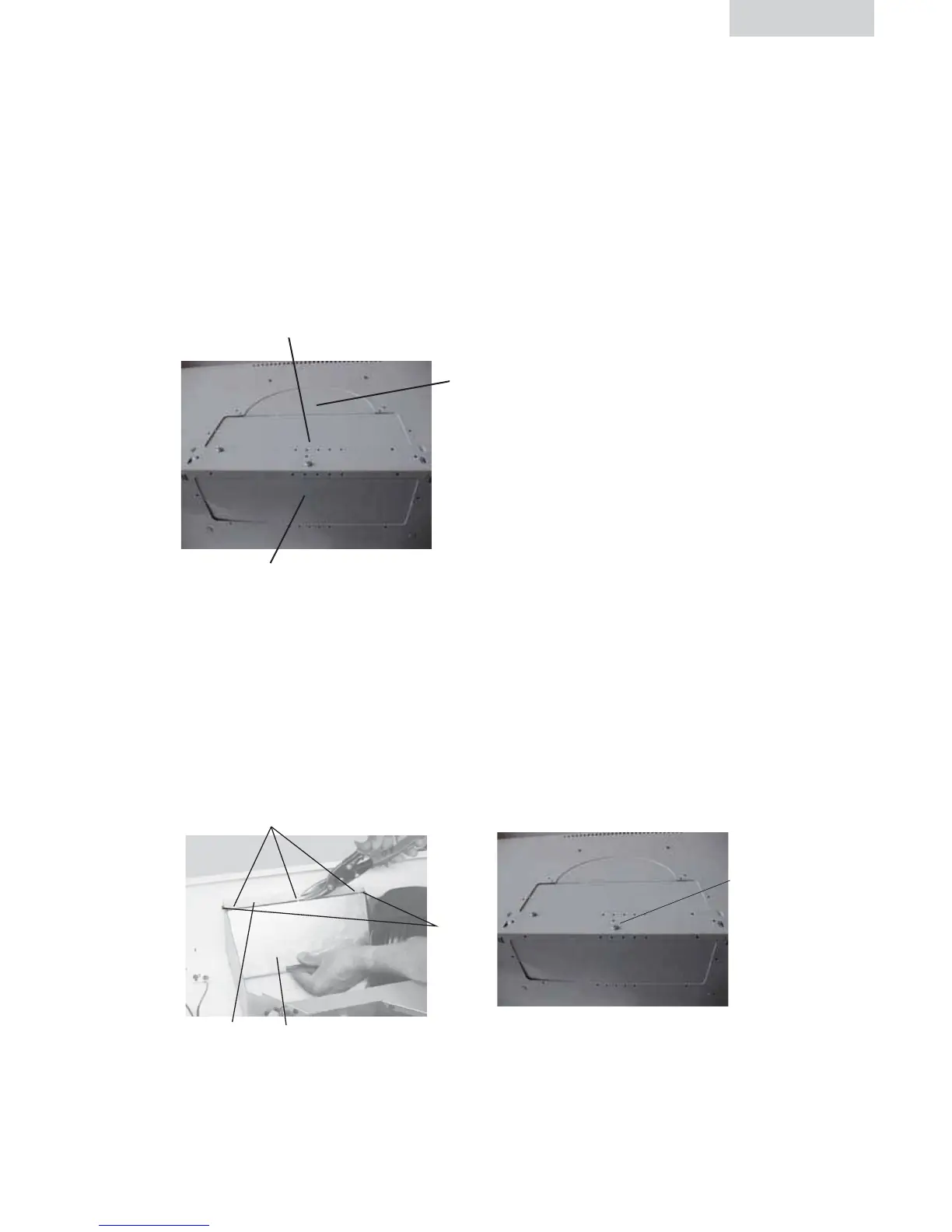

TOP RECTANGULAR DUCT KNOCKOUT
(Remove for 3¼” x 10”Vertical & for 7”Round Discharge)
SEMI-CIRCULAR DUCT KNOCKOUT
(Remove for 7”Round Discharge)
SEMI-CIRCULAR DUCT KNOCKOUT
(Remove for 7”Round Discharge)
TIES
PLATE
METAL STRIP
SCREWS(2)
SCREW(1)
