>a__WcU[S^ <[c >a`V[e[a`Wc
AU242AHBIA, AU242AHBEA, AU282AHBEA, AU28NAHBEA
AU36NAIBEA, AU42NAIBEA, AU52NAIBEA
70

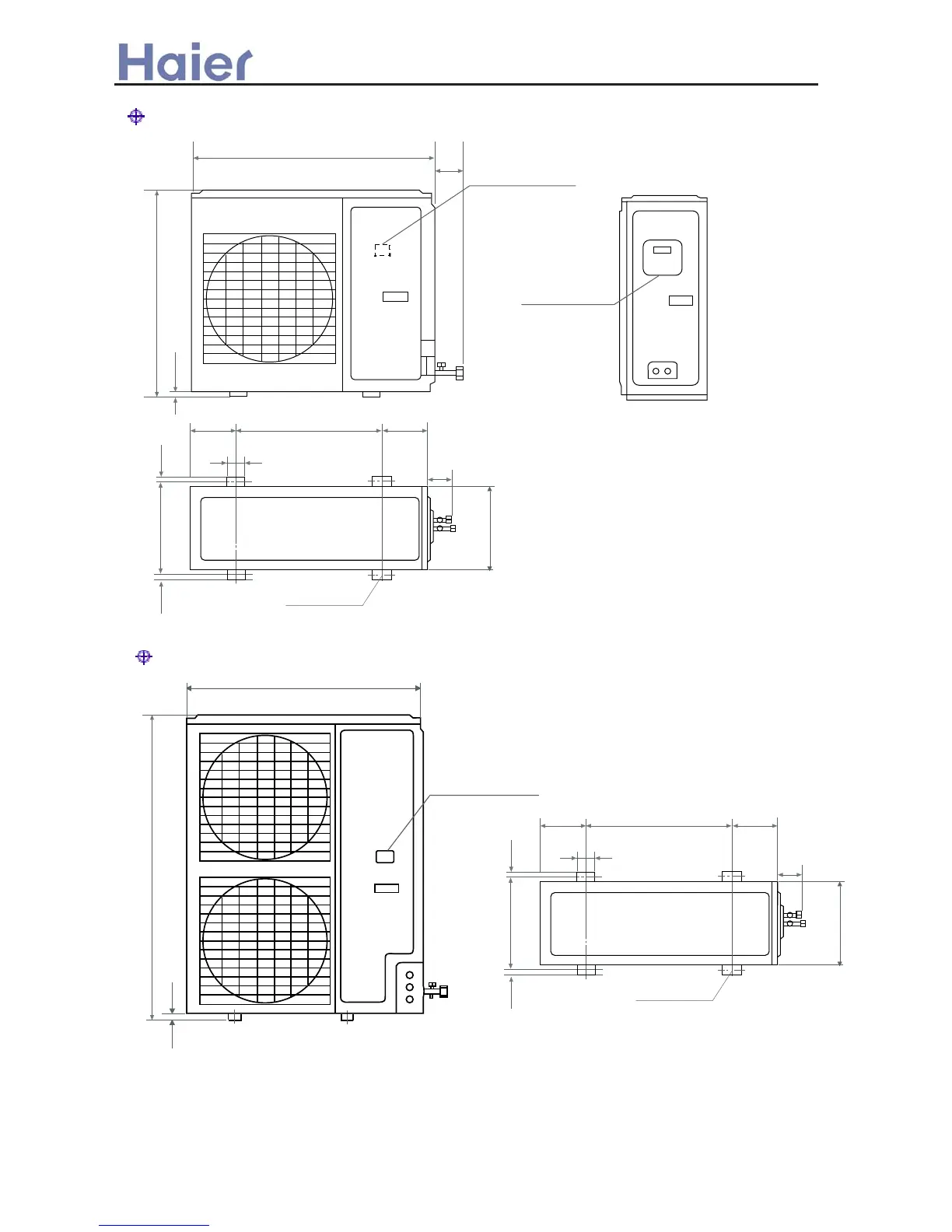

Power Wiring Terminal
Power Wiring
Distribution Hole
948
840
25
184 184
55
Screw Hole
580
70
380
18
340
18
(4xM10)
948
1250
25
Power wiring Terminal
184 184
55
Screw Hole
580
70
380
18
340
18
(4xM10)
