Electric wiring
12
(3) Wiring procedure
1) Remove set screws on the side before taking off the front panel toward
the direction shown in figure.
2) Connect wires to the terminal block correctly and fix the wires with a
wire clamp equipped nearby the terminal block.
3) Route the wires in a proper way and penetrate the wires through the
opening for electric wiring on the side panel.
WARNING
DO NOT CONNECT THE NEUTRAL WIRE TO , OR PHASE.
INTERCONNECTING WIRES MUST BE WIRED ACCORDING TO FIG.1
FIG.2 FIG.3.INCORRECT WIRING CAUSE EQUIPMENT DAMAGE.
N R S
T

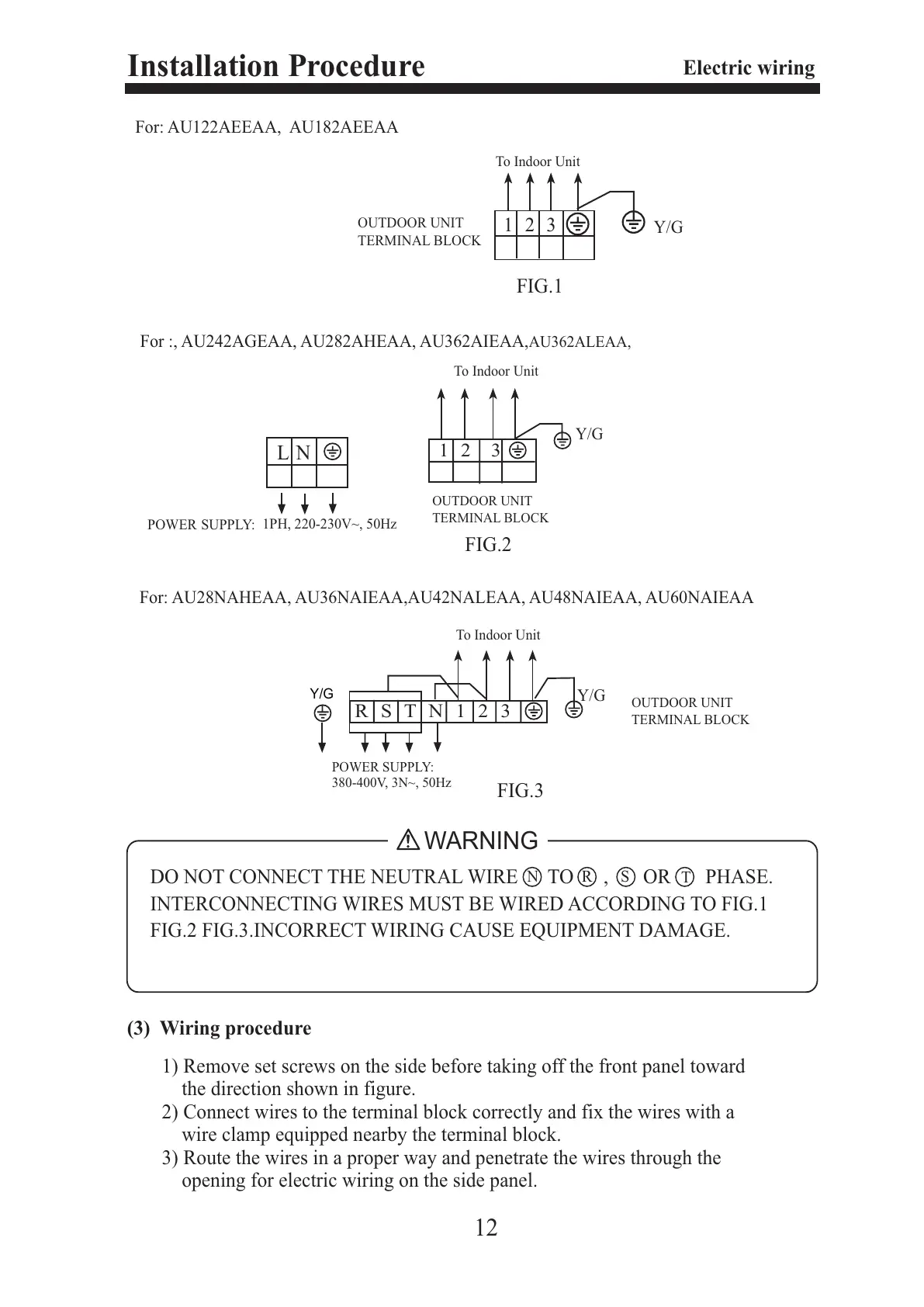

Installation Procedure
For: AU122AEEAA, AU182AEEAA
OUTDOOR UNIT
TERMINAL BLOCK
1 2 3
FIG.1
To Indoor Unit
Y/G
FIG.2
For :, AU242AGEAA, AU282AHEAA, AU362AIEAA,AU362ALEAA,
1PH, 220-230V~, 50Hz
POWER SUPPLY:
OUTDOOR UNIT
TERMINAL BLOCK
L N
1 2 3
Y/G
To Indoor Unit
FIG.3
For: AU28NAHEAA, AU36NAIEAA,AU42NALEAA, AU48NAIEAA, AU60NAIEAA
OUTDOOR UNIT
TERMINAL BLOCK
POWER SUPPLY:
380-400V, 3N~, 50Hz
N 1 2 3
Y/G
To Indoor Unit
R S T
Y/G
