Haier AU182AEEAA - AU242 AGEAA Heating Capacity Curves; AU242 AGEAA Heating Power Input Curves

Commercial Air Conditioner Model: AP*****EAA AU*****EAA
24
-6/-7 -4/-5 -1/-2 1/0 6/5 7/6 12/10 16/15
16/10
6210 6340 6690 7061 7916 8012 8763 9023
18/12
6138 6266 6613 6980 7827 7922 8664 8923
20/14.5
5900 6023 6358 6713 7534 7625 8338 8590
21/15
5749 5868 6195 6542 7347 7436 8130 8378
22/16
5499 5612 5927 6262 7039 7124 7786 8029
24/17
5303 5411 5716 6041 6796 6879 7517 7754
26/18
5250 5357 5659 5982 6731 6813 7444 7681
-6/-7 -4/-5 -1/-2 1/0 6/5 7/6 12/10 16/15
16/10
1852 1878 1964 2048 2219 2234 2507 2517
18/12
1889 1926 2014 2101 2276 2292 2571 2581
20/14.5
1904 1941 2030 2117 2294 2310 2591 2601
21/15
1917 1955 2044 2132 2309 2326 2609 2619
22/16
1976 2014 2106 2197 2380 2398 2688 2698
24/17
2013 2052 2145 2238 2424 2443 2737 2767
26/18
2033 2072 2166 2260 2448 2467 2764 2776

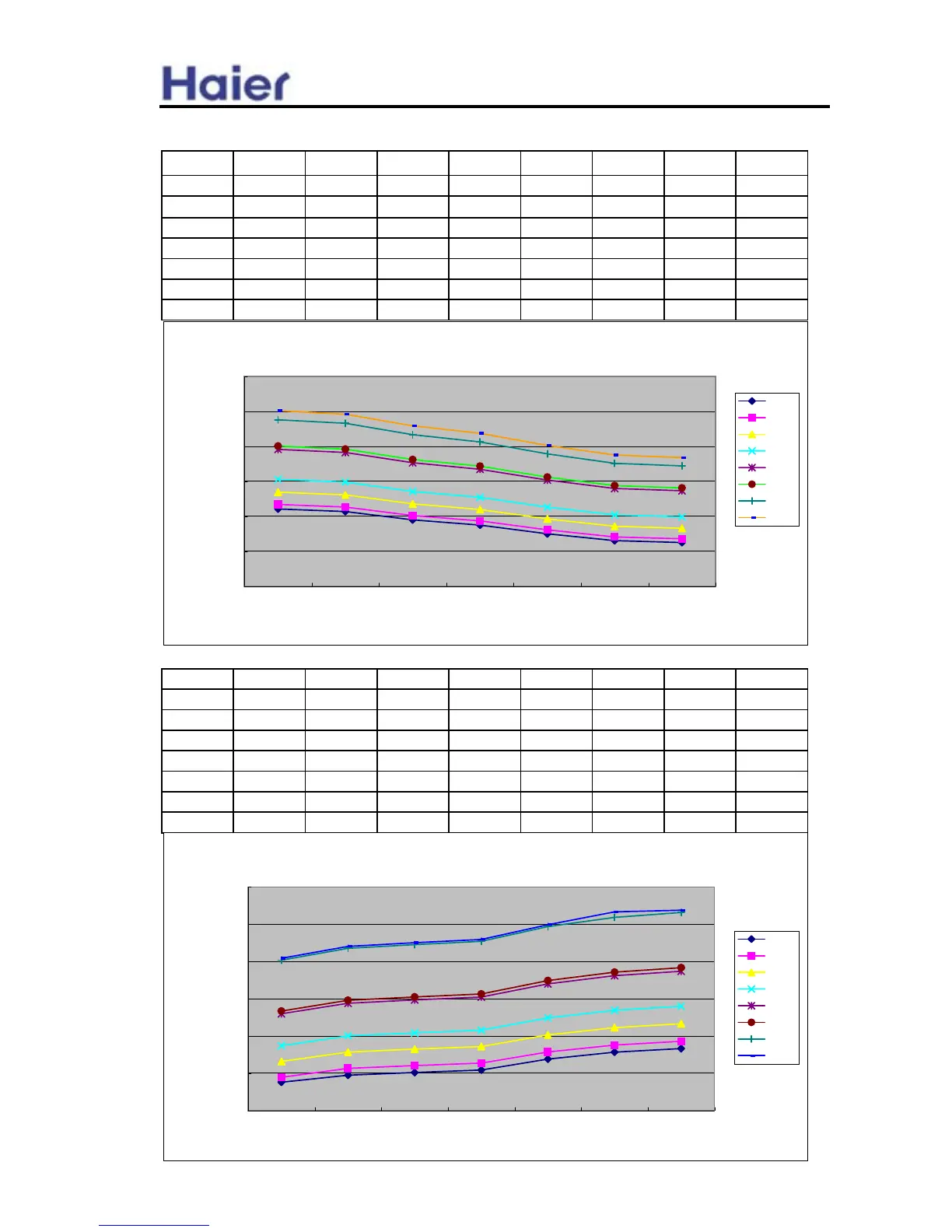

Heating capacity curves
4000
5000
6000
7000
8000
9000
10000
16/10 18/12 20/14.5 21/15 22/16 24/17 26/18
indoor DB/WB
Heating capacity (W)
-6/-7
-4/-5
-1/-2
1/0
6/5
7/6
12/10
16/15
Power input curves in heating mode
1700
1900
2100
2300
2500
2700
2900
16/10 18/12 20/14.5 21/15 22/16 24/17 26/18
indoor DB/WB
Power input (W)
-6/-7
-4/-5
-1/-2
1/0
6/5
7/6
12/10
16/15
AU242AGEAA
