Haier BD-203GAA User Manual

SERVICE MANUAL
Model: BD-203GAA
13
Issue 2009-12-17
Rev.
Ref0912S017V0
Chapter 5 Control and display system

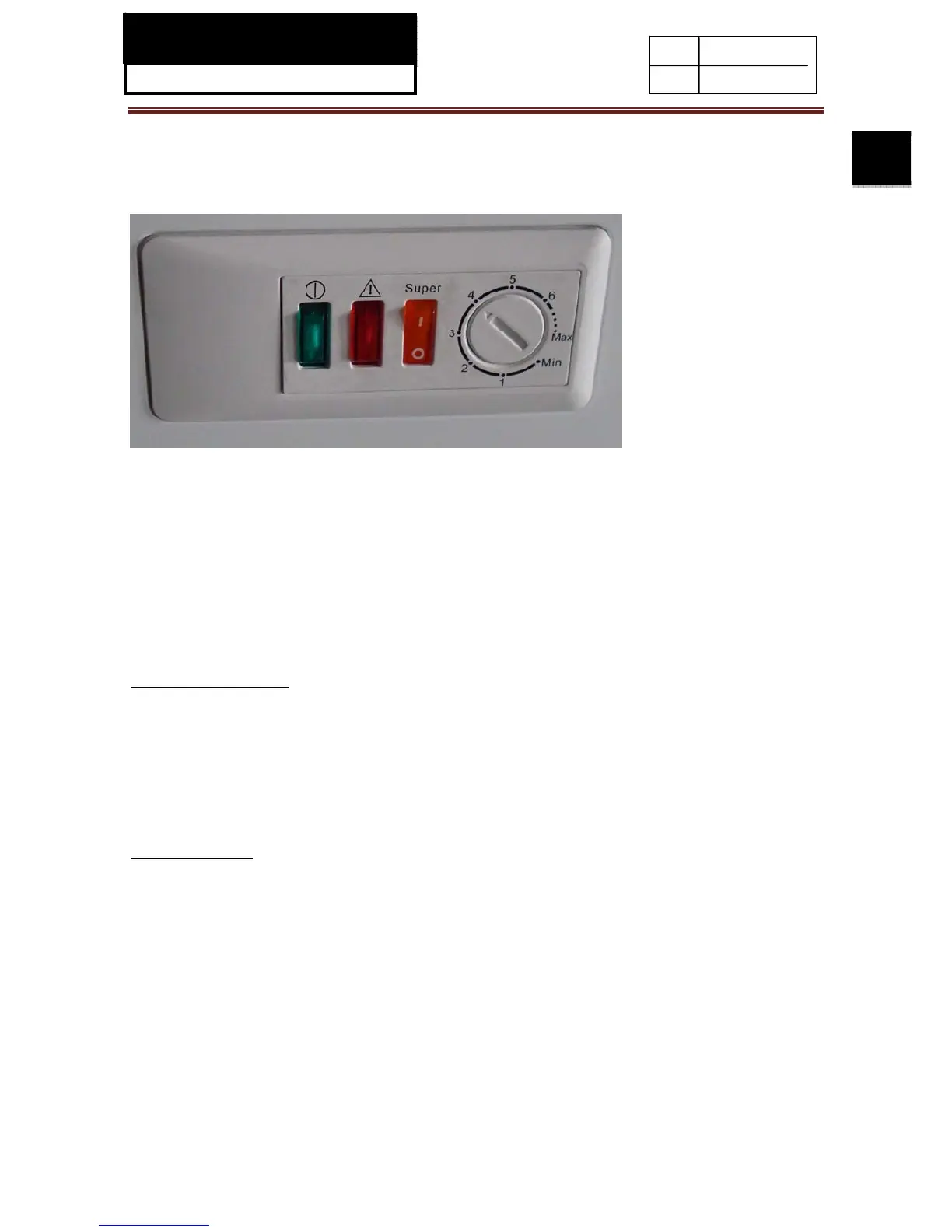

5-1. Control panel
To prevent temperature being accidentally modified, the control is intentionally resistant to turning. To
vary the setting, please use a coin or screwdriver.
1. To switch on: Turn the control to the right adjust temperature to the level you require, between:
Min(slight cooling) and max (Lowest temperature)
If the appliance is equipped with indicator-lights, the following guide explains what is meant by each
light up:
- Green = CONTROL
The appliance is under current and operating
The green control light must always be on when the appliance is connected to the mains and switched
on. It is very important to pay attention to this, because in the event of a power failure, the red and
yellow lights stop operating and do no longer provide a warning.
- Red = ALARM
Interior temperature too high
If the red indicator-light goes on, there may be several reasons for this, namely:
■First start-up of appliance
■Restart after defrosting
■Filling freezer with fresh food
In these cases it is normal that the red indicator-light goes on. It goes off automatically when the
interior temperature reaches approximately –15°C.

Haier BD-203GAA Specifications

General

Annual energy consumption	223 kWh
Door hinge	Up
Product type	Chest freezer
Product color	White
Appliance placement	Freestanding
Freezer number of shelves/baskets	1
Interior light	No
Indication light	Yes
Star rating	4*
Climate class	-
Freezing capacity	18 kg/24h
Freezer net capacity	205 L
Freezer gross capacity	207 L
Storage time during power failure	37 h

Weight and Dimensions

Depth	560 mm
Width	940 mm
Height	845 mm
