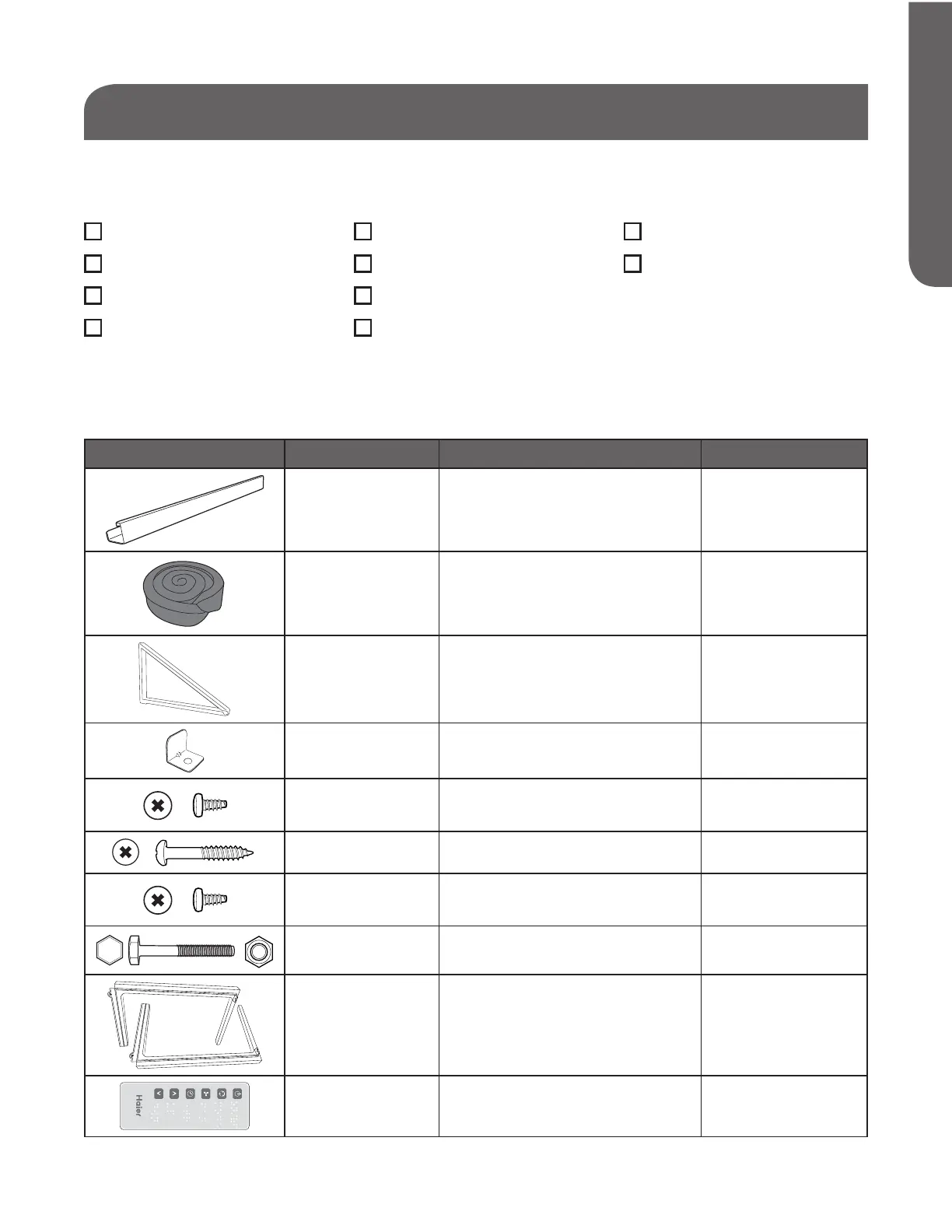

TOOLS AND PARTS
INSTALLATION REQUIREMENTS PAGE 5
Read and follow the instructions provided with any tools listed here.
TOOLS NEEDED
PARTS SUPPLIED:
Check that all parts for your specific air conditioner are included in the parts package.
NOTE: If parts are missing, call Haier Customer Service: 1-877-337-3639.
Phillips head screwdriver
Flat-blade screwdriver
Scissors
Level
Socket wrench & sockets
Tape measure
Cordless drill and 1/8” bit
Pencil
Pliers
Adjustable wrench
IMAGE PART 14,500 BTU, 18,000 BTU 24,000 BTU
Top channel
1 1
Foam seal
1 1
Installation
brackets
2 2
Window lock
bracket
1 1
7/16" self-
tapping screws
12 10
1" wood screws
8 10
7/16" bracket
screws
6 6
2-1/2" bolt and
lock nut
2 2
Side curtain
assembly
2 2
ON/OFF
MODE
SPEED
TIMER
TEMP/TIME
TEMP/TIME
Remote control 1 1
