Haier HCE604TB3 - Cutout Dimensions

Installation a s
Cutout Dimensions

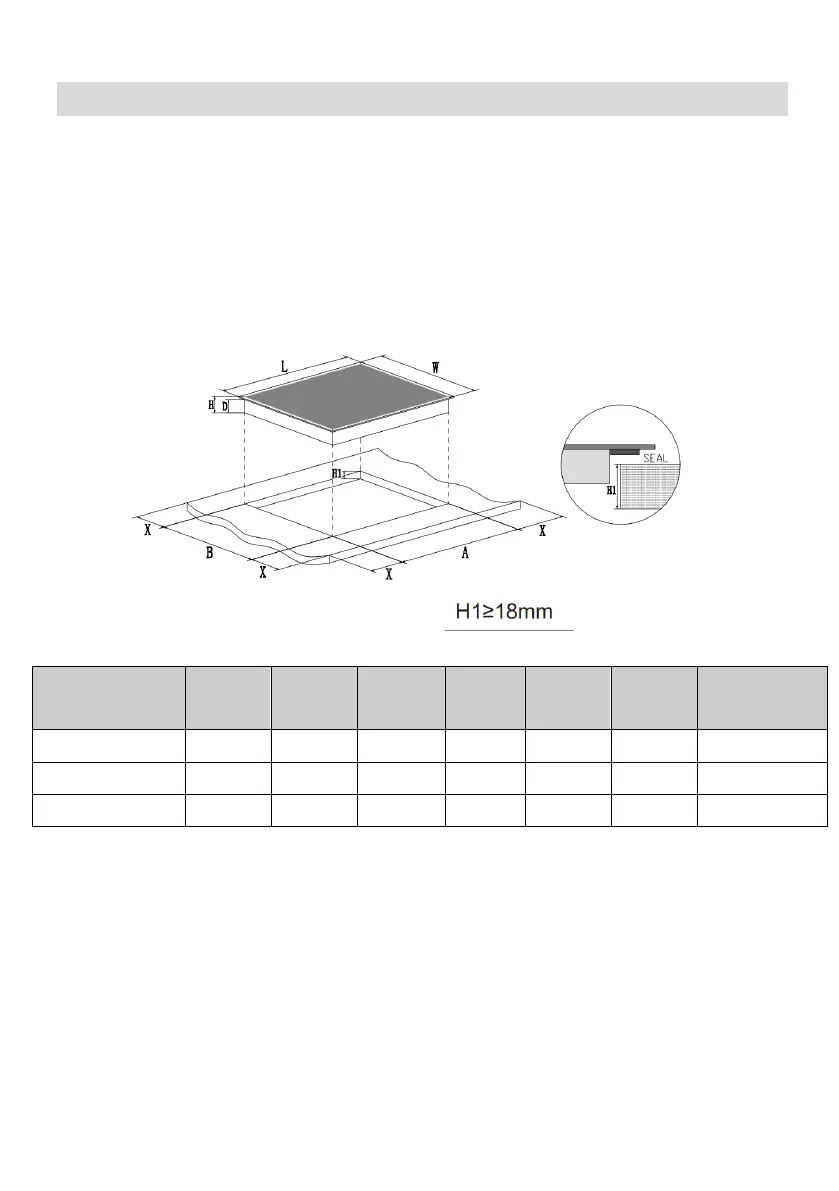

Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm space shall be
preserved around the hole.
Be sure the thickness of the work surface is at least 18 mm. As shown below:
Model
L
(mm)
W
(mm)
H
(mm)
D
(mm)
A
(mm)
B
(mm)
X
(mm)
HCE302TB3
288
520
52
48
268
+5
500
+5
47 min
HCE604TB3
590
520
52
48
560
+5
490
+5
50 min
HCE905TB3
900
520
52
48
870
+5
490
+5
50 min
