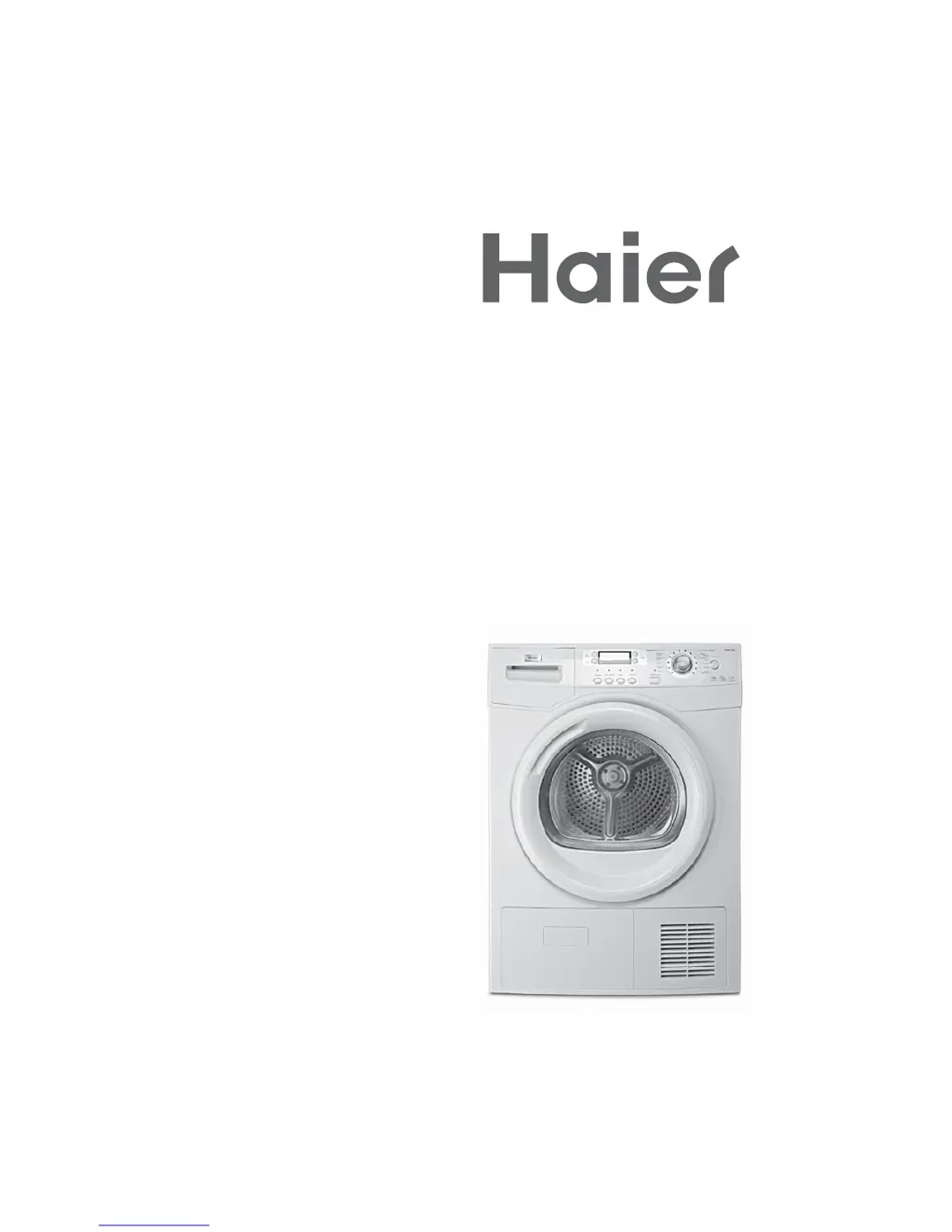

Haier HD70-A82 User Manual

User Manual HD70-A82
HD80-A82
Heat Pump Dryer

Haier HD70-A82 Specifications

General

Control type	Buttons, Rotary
Display type	LCD
Loading type	Front-load
Drum material	Stainless steel
Drying system	Condensation
Product color	White
Built-in display	Yes
Appliance placement	Freestanding
Cycle time	140 min
Noise level	66 dB
Drying class	B
Drum capacity	7 kg
Number of drying programs	12
Delay start (max)	19 h
Energy consumption	1.73 kWh
Annual energy consumption	209 kWh
Package weight	58000 g

Weight and Dimensions

Depth	650 mm
Width	595 mm
Height	845 mm
Weight	51500 g
Depth with door open	320 mm

Summary

Control Panel Overview

Temp Button

Set temperature to the desired level.

Start Delay Button

Press button for delayed start (in 1 hour intervals - up to 19 hours).

Clean Filter Indicators

Filters must be cleaned regularly. See Lint Filter Cleaning section.

Display

Shows remaining time, delay time, and other related information.

Child-lock Indicator

Activate Child-lock by pressing Rack & Cool-Air buttons for 3 sec.

Timer Buttons

Modify the default time using the + and - timer buttons.

Empty Tank Indicator

Water tank must be emptied after each drying cycle.

Delicate Button

Use for delicate fabrics, lowers temperature and lengthens cycle time.

Anti-Crease Button

Lengthens the automatic anticrease phase by 60 minutes.

Rack Button

Press to use the dryer rack in a drying cycle.

Cool Air Button

Use for fabrics that cannot be dried with heat settings.

Start/Pause Button

Press to start a drying cycle or pause it.

Program Knob

Select one of the 12 programs. Respective indicator lights up.

Power Button

Press to switch the tumble dryer on or off.

Signal Function

Activate/deactivate signal with temp & delicate buttons.

Preparing the Dryer

Connect to Power Socket

Connect the tumble dryer to a power socket.

Check Water Tank

Make sure the water tank is empty and properly installed.

Check Lint Filter

Make sure that the lint filter is clean and properly installed.

Check Condenser Filter

Make sure that the condenser filter is clean and properly installed.

Preparing the Laundry

Sort Clothes by Fabric

Sort clothes according to fabric (cotton, synthetics, wool etc.).

Empty Pockets

Empty pockets of all sharp or flammable objects.
