Haier HMV1472BHS Installation Instructions

•
Drill holes for the top support screws.
•
Drill a hole large enough for the power cord to t through.
•
Drill a cutout large enough for the exhaust adapter.
10-23/64

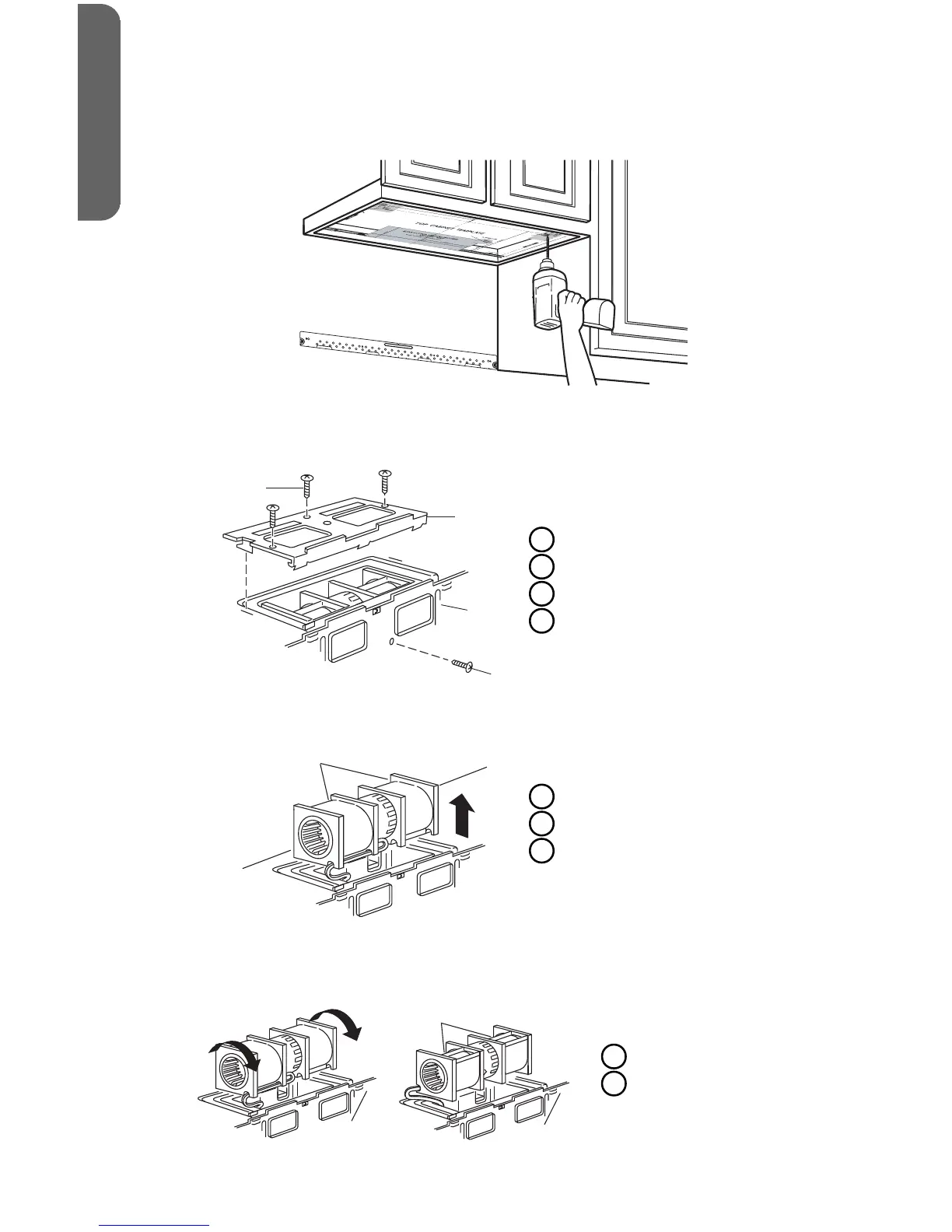

ADAPT BLOWER FOR OUTSIDE REAR EXHAUST
1. Remove and save the screw fastening the blower motor to the microwave.
b
d
c
a
A
Exhaust Plate Screw (3)
B
Exhaust Plate
C
Back of Microwave
D
Blower Motor Screw
2. Carefully pull out the blower unit. The wires will extend far enough to allow you
to adjust the blower unit.
b
a
c
A
End A
B
End B
C
Before: Fan Blade Openings
Facing Forward
3. Roll the blower unit 90°.
Before Rotation
After Rotation
a
a
b
A
Back of Microwave
B
Fan Blade Openings
4. Rotate blower unit counterclockwise 180°.
