Haier HRF520FS User Manual

11
SERVICE MANUAL

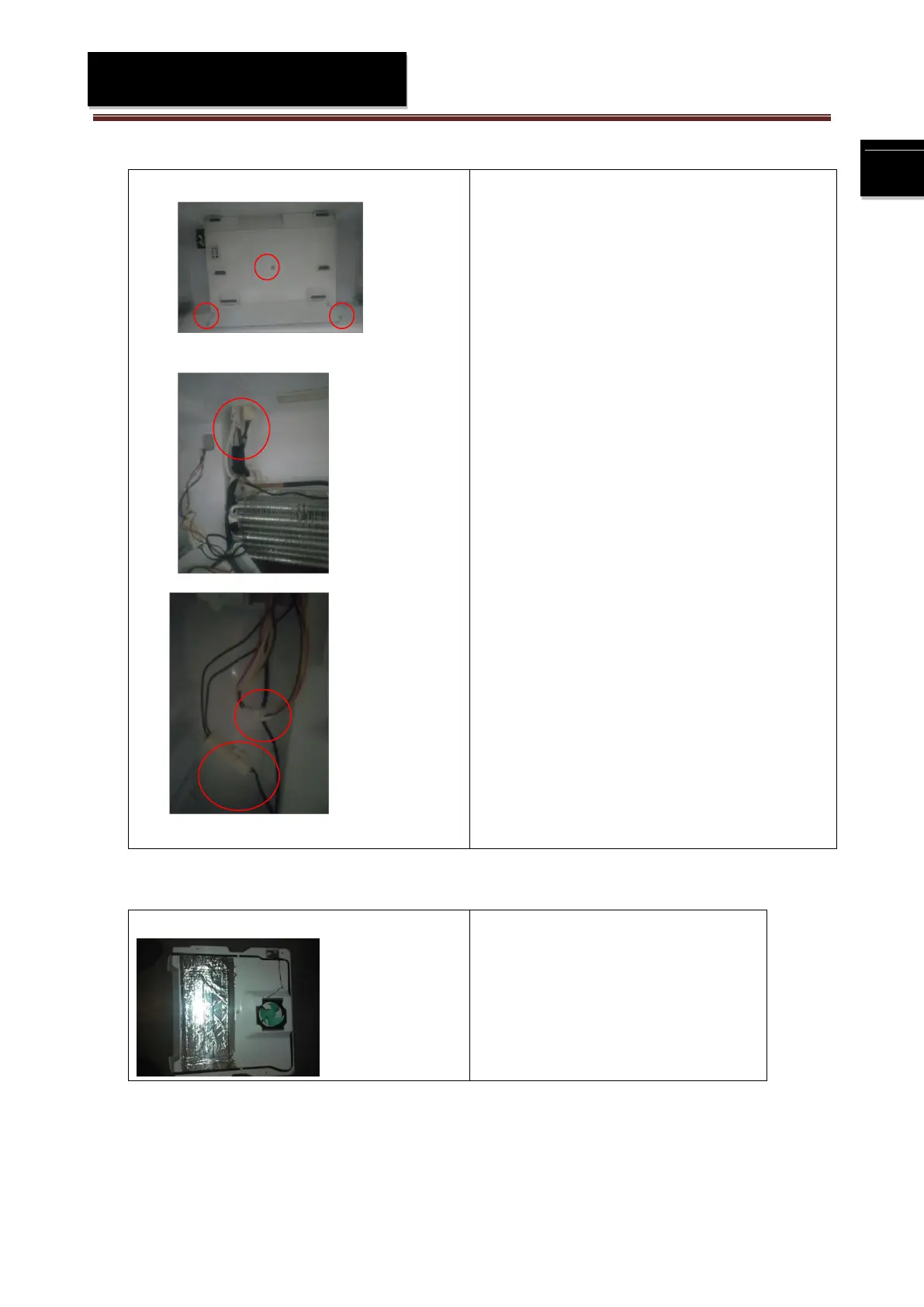

3-1-4 Disassembly of freezer air duct
①
②
①Unscrew five bolts from the freezer air duct
with a cross screwdriver;
② As shown in the figure, pull out the two
terminals those are connected to the freezer air
duct; roll out the freezer air duct from below.
The small terminal is a freezing sensor, and the
big terminal is a fan control cable.
3-1-5 Disassembly of freezer fan
① Unscrew the bolts with a cross
screwdriver. Gently unclench the upper
and lower cover plates of the freezer
air duct;
