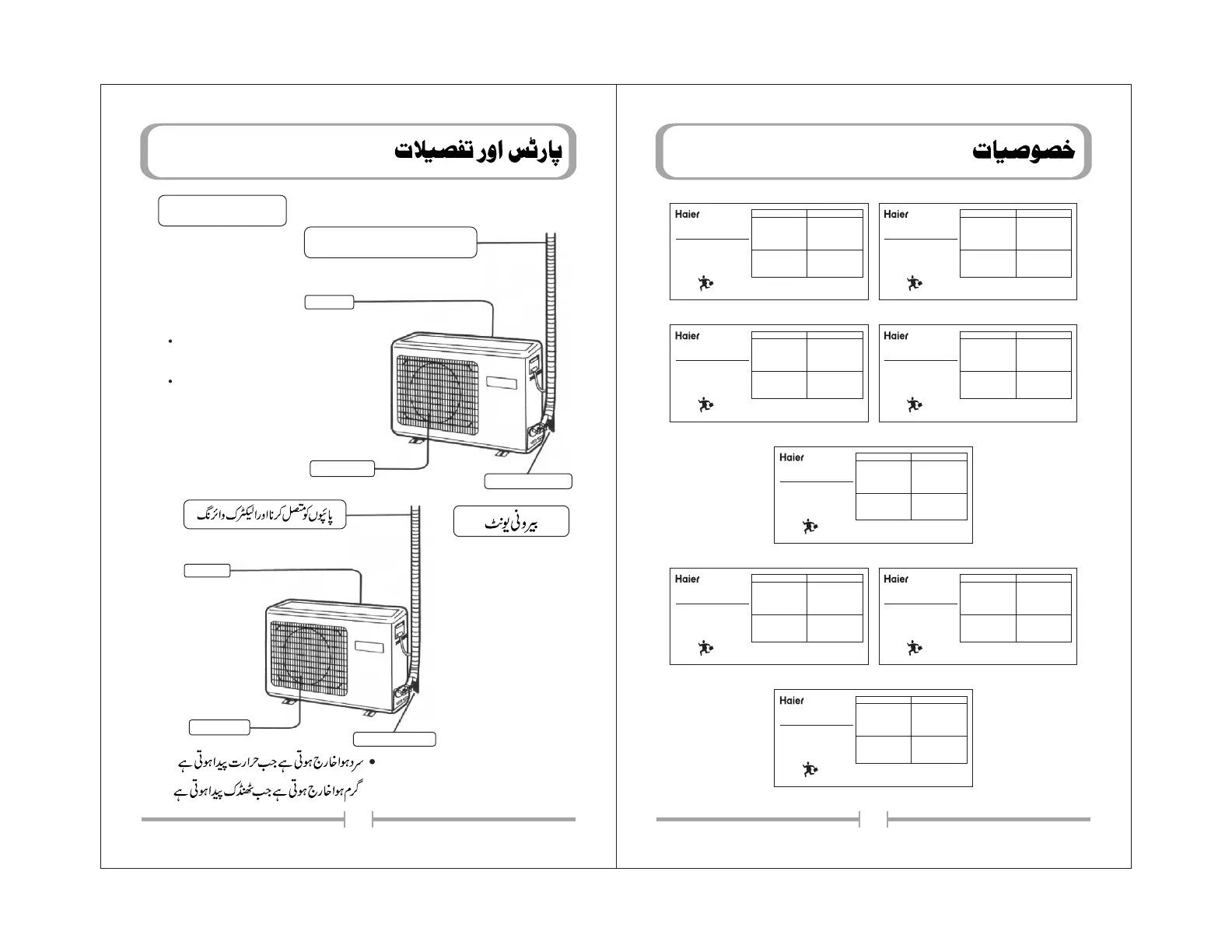

Parts and Function
Outdoor Unit
Cool air exits when
heating produces
Hot air exits when
cooling produces
CONNECTING PIPING AND
ELECTRICAL WIRING
INLET
OUTLET
DRAIN HOSE
INLET
OUTLET
DRAIN HOSE
Specification
Split type room air conditioner
Item Mode
MODEL : HSU-12LTC/012YL(R)
(Thunder Series, 35% Energy Saving)
Power supply
Air volume
Anti-electric shock
Refrigerant (R410a)
Net weight (Indoor/Outdoor)
1PH, 220V~, 50Hz
750m /h
Class I
0.75Kg
10/31Kg
3
Cooling Capacity
Condition Indoor
Condition Outdoor
Power Input
Current
For your best opinion or
any complain, please dial
UA N : 0 42 - 11 1 1- 424 37
e-mail : info@haier.com.pk
Customer Car e
M.T.I
Condition Indoor
Condition Outdoor
Rated Power Input
Rated Current
12000 BTU
D.B./W.B. 27 / 19ºC
D.B./W.B. 35 / 24ºC
1260 W
5.7 A
D.B./W.B. 29 / 19ºC
D.B./W.B. 46 / 24ºC
1485 W
6.8 A
Split type room air conditioner
Item Mode
MODEL : HSU-18LTC/022L(R)
(Thunder Series, 35% Energy Saving)
Power supply
Air volume
Anti-electric shock
Refrigerant (R410a)
Net weight (Indoor/Outdoor)
1PH, 220V~, 50Hz
1150m /h
Class I
1.05Kg
12.7/37.4Kg
3
Cooling Capacity
Condition Indoor
Condition Outdoor
Power Input
Current
For your best opinion or
any complain, please dial
UA N : 0 42 - 11 1 1- 424 37
e-mail : info@haier.com.pk
Customer Car e
M.T.I
Condition Indoor
Condition Outdoor
Rated Power Input
Rated Current
18000 BTU
D.B./W.B. 27 / 19ºC
D.B./W.B. 35 / 24ºC
1700 W
7.7 A
D.B./W.B. 29 / 19ºC
D.B./W.B. 46 / 24ºC
2000 W
9.1 A
Split type room air conditioner
Item Mode
MODEL : HSU-12LNA/022L(W)
(Extra Long Throw, 35% Energy Saving)
Power supply
Air volume
Anti-electric shock
Refrigerant (R410a)
Net weight (Indoor/Outdoor)
1PH, 220V~, 50Hz
750m /h
Class I
0.75Kg
10/31Kg
3
Cooling Capacity
Condition Indoor
Condition Outdoor
Power Input
Current
For your best opinion or
any complain, please dial
UA N : 0 42 - 11 1 1- 424 37
e-mail : info@haier.com.pk
Customer Car e
M.T.I
Condition Indoor
Condition Outdoor
Rated Power Input
Rated Current
12000 BTU
D.B./W.B. 27 / 19ºC
D.B./W.B. 35 / 24ºC
1260 W
5.7 A
D.B./W.B. 29 / 19ºC
D.B./W.B. 46 / 24ºC
1485 W
6.8 A
Split type room air conditioner
Item Mode
MODEL : HSU-18LNA/022L(W)
(Extra Long Throw, 35% Energy Saving)
Power supply
Air volume
Anti-electric shock
Refrigerant (R410a)
Net weight (Indoor/Outdoor)
1PH, 220V~, 50Hz
1150m /h
Class I
1.05Kg
13.4/37.4Kg
3
Cooling Capacity
Condition Indoor
Condition Outdoor
Power Input
Current
For your best opinion or
any complain, please dial
UA N : 0 42 - 11 1 1- 424 37
e-mail : info@haier.com.pk
Customer Car e
M.T.I
Condition Indoor
Condition Outdoor
Rated Power Input
Rated Current
18000 BTU
D.B./W.B. 27 / 19ºC
D.B./W.B. 35 / 24ºC
1700 W
7.7 A
D.B./W.B. 29 / 19ºC
D.B./W.B. 46 / 24ºC
2000 W
9.1 A
Split type room air conditioner
Item Mode
MODEL : HSU-24LTC/012L(R)
(Thunder Series, 35% Energy Saving)
Power supply
Air volume
Anti-electric shock
Refrigerant (R410a)
Net weight (Indoor/Outdoor)
1PH, 220V~, 50Hz
1350m /h
Class I
1.45Kg
14.3/49Kg
3
Cooling Capacity
Condition Indoor
Condition Outdoor
Power Input
Current
For your best opinion or
any complain, please dial
UA N : 0 42 - 11 1 1- 424 37
e-mail : info@haier.com.pk
Customer Car e
M.T.I
Condition Indoor
Condition Outdoor
Rated Power Input
Rated Current
24000 BTU
D.B./W.B. 27 / 19ºC
D.B./W.B. 35 / 24ºC
2473 W
11.2 A
D.B./W.B. 29 / 19ºC
D.B./W.B. 46 / 24ºC
2910 W
13.2 A
Split type room air conditioner
Item Mode
MODEL : HSU-12HTR/012YL(W)
(Heat & Cool)
Power supply
Air volume
Anti-electric shock
Refrigerant (R410a)
Net weight (Indoor/Outdoor)
1PH, 220V~, 50Hz
750m /h
Class I
1.05Kg
10/33Kg
3
Cooling Capacity
Condition Indoor
Condition Outdoor
Power Input
Current
For your best opinion or
any complain, please dial
UA N : 0 42 - 11 1 1- 424 37
e-mail : info@haier.com.pk
Customer Car e
M.T.I
Heating Capacity
Condition Indoor
Condition Outdoor
Power Input
Current
12000 BTU
D.B./W.B. 27 / 19ºC
D.B./W.B. 35 / 24ºC
1190 W
5.4 A
13000 BTU
D.B./W.B. 20 / 15ºC
D.B./W.B. 7 / 6ºC
1140 W
5.2 A
Split type room air conditioner
Item Mode
MODEL : HSU-18HTR/012L(W)
(Heat & Cool)
Power supply
Air volume
Anti-electric shock
Refrigerant (R410a)
Net weight (Indoor/Outdoor)
1PH, 220V~, 50Hz
1150m /h
Class I
1.65Kg
12/39Kg
3
Cooling Capacity
Condition Indoor
Condition Outdoor
Power Input
Current
For your best opinion or
any complain, please dial
UA N : 0 42 - 11 1 1- 424 37
e-mail : info@haier.com.pk
Customer Car e
M.T.I
Heating Capacity
Condition Indoor
Condition Outdoor
Power Input
Current
18000 BTU
D.B./W.B. 27 / 19ºC
D.B./W.B. 35 / 24ºC
1760 W
8.0 A
19000 BTU
D.B./W.B. 20 / 15ºC
D.B./W.B. 7 / 6ºC
1520 W
6.9 A
Split type room air conditioner
Item Mode
MODEL : HSU-24HTR/012L(W)
(Heat & Cool)
Power supply
Air volume
Anti-electric shock
Refrigerant (R410a)
Net weight (Indoor/Outdoor)
1PH, 220V~, 50Hz
1350m /h
Class I
2.1Kg
14.3/53Kg
3
Cooling Capacity
Condition Indoor
Condition Outdoor
Power Input
Current
For your best opinion or
any complain, please dial
UA N : 0 42 - 11 1 1- 424 37
e-mail : info@haier.com.pk
Customer Car e
M.T.I
Heating Capacity
Condition Indoor
Condition Outdoor
Power Input
Current
24000 BTU
D.B./W.B. 27 / 19ºC
D.B./W.B. 35 / 24ºC
2800 W
12.7 A
25000 BTU
D.B./W.B. 20 / 15ºC
D.B./W.B. 7 / 6ºC
2010 W
9.1 A
