INSTALLATION
AV EQUIPMENT (L19B1120)
There is a composite (AV) video input and a USB port located on the side of the TV. You can use this AV input to conveniently
connect devices that you may frequently connect and disconnect, such as a camcorder.
There are two HDMI ports located on the back of your TV. You can connect a Blu-ray player, DVD player, or other video
equipment through these ports.
There is one component (Y, Pb, Pr) and one composite (AV) video input located on the back of your TV. You can connect
a VCR, cable box, or other video equipment to these jacks.

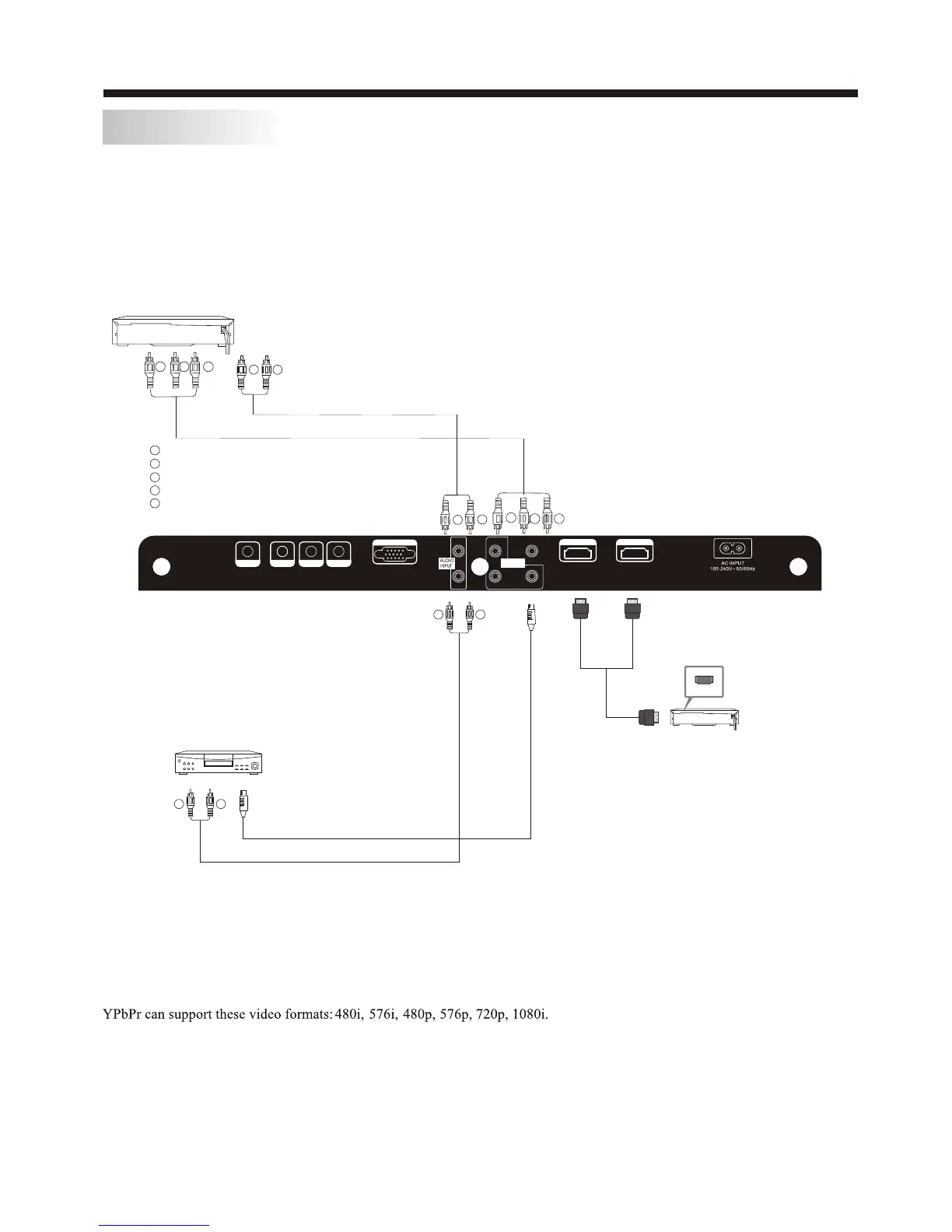

Please see the diagram below. You may also need to refer to the owner's manual of the device that you are trying to connect.
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
R
W
R
To audio outputs
VIDEO EQUIPMENT
TO VIDEO
output
W R
W R
G
B
R
G
R
B
Blue(Pb)
Green(Y)
B
G
VIDEO EQUIPMENT with YPbPr
W
R
HDMI
RF INPUT
COMPONENT
INPUT
Y
Pb
AV
Pr
R
L
VGA INPUT
HDMI 1 HDMI 2
HEADPHONE
COAXIAL
PC AUDIO
INPUT
