7. Headphone Output
8. PC Audio Input
9. Coaxial
10. Antenna Socket
11. AC Power Socket
1. HDMI1 Input
2. HDMI2 Input
3. Composite Video Input
4. Component Video (YPbPr) Input
5. Audio Input
6. VGA Port (PC Input)
AC INPUT
100-240V~50/60Hz
RF INPUT
HEADPHONE
PC AUDIO
INPUT
COAXIAL
VGA INPUT
Pr Pb
YAV
COMPONENT
INPUT
L
R
AUDIO
INPUT
HDMI 2 HDMI 1
1 2
3
4 5
6
7
8
9
10 11
-5-

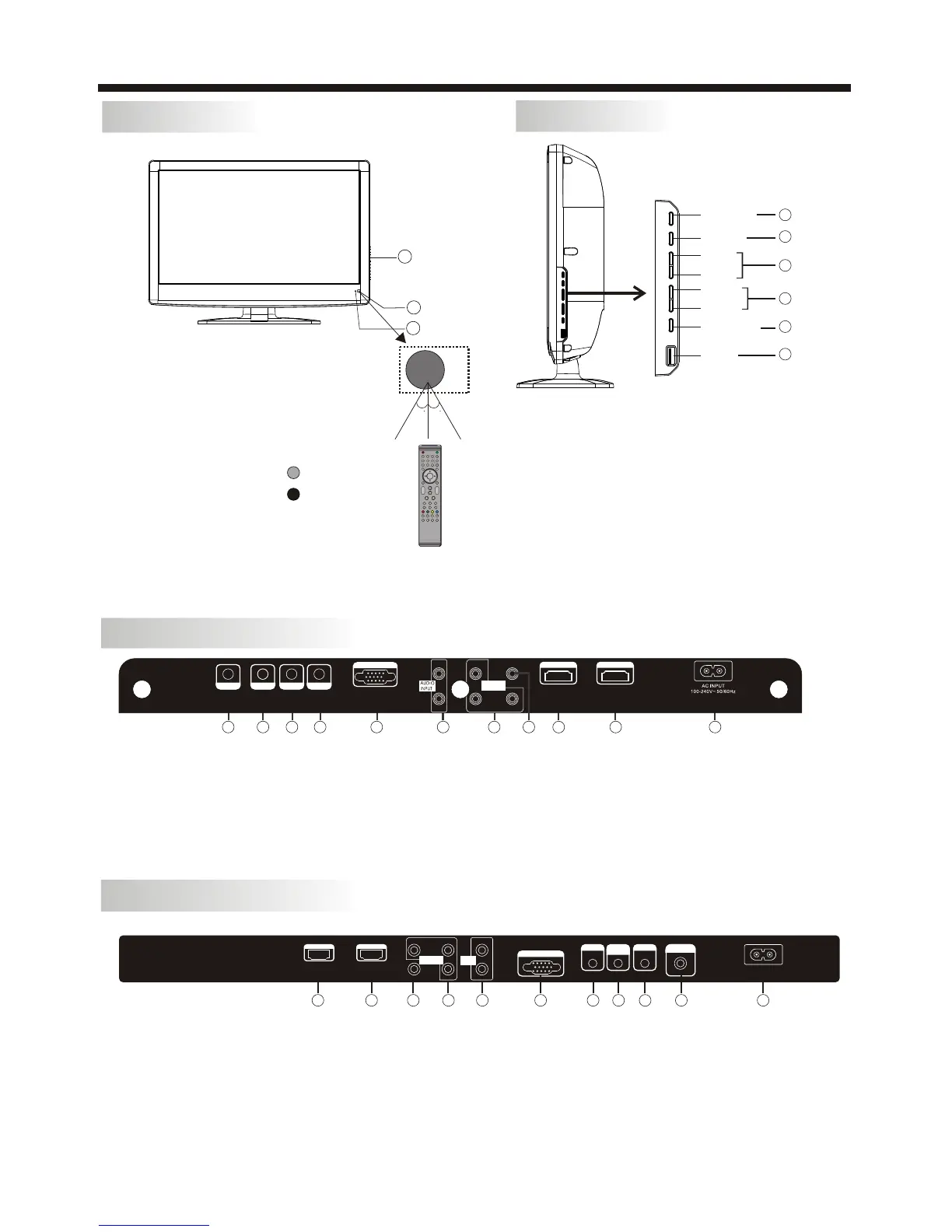

INSTALLATION
Front panel
REAR AV INPUT/OUTPUT (L19B1120)
1: Remote control sensor.
2: Indicator LED: GREEN POWER ON.
RED STANDBY.
3:
Side panel keys
1. SOURCE: Display the input source menu.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode, press
"CH+" or "CH-" to select items in standby mode, press
"CH+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that you
selected.
5. STANDBY: Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
6. USB INPUT
Side panel
1 2 3
4 5 6
7 8 9 0
+
CH
_
+
_
VOL
30 30
3
1
2
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
USB
1
2
3
4
5
6
7. Component Video (YPbPr) Input
8. Composite Video Input
9. HDMI2 Input
10. HDMI1 Input
11. AC Power Socket
1. Antenna Socket
2. Coaxial
3. PC Audio Input
4. Headphone Output
5. VGA Port (PC Input)
6. Audio Input
REAR AV INPUT/OUTPUT (L22B1120)
1 2
3
4 5
6
7
9
10 11
RF INPUT
COMPONENT
INPUT
Y
Pb
AV
Pr
R
L
VGA INPUT
HDMI 1 HDMI 2
HEADPHONE
COAXIAL
PC AUDIO
INPUT
8
