Haier LE32K6000T User Manual

INSTALLATION
-9-

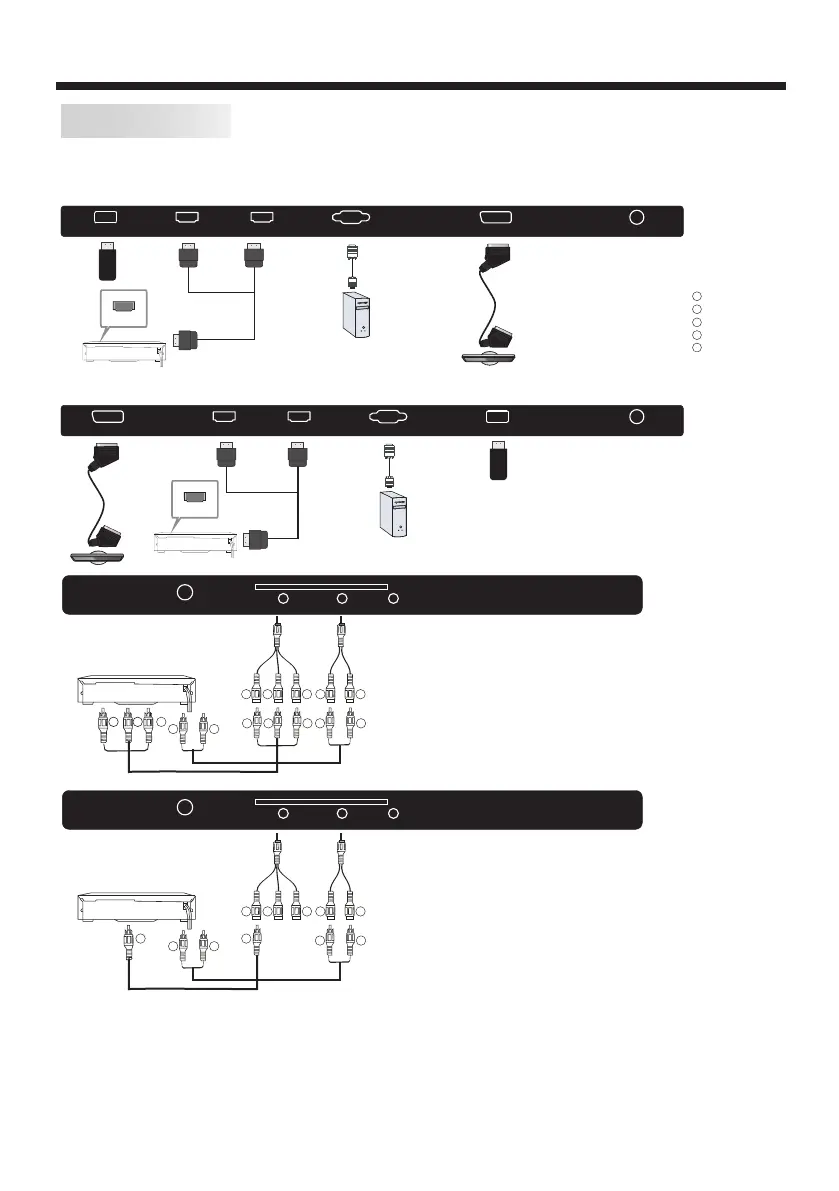

This TV provides one group of AV, one group of YPbPr for convenient connection to VCR, DVD or
other video equipment. Please refer to the owner's manual of the equipment to be connected as well.
You can use the input terminals on TV set rear as follows.
AV EQUIPMENT
It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc...
YPbPr can support these video fomats: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p.
Note: 1.VIDEO and YPbPr share one audio channel.
2.When HDMI port get DVI signal, the " Audio" channel is changed to receive the audio for HDMI port.
3.Sometimes it will not support in different device because the device supplys nonstandard signal.
AV
HDMI
G
B
R
G
B
R
VIDEO EQUIPMENT with YPbPr
G
B
R
Red (audio R)
White(audio L)
Red(Pr or Cr)
R
W
R
Blue(Pb or Cb)
Green(Y,VIDEO)
B
G
USB
HDMI1(ARC)
VGA
HDMI2
COAXIAL
SCART
(32")
HDMI
USB
HDMI1(ARC)
VGA
HDMI2
COAXIAL
SCART
(40"/43")
COMMON INTERFACE (CI)
HEADPHONE
VIDEO/YPbPr AUDIORF
w
R
w
R
w
R
COMMON INTERFACE (CI)
HEADPHONE
VIDEO/YPbPr AUDIORF
G
B
R
VIDEO EQUIPMENT
w
R
w
R
w
R
GG
TO AUDI O
OUTPUTS
TO VIDE O
OUTPUT
