Haier LE39B50 User Manual

-5-

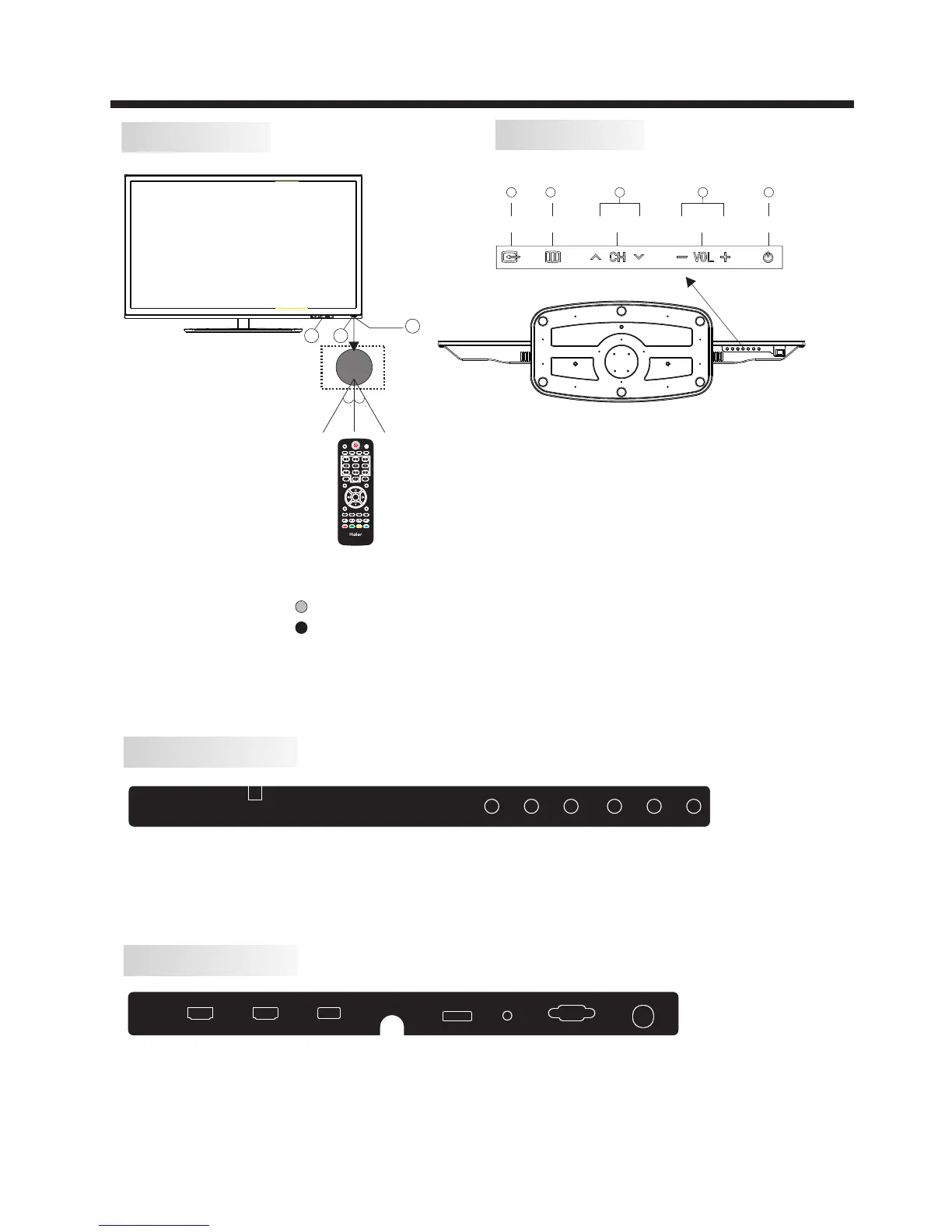

REAR AV Connections
All the terminals are(from left to right):
AC POWER SOURCE, AV INPUT, YPbPr INPUT.
Note: VIDEO and YPbPr share one audio channel.
REAR AV Connections(SIDE)
All the terminals are(from left to right):
HDMI2,HDMI1,USB,AV OUT/AV2 IN,PC AUDIO, VGA,RF
Note: When HDMI port get DVI signal ,the audio signal receives from the PC
Audio channel.
INSTALLATION
Front panel
KEYBOARD
1: Remote control sensor.
2: Indicator LED: BLUE POWER ON.
RED STANDBY.
3: Key board
1．SOURCE：
Display the input source menu.
2．MENU：
Display main MENU.
3．CH+/CH-
In TV mode，press“CH+”or“CH-”to change
the channel up and down.
In MENU mode, press “CH+”or“CH-”to select
items.
4．VOL+/VOL-
Adjust sound level.
In MENU mode, press“VOL+”or“VOL-”to
adjust the item that you selected.
5. STANDBY
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to STANDBY.
30 30
SOURCE
MUTE
PICTURE AUDIO
ASPECT SLEEP
VOL- VOL+
CH- CH+
CH.LIST DISPLAY
EXIT
RECALL
EPG FAV
OK
MENU
AC-INPUT
100-2 40V~50/60Hz
Y
Pb
PrVIDEO L R
HDMI2 HDMI1 USB
AV OUT/AV2 IN PC AUDIO
VGA RF
1
23
SOURCE
1
MENU
CH+ CH- VOL+ STANDBYVOL-
2 3 4 5
