AV EQUIPMENT
The television's inputs can be connected to the following types of equipment: VCR, multi disc player,
DVD, camcorder, video game or stereo system, etc.....
YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i.

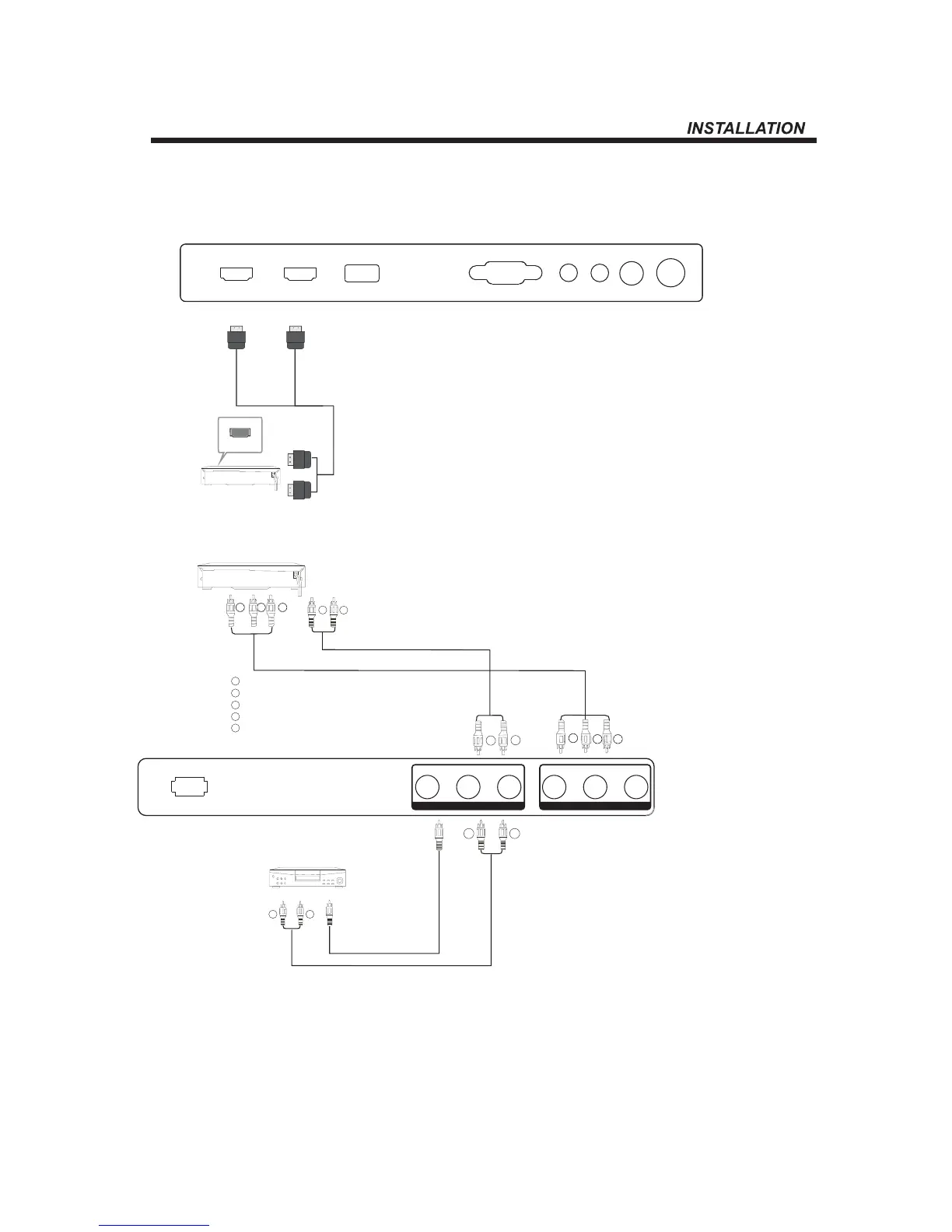

You can use the input terminals on TV set rear as follows.
HDMI
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
R
W R
G B R
Blue(Pb)
Green(Y)
B
G
VIDEO EQUIPMENT with YPbPr
W
R
G
B
R
W
R
W R
TO AUDIO OUTPUTS
VIDEO EQUIPMENT
TO VIDEO
OUTPUTS
HDMI1 HDMI2
USB
VGA
HEADPHONE
RF
PC AUDIO
COAXIAL
YPbPr
VIDEO
AC-INPUT
100-240V~50/60Hz
LR
COMPOSITE
COMPONENT
