CONTROL AND DISPLAY SYSTEM

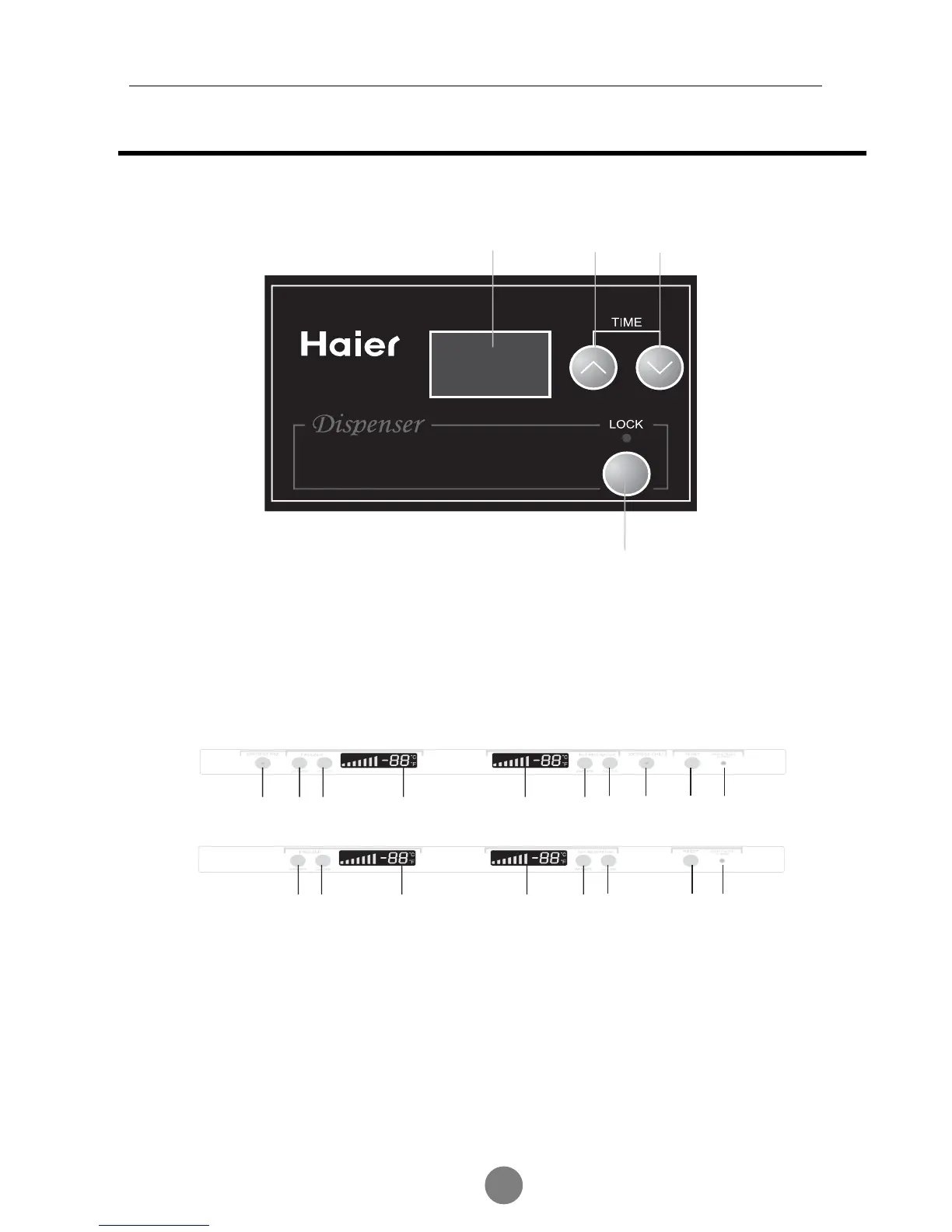

The door body vision controlling screen(just for PBFS21/PRFS25 series)
Function adjustment and control principle
DAB
C
A …………Hour Button B …………Minute Button
C………… Lock Button D……………Time Area
E
K
L
M N
K
M N
E …………Quick-refrigerant button F, G………Deepfreeze fridge temperature adjusting button
H ………deepfreeze fridge temperature indicating area I……..………Chill-cold storage temperature indicating area
J.K…...…chill-cold storage temperature adjusting button L…….…...………Chill-cold storage quick-deepfreeze fridge
0«««««««««««««:DWHU¿OWHUUHVHWEXWWRQ1««««««««««««:DWHU¿OWHULQGLFDWLQJODPS
FG
H I J
F
G
H
I
J
