36

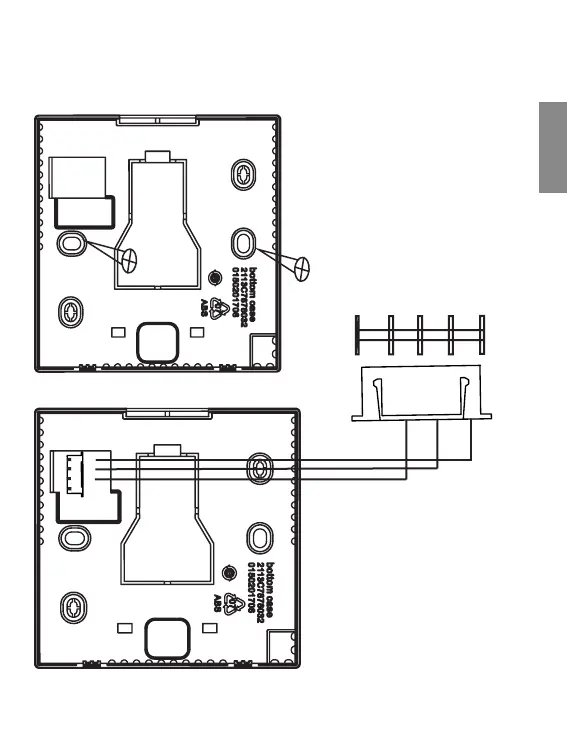

2. Fix the back cover to base box. Then connect the
communication wire to wired controller. Put the front board of
wired controller to back cover. Finish the installation.
D
C
B A
A
B
C
D
A
B
C
Please connect the red terminal
of communication wire to indoor
unit PCB. There is a shielded
wire at the red terminal part,
which should be linked to
indoor unit ground wire.
Wired Controller terminal (white)
yellow
yellow
red
red
green
green
To Next Page
