12
Check that the contents are complete and check for any
possible transport damage before use.
Remove the packaging material.
Packaging material is not a children’s toy;
there is a risk of suffocation if not handled
properly.
3. Technical information
4. Scope of delivery
Technical information and product-specific specifications are
found on the staircase platform label [I] directly on the product.

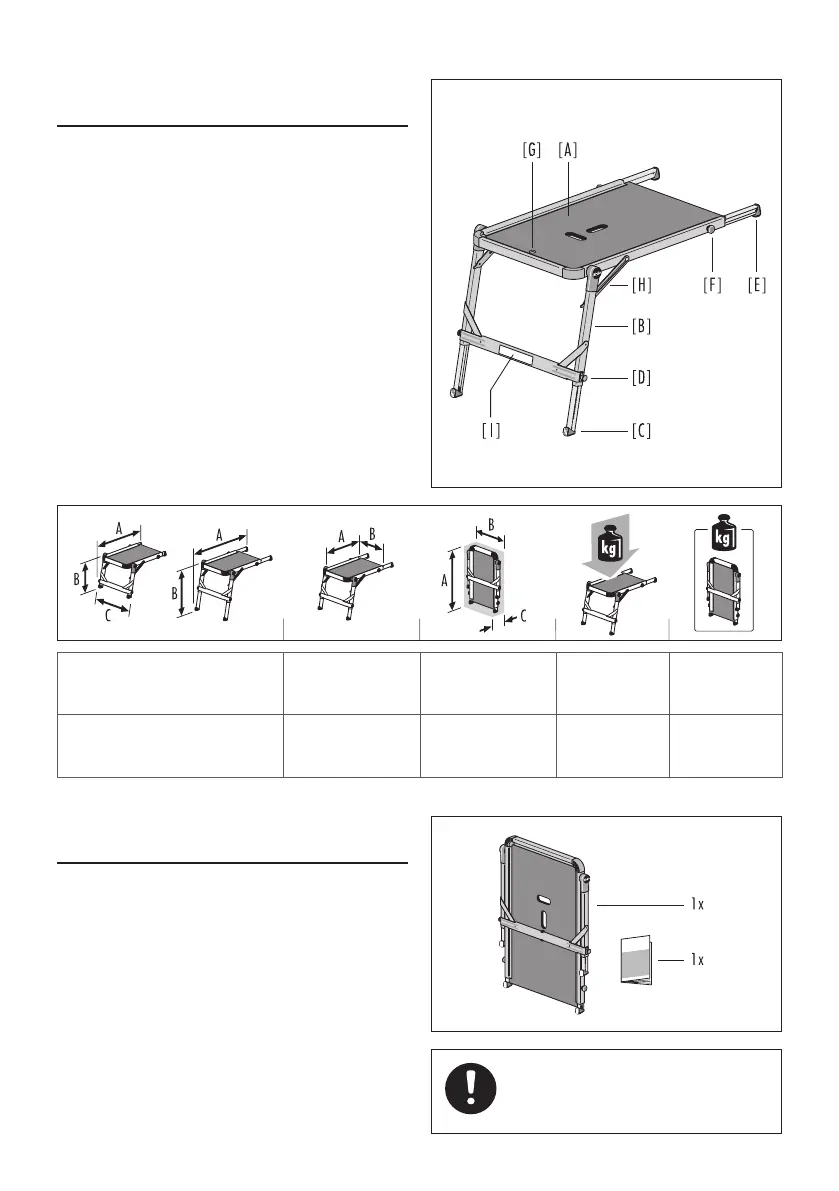

Staircase platform TP1
[A] Aluminium frame with platform
[B] Fold-out support frame
[C] Vertical support rail with foot
[D] Locking bolt
[E] Horizontal extension bar with foot
[F] Locking screw
[G] Level (horizontal position control indicator)
[H] Support frame locking mechanism
[I] Staircase platform label
1 x Staircase platform TP1
1 x Use and operating instructions
The staircase platform is delivered completely assembled; no
actions are necessary for assembly.
A = 1,00 - 1,20 m
B = 0,54 - 0,80 m
C = 0,75 m
A = 0,90 m
B = 0,57 m
A = 0,93 m
B = 0,75 m
C = 0,06 m
150 kg 9,0 kg
A = 39.37“ - 47.24“
B = 21.26“ - 31.50“
C = 29.53“
A = 35.43“
B = 22.44“
A = 36.61“
B = 29.53“
C = 2.36“
330 lbs. 19,8 lbs.
