Hakko Electronics 394-01 - Nozzle and Pad Selection

No.

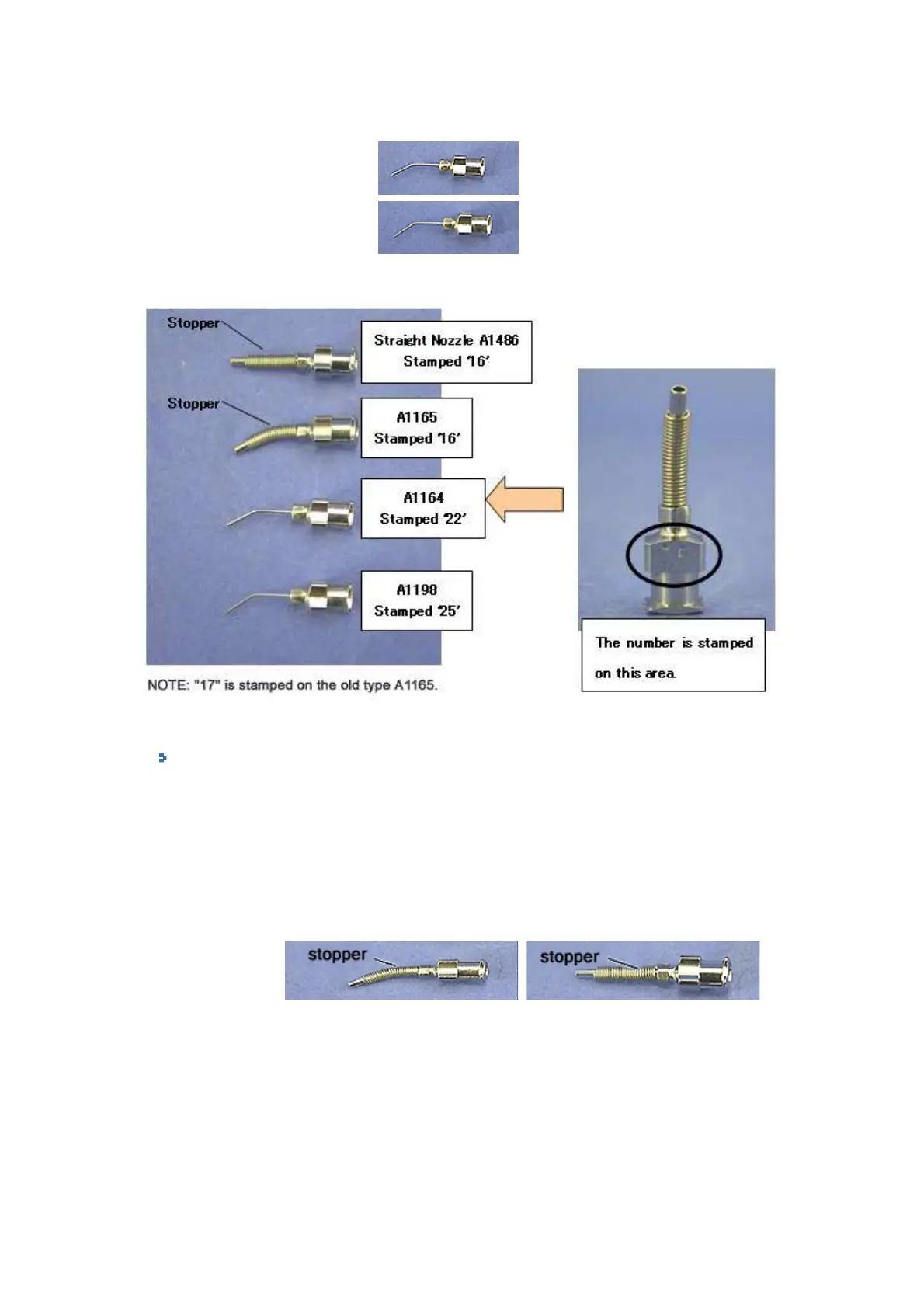

A1164 Bent nozzle /0.4mm
(OD 0.7mm)
22 Chip resistors, other
tiny components
A1198 Bent nozzle
/0.26mm
(OD 0.5mm)
25 Usable for 0603
chip
*Only these 2 shapes are avilable for single use.
Use Nozzle with Pad
Nozzle
Part No. A1165 A1486
Name/
Description
Bent nozzle /1.1mm Straight nozzle /1.1mm
Outside
Diameter
1.65mm 1.65mm
Figure
+ + + +
Pad
Part No. A1166 A1312 A1167 A1311 A1166 A1312 A1167 A1311
Name/
Description
Pad
/o3
Pad
/o5
Pad
/o7
Pad
/o10
Pad
/o3
Pad
/o5
Pad
/o7
Pad
/o10
