4

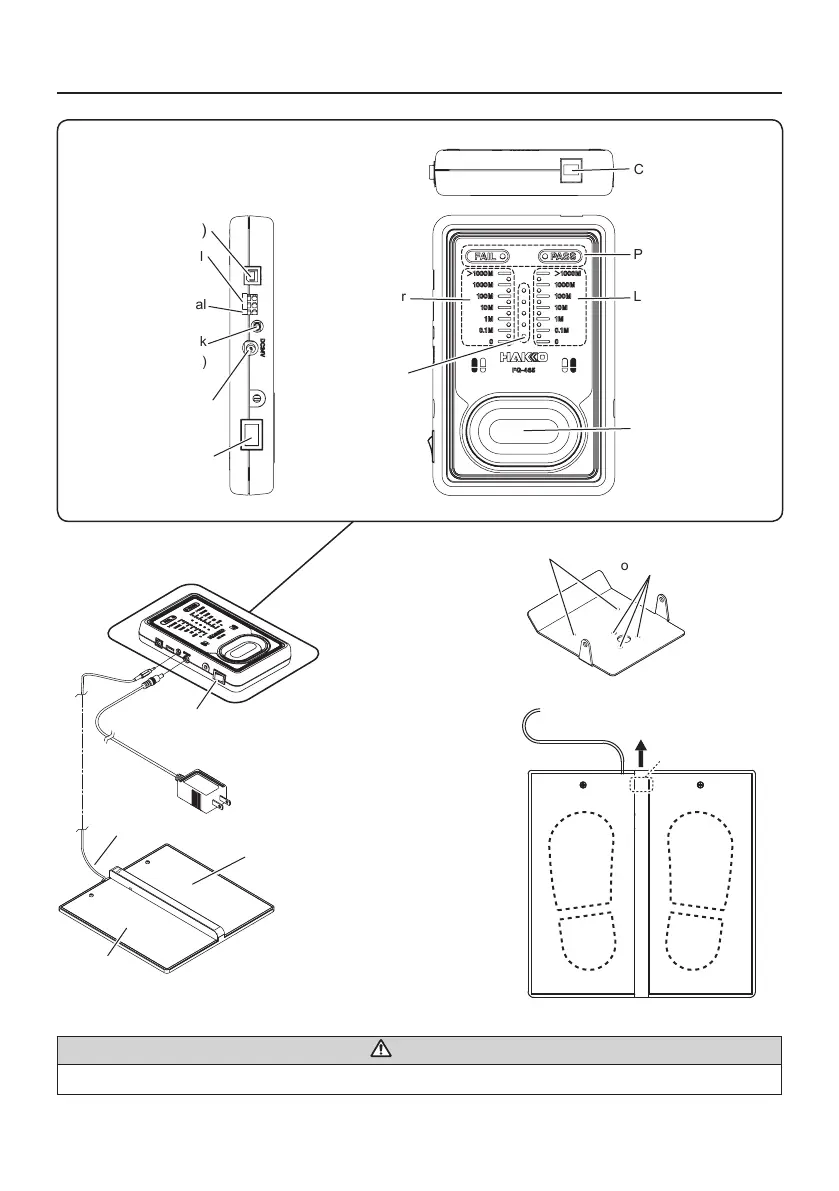

4. Names of Parts
Terminal for external
output (No.1, 2)*
GND terminal
(No.3)
Jack
(for test plate)
Jack
(for AC adapter)
Power switch
USB port
(Type B)
Mounting holes for
optional stand
Wall mounting holes
Installation base
UP
Connection cord
"UP" mark at
toes
Left foot Right foot
* See "External output (P. 8)."
UP
Power switch
Connection
cord
Test plate
(left foot)
Test plate
(right foot)
Pad
Pass range
indicator
Connection port for
FG-470 wrist strap
tester
(w/ dust cover)
Level indicator
(left foot)
Level indicator
(right foot)
Pass/Fail indicator
CAUTION
When installing the test plate, make sure that the part marked "UP" is positioned at the toes.
