1. Slide the handle cover (2) toward the cord and remove the screw (1)
securing the heating element.
2. Turn the nut (3) counterclockwise and remove it.
3. Remove the tip (4).
4. Pull both the heating element (5) and the cord toward the tip of the
iron and out of the handle (6).
Measure the resistance values at the sensor and the heating element
of the terminal board.
The resistance value should be the same as for the 907, 908.
To replace the heating element, refer to the instructions included with
the replacement part.

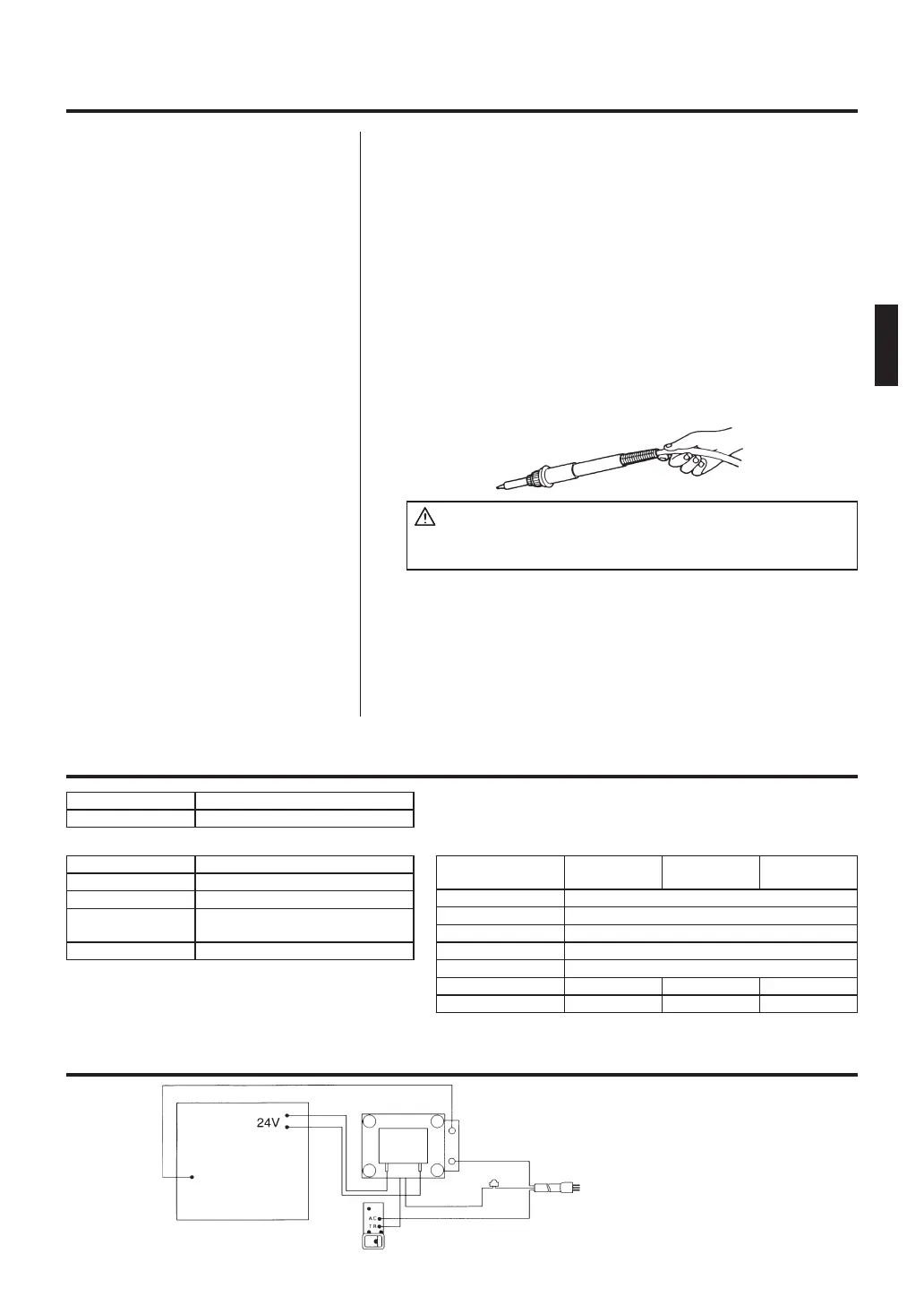

1. Turn the unit ON and set the temperature control knob to 480°C (896
°F). Then wiggle and kink the iron cord at various locations along
its length, including in the strain relief area.
If the LED heater lamp flickers, then the cord needs to be replaced.
CAUTION
The LED heater lamp will flicker even with a normal Iron cord if
the temperature reaches 480°C (896°F).
2. Check the resistance between the pin of the plug and the wire on
the terminal.
Pin 1: Red Pin 2: Blue Pin 3: Green Pin 4: White Pin 5: Black
The value should be 0 Ω. If it is greater than 0 Ω or is ∞, the cord
should be replaced.
Refer to the drawing in the replacement parts section of this manual.
Desolder the blown fuse and remove it. Solder on a new one.
2. Broken Soldering Iron Cord
There are two methods of testing the
soldering iron cord.
3. Replacing the Fuse
Specifications
Wiring Diagram
Name HAKKO 936
Power Consumption 60W
Station
936 Station / 936 Station ESD
Output Voltage 24V AC
Temperature Range 200°C - 480°C / 392°F - 896°F
Dimensions 120(W) x 938H)x70(D) mm /
4.7(W)x3.7(H)x6.7(D) in.
Weight (W/O Cord) 1300 g (2.9 lbs.)
• The tip temperature was measured using HAKKO 191 thermometer.
• Specifications and design subject to change without
notice.
Soldering Iron
900S
900S-ESD
907
907-ESD
908
908-ESD
Power Consumption 24V AC - 50W
Tip to Ground Resistance Under 2 Ω
Tip to Ground Potential Under 2 mV (TYP. 0.6 mV)
Heating Element Ceramic heater
Cord Assembly 1.2 m (4 ft.)
Total Length (w/o Cord) 176 mm (7 in.) 190 mm (7.5 in.) 200 mm (7.9 in.)
Weight (w/o Cord) 25 g (0.06 lbs.) 44 g (0.09 lbs.) 54 g (0.12 lbs.)
Transformer
3-core
Ground
P.W.B.
English
9
部件名稱
液晶顯示發熱器指示燈
控溫旋鈕
旋鈕架
校準計筒狀插
頭 / 校準計
六角頭扳手
電線
電源開關
焊鐵插座
焊鐵架基座
小塊清潔海綿
大塊清潔海綿
電線
裝置和使用HAKKO 936
注意：
海綿是可擠壓物體，水濕則漲大。使用海綿時，先濕水再擠乾。否則會損壞焊鐵頭。
A. 焊鐵架
1. 小塊清潔海綿
將小塊清潔海綿先濕水再擠乾，置入焊鐵架底
座四個凹洞之一。
2. 添水至圖1所示水平面。小塊海綿吸收水分後，
可使置於其上的大塊海綿一直保持潮濕狀態。*
也可以單用大塊海綿(省去小塊海綿和添水)。
3. 然後霑濕大塊海綿，置於焊鐵架底座。
註: 900S型和907/908型焊鐵架有所不同。更換焊鐵
時，應選用適當款型。請參照“部件清單”。
注意：
進行連接和解開焊鐵時，切記要關掉電源，以免損壞印刷電路板。
B. 連接
1. 將電線裝置連接焊鐵插座。
2. 將焊鐵置放於焊鐵架。
3. 將插頭插入電源插座。切記要接地。
C. 設定溫度
1. 將控溫旋鈕設定在所需溫度點。
2.. 鎖定控溫旋鈕。
HAKKO 936配有溫度調節鈕鎖。當設定所需溫
度後，以所供應的六角頭扳手栓緊鈕座旁邊的
六角螺帽。依順時針方向栓緊鈕鎖。
注意：
切勿過度栓緊鈕座。
當上鎖後，切勿扭開鈕鎖。
按順時針方向擰
緊。
插座
對準定位然
後插入。
中 文
