HALFEN HSC Assembly instructions
Deutsch EnglishFrançaisPolski
d
s
25 mm
d
s
12-16-20 mm
d
s
12-16-20 mm
d
s
12-16-20 mm d
s
12-16-20 mm
d
s
12-16-20 mm
Framework (batten) for
simplifi ed keyed joint
d
s
Fixing with hex head bolt with
ISO thread:
M12 for d
s
12, M16 for d
s
16,
M20 for d
s
20
Magnetic plate
Nailing plate, steel
d
s
d
s
d
s
Interlocking joint; no
batten in nailing
plate position.
d
s
Nailing plate, plastic

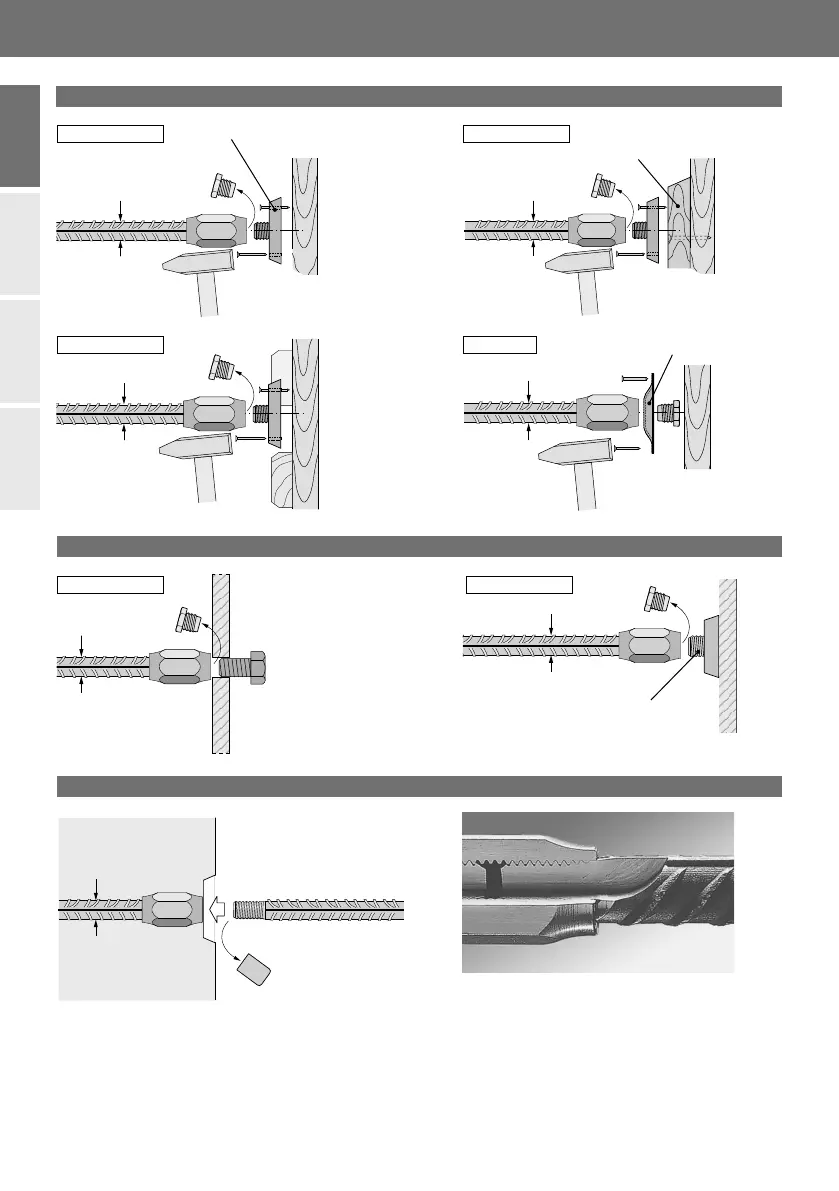

Screw-depth: The HSC (male) connecting bar is turned into
the sleeve until the thread is no longer visible. The bar is
then rotated until the anchor head is correctly aligned
(horizontal or vertical).
Thread detail of a HSC Connection
d
s
HSC Connecting Bar
HSC female bar
1
st
concreting phase 2
nd
concreting phase
d
s
Fixing to timber formwork
Installing the connecting bars (male)
Fixing to steel formwork
Refer to the engineer’s specifi cations. Subsequent bending
in the thread is not permitted. Secure elements properly
during shipping to avoid movement in construction joints.
