Hallmark HM46 - Page 9

710-0133 HM 46 57 Hallmark Manual Date: 06/24/16
Rev 04 Page 9 of 13

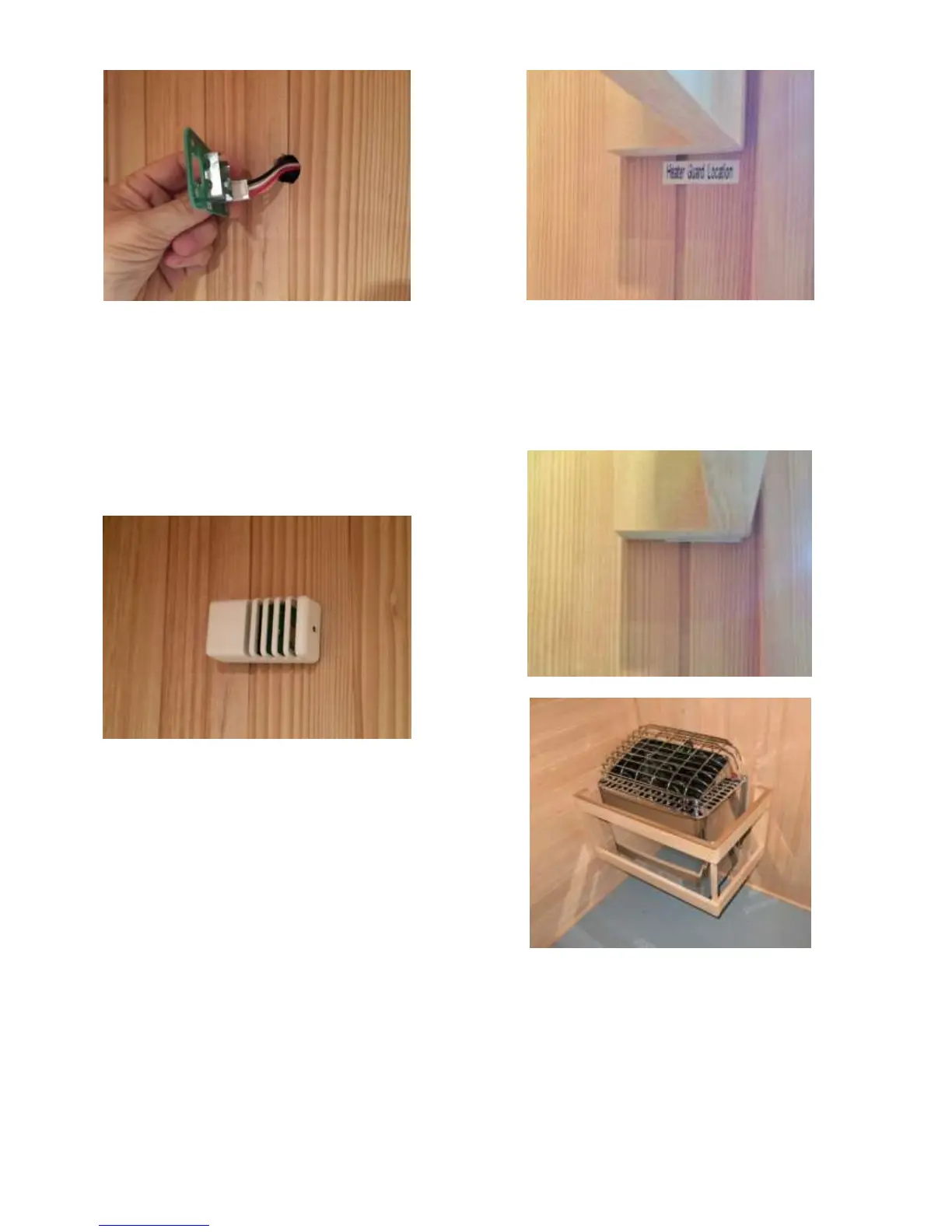

Step 5: Connect the sensor wire coming out of
the wall above the heater to the sensor assembly.
The sensor will then be fastened to the wall over
the hole with a screw.
Snap cover on the sensor and be sure to place the
solid white portion of the sensor over the wire
connections.
Step 6 Install the wood heater guard around the sauna
heater using the 1 1/8” screws provided. The heater
guard location is marked on both walls with a label.
Place the bottom of the heater guard to cover the label
on the walls and secure into location.
