1) Engage the upper portion of the skid steer’s quick-attach mount, and then rotate the mount into position
against the grapples main mounting plate.
2) Lock the pins or wedges to secure the grapple to the skid steer mount. Make sure the locks, pins or wedges
are fully engaged into the slots on the grapple mount. WARNING! If you need to raise the boom to check that
the locks are engaged, observe from a safe distance. DO NOT allow anyone underneath a suspended grapple.
3) SLOWLY rotate the grapple fully back to ensure it does not come into contact with the skid steer or its boom
houses and wiring.
4) Lower the grapple and detach from the quick-attach mount to allow easier access to the skid steer cab while
installing the wiring.

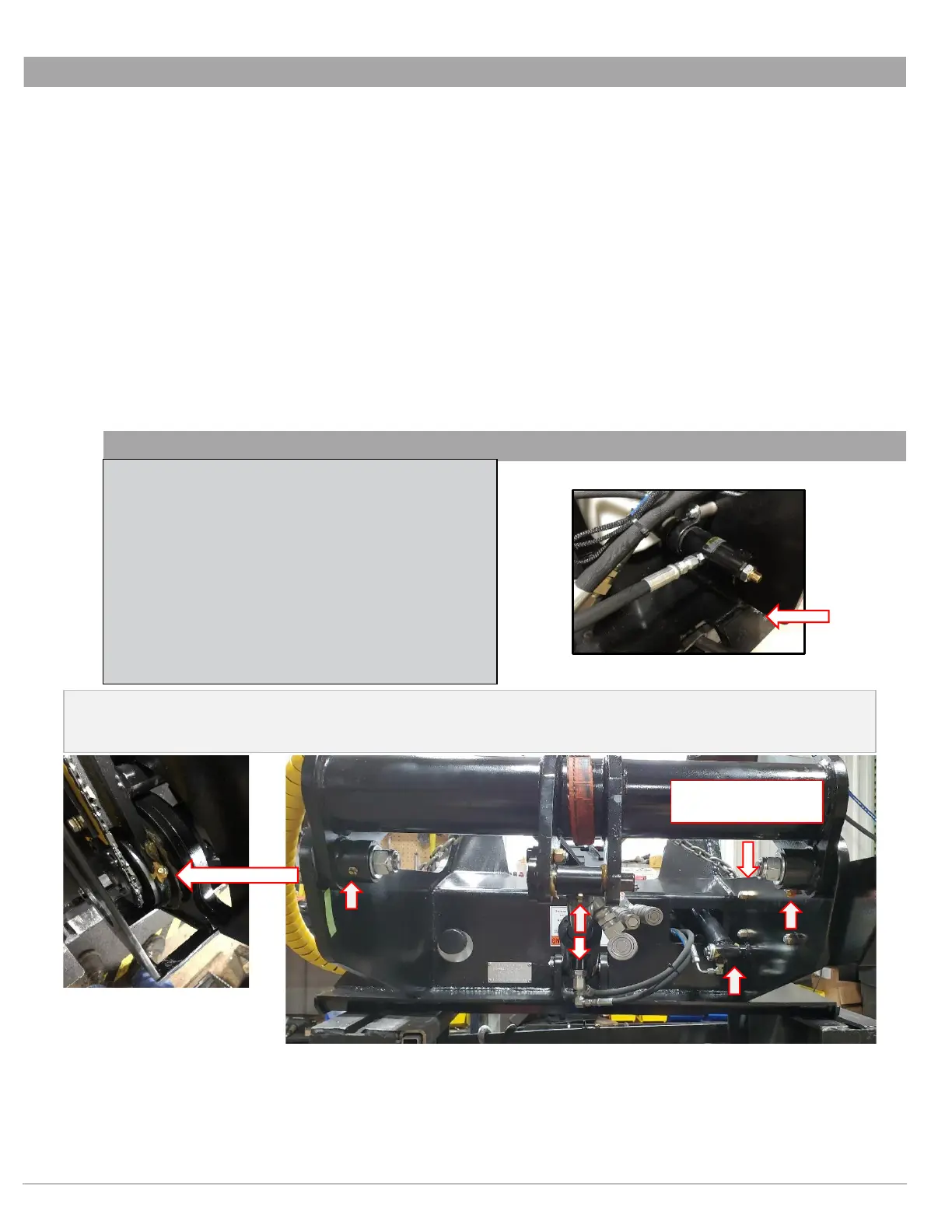

LUBRICATION POINTS:
-Saw cylinder pivot points-Daily as used
-Saw swivel head-Daily as used
-Cylinders-As needed
SAW OILER:
It iscommon to have excess oil dripping off
the saw bar, the oiler may need to be
adjusted.
You should see a mist of oil when saw button is
pushed.
- Turn adjustment in for lessoil
- Turn adjustment out for moreoil
