Generator Service Manual
› User’s Manual
› PMX-BAY-19-14 Adaptor Cable
4.5 Generator Maintenance Schedule
› The Generator verifies calibration integrity during the Power-On-Self-Test (POST);
maintenance is not required.
› For Cleaning and Disinfection Instructions, refer to 4.3 Generator Cleaning and Disinfection
Instructions.
4.6 Compatible Accessories
› The PMG has been approved for use with all Halyard Health (KIMBERLY-CLARK) and Baylis
accessories, transducers, and cables. This includes the PMX, PMP, PMC, PMF, TDX, TDP, TDI,
TDA, CRX, and CRP line of products.
5.User Interface Overview

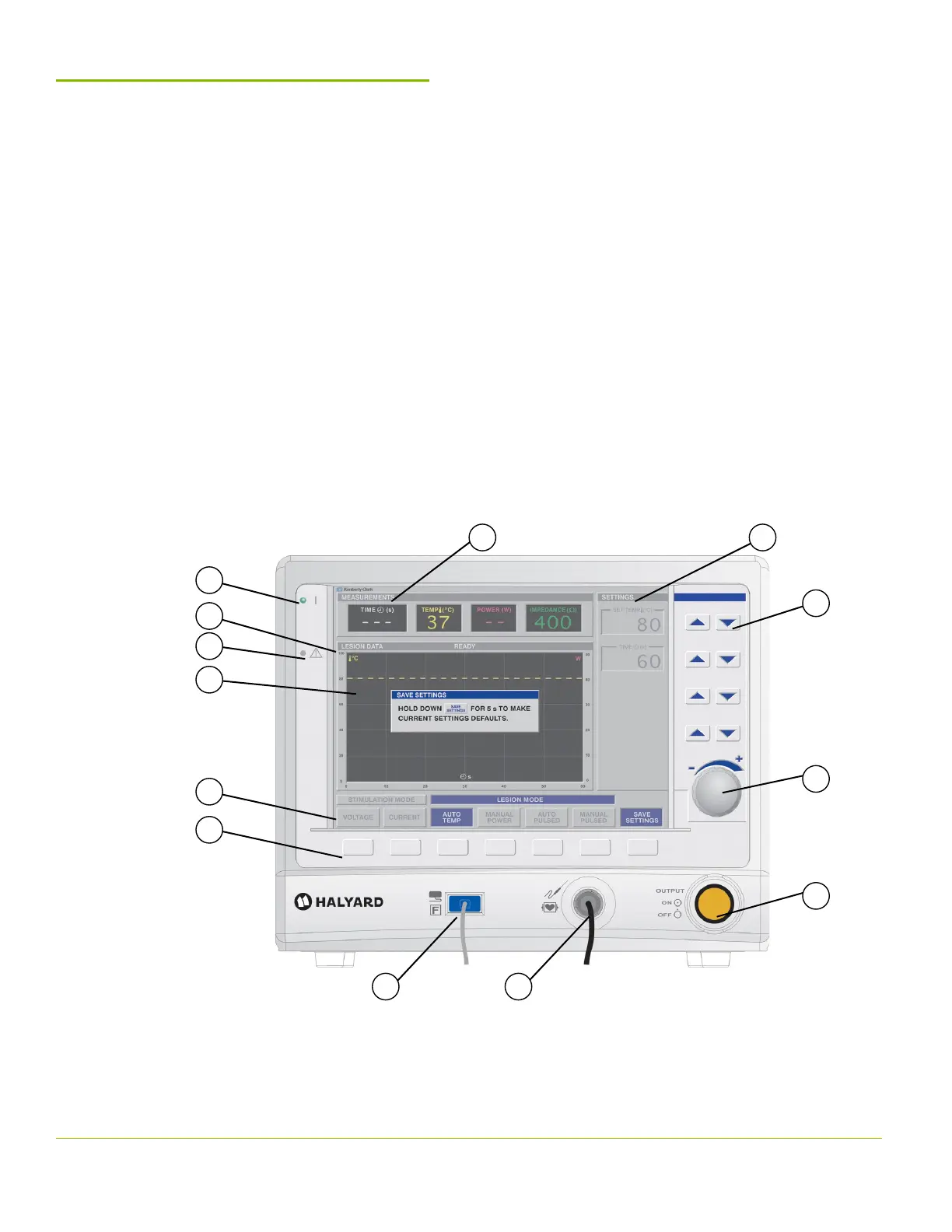

Figure 5-1 Generator front panel
5.1 Front Panel Displays, Controls, and Connections
Note: The picture above depicts a typical PMG 4.1 display. The display may differ per PMG
