Hamilton Beach 2202 - Parts Listing

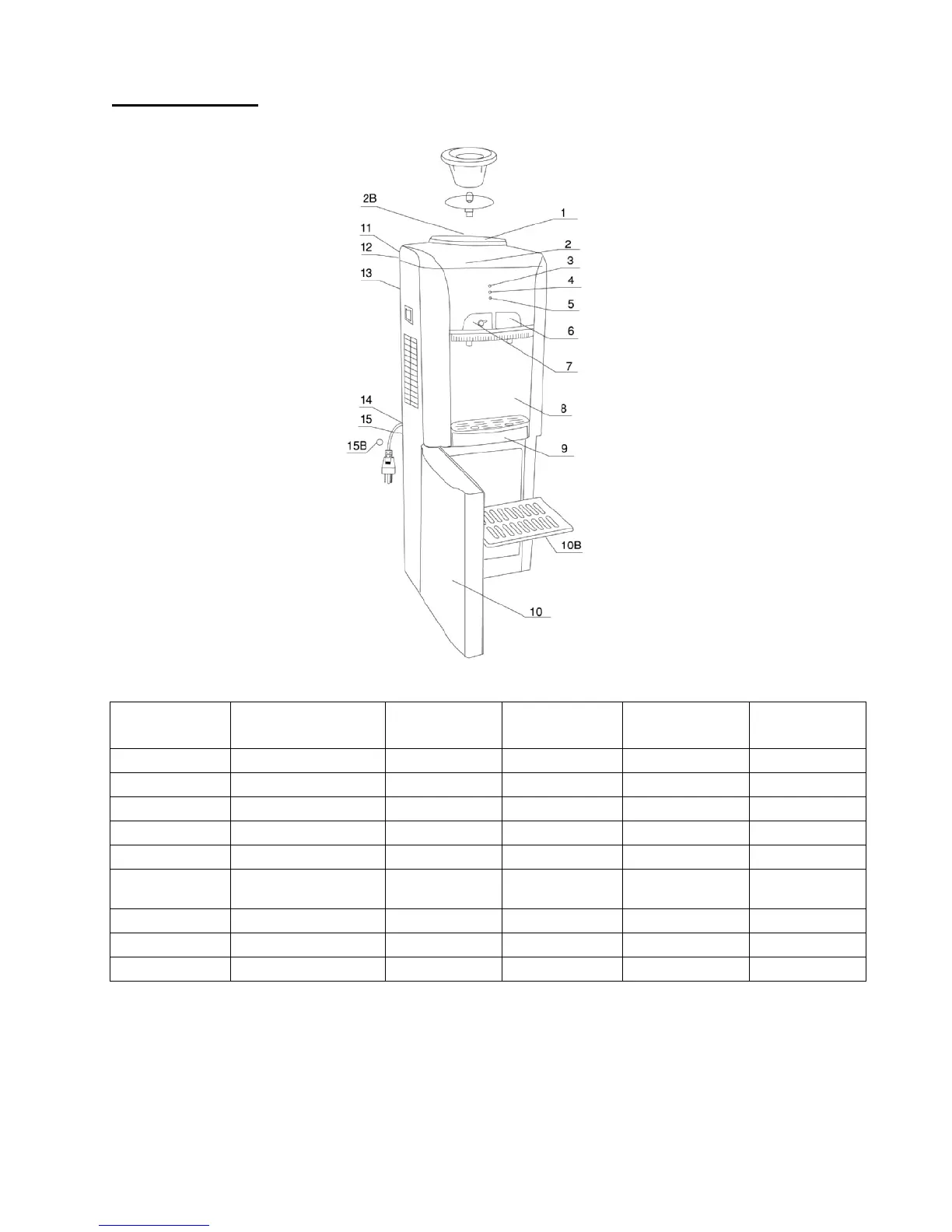

Parts Listing:
5
1
2
Part No. Part Name Part No. Shown
on Diagram
Part No. Part Name Part No. Shown
on Diagram
HB-BS-1003 Bottle Supporter 1 HB-DT-1012 Drip Tray 9
HB-SE-1004 Separator 2 HB-SD-1013 Storage Door 10
HB-CT-1005 Cold Water Tank 2B HB-RS-1014 Removable Shelf 10B
HB-GIL-1006 Green Indicator Light 3 HB-HS-1015 Heating Switch 11
HB-RIL-1007 Red Indicator Light 4 HB-CS-1016 Cooling Switch 12
HB-BIL-1008 Blue Indicator Light 5 HB-TH-1017 Thermostat
(Do not touch)
13
(under panel)
HB-CWF-1009 Cold Water Faucet 6 HB-PC-1018 Power Cord 14
HB-HWF-1010 Hot Water Faucet 7 HB-DOC-1019 Drain Outlet Cap 15
HB-CAS-1011 Casing 8 HB-SS-1020 Silicon Stopper 15B
