Hamilton Beach 67840 - How to Disassemble; Initial Disassembly Steps; Remove Pulp and Strainer Components

7

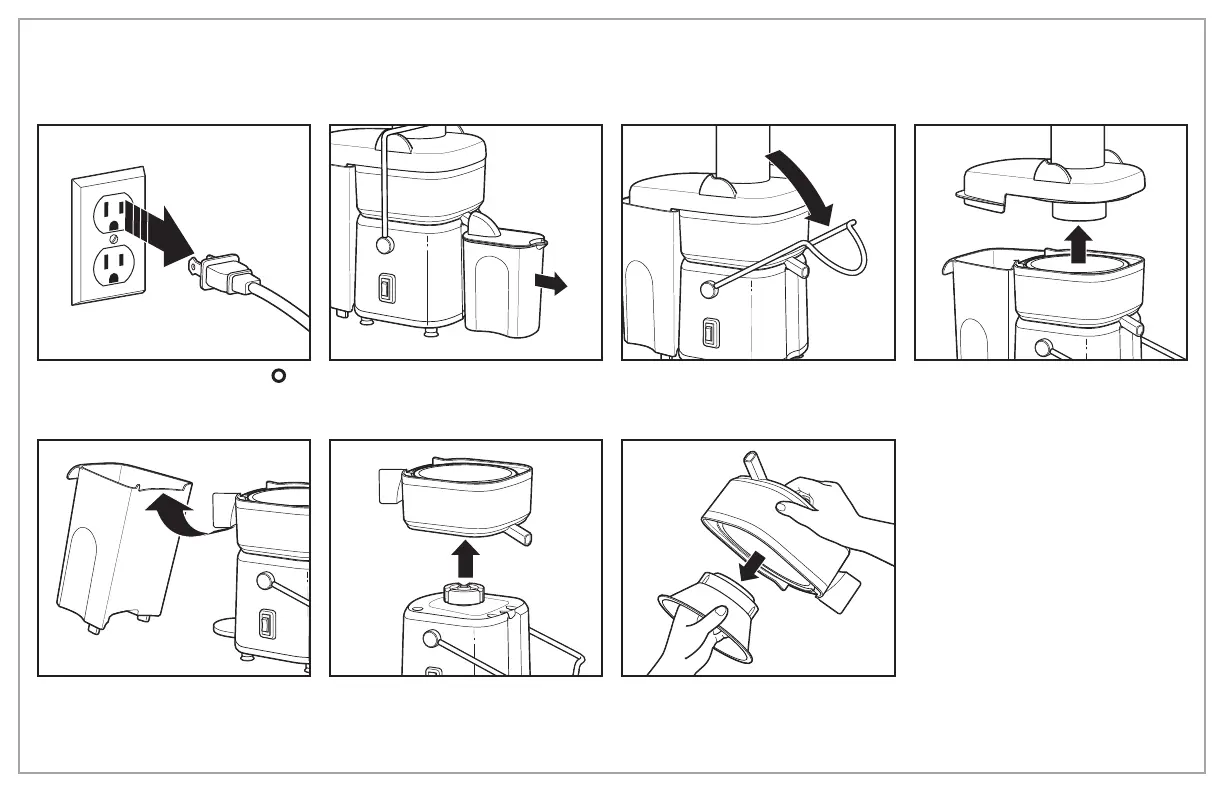

How to Disassemble
1. Turn Juice Extractor OFF ( )
and unplug. Allow Strainer
Basket to stop turning.
2. Remove Juicing Container with
juice .
3. Release Locking Arm and
gently lower to counter.
4. Lift off Juicer Cover with Food
Pusher.
5. Remove the Pulp Container by
sliding away from Motor Base.
6. Lift off the Strainer Bowl with
the Strainer Basket still in place.
7. To remove the Strainer Basket, turn the Strainer Bowl upside down
and carefully remove the Strainer Basket. (It is recommended to
remove the Strainer Basket over a sink.)
