Introduction
Your Hamilton Beach owner’s manual is designed to
assist owners and installers with the installation, operation,
and maintenance of your new water-conditioning system. The
simplified photo format is designed to assist all aspects of
operation.
In the event service or plumbing changes are required, contact
your local authorized Hamilton Beach dealer. If further
assistance is required, call 800.685.8440.
Introduction / Equipment Specification
Equipment Specifications
Working Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 psi to 120 psi
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102 to 132 vac, 60 Hz
Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Transformer . . . . . . . . . . . . . . . . . . . . . Wall Mount (indoor use only)
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . 34
o
F to 120
o
F
Humidity . . . . . . . . . . . . . . . . . . .10% to 100%, Condensing Allowed
Service Connections . . . . . . . . . . .
3
/4”, 1”, 1
1
/4” Copper Tube Adapter
Brine Line Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
/8” Tubing
Drain Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
/2” NPT Male
Water Flow . . . . . . . . . . . . . . . . Accurate over range of .5 to 23 gpm

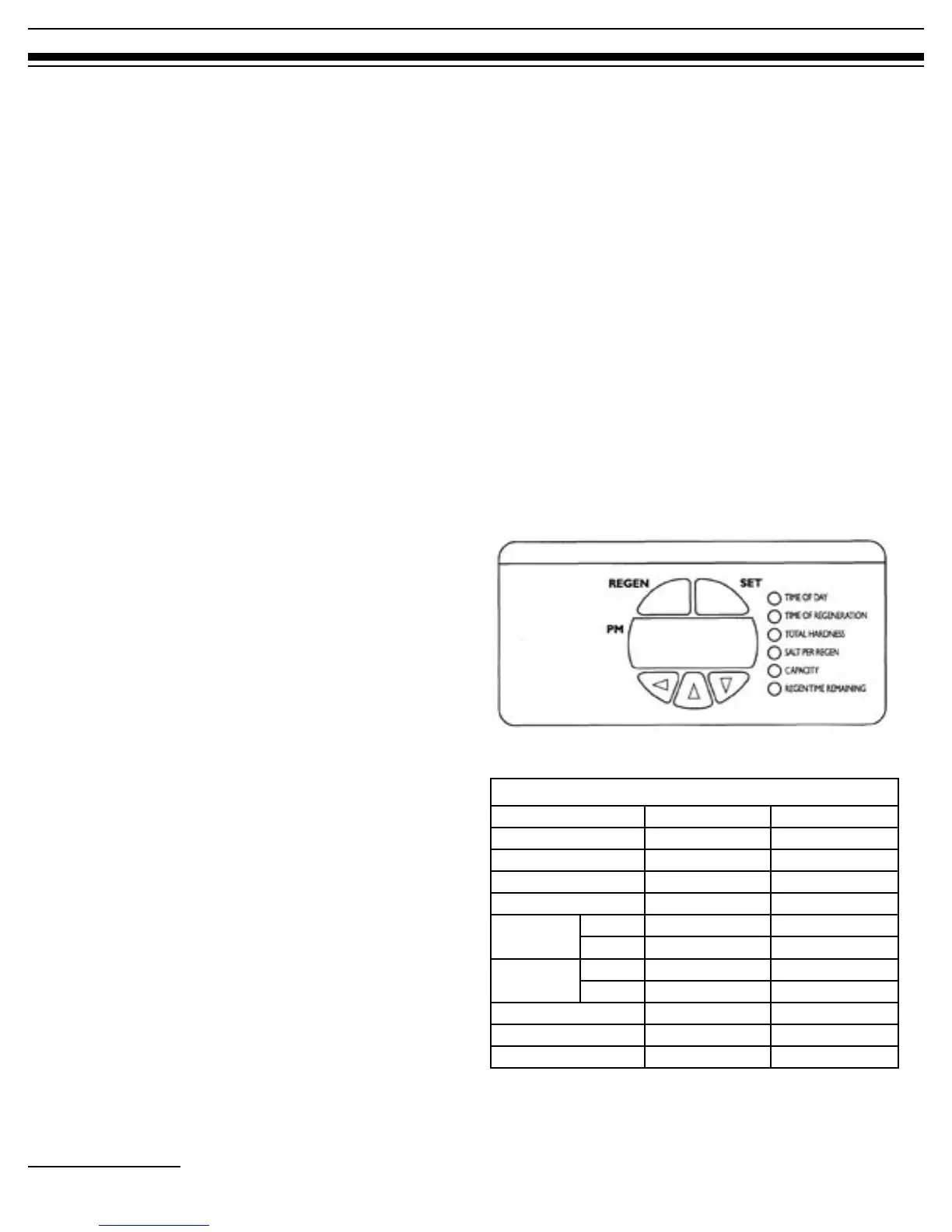

Figure 1: Control valve interface.
System Specifications
SA-HB-40-DB-CERT SA-HB-48-DB-CERT
Resin Tank Size 10x44” 12x48”
Resin Volume 1.25 ft
3
1.50 ft
3
Refill Controller 0.35 gpm 0.35 gpm
Backwash Controller 2.8 gpm 2.8 gpm
Salt Tank Size 15x40” 15x40”
Capacity 450 lbs 450 lbs
Operation
Temperature
Min 34
o
34
o
Max 120
o
120
o
Flow Rate 15.2 gpm 18.0 gpm
Pressure Drop 15.0 psi 15.0 psi
Max Flow to Drain 4.0 gpm 3.5 gpm
Table 1: System specifications
