OPERATION
When pushbutton (316) is pressed, the vibrator
in the front drum, in the rear drum, or in both
drums, is preselected.
This illuminated indicator (symbol without oscil-
lation) indicates a pre-selected vibrator in case
of de-activated vibration. Each actuation of the
pushbutton switches one step ahead in the cir-
culation.
Front vibrator........................................PRESS
Rear vibrator............................PRESS AGAIN
Double vibrator.........................PRESS AGAIN
If the vibration system is activated with push-
button (312), the illuminated indicator changes
over to Vibration activated (symbol with oscilla-
tion).
Activation .............................................PRESS
Deactivation.............................PRESS AGAIN
When the vibration system is activated, the vi-
brator can be switched on or off at any time
with the pushbutton at the multifunctional grip
(503).
The pushbutton (319) sets the operating mode
for the vibration system. The vibrator can be
switched on or off manually or automatically.
Manually...............................................PRESS
(Upper control light lights up)
The vibration can be switched on or off at any
time with the pushbutton on the multifunctional
grip (503).
Automatically............................PRESS AGAIN
(Lower control light lights up)
The switching on and off of the vibration is cou-
pled to the road speed. When the admissible
road speed with vibration (8 km/h (4.97 mph))
is exceeded, vibration is switched off.
Braking
(below 1.5 km/h (0.93 mph)).....................OFF
Acceleration
(more than 0.5 km/h (0.31 mph)) ...............ON
Driving
(more than 8.0 km/h (4.97 mph)) ..............OFF
The vibration can be switched on or off at any
time with the pushbutton on the multifunctional
grip.

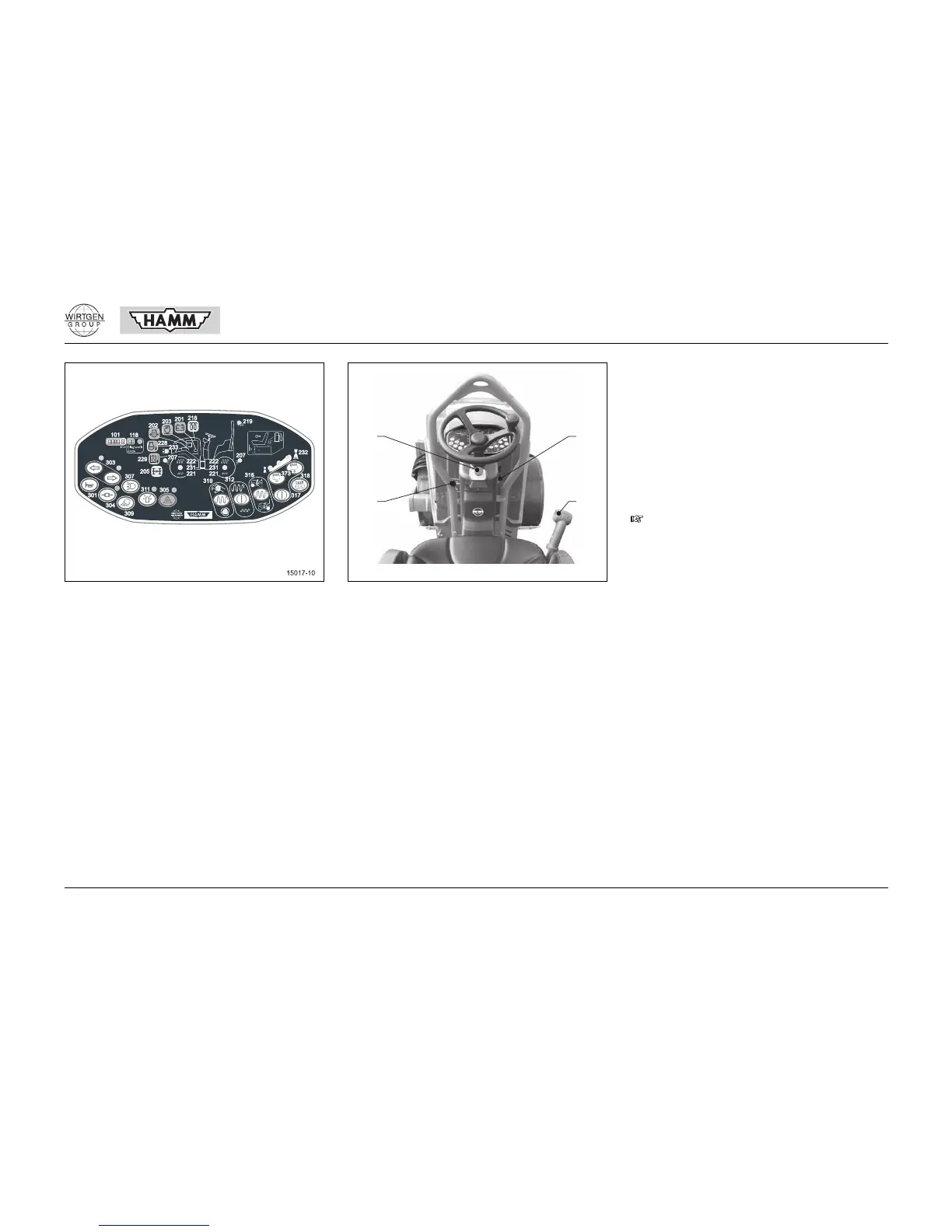

15000-10
302 310
504 503
501
The automatic mode must be activated
with the pushbutton at the multifunctional
grip (503) after initial switching on.
