MTS SHOULDER PRESS Assembly Instructions
7
3. Bolt the back brace to the sides. Insert the top two ½” x 2-3/4” bolts with hammerhead washers from
the outside of the MTS SHOULDER PRESS. Put on a star washer and hand tighten the locknuts. Then
insert the bottom two ½” x 2-3/4” hex bolts, hammerhead washers, star washers and hand tighten the
locknuts.
1/2” x 2-3/4” (4)
2-3/4” BOLT

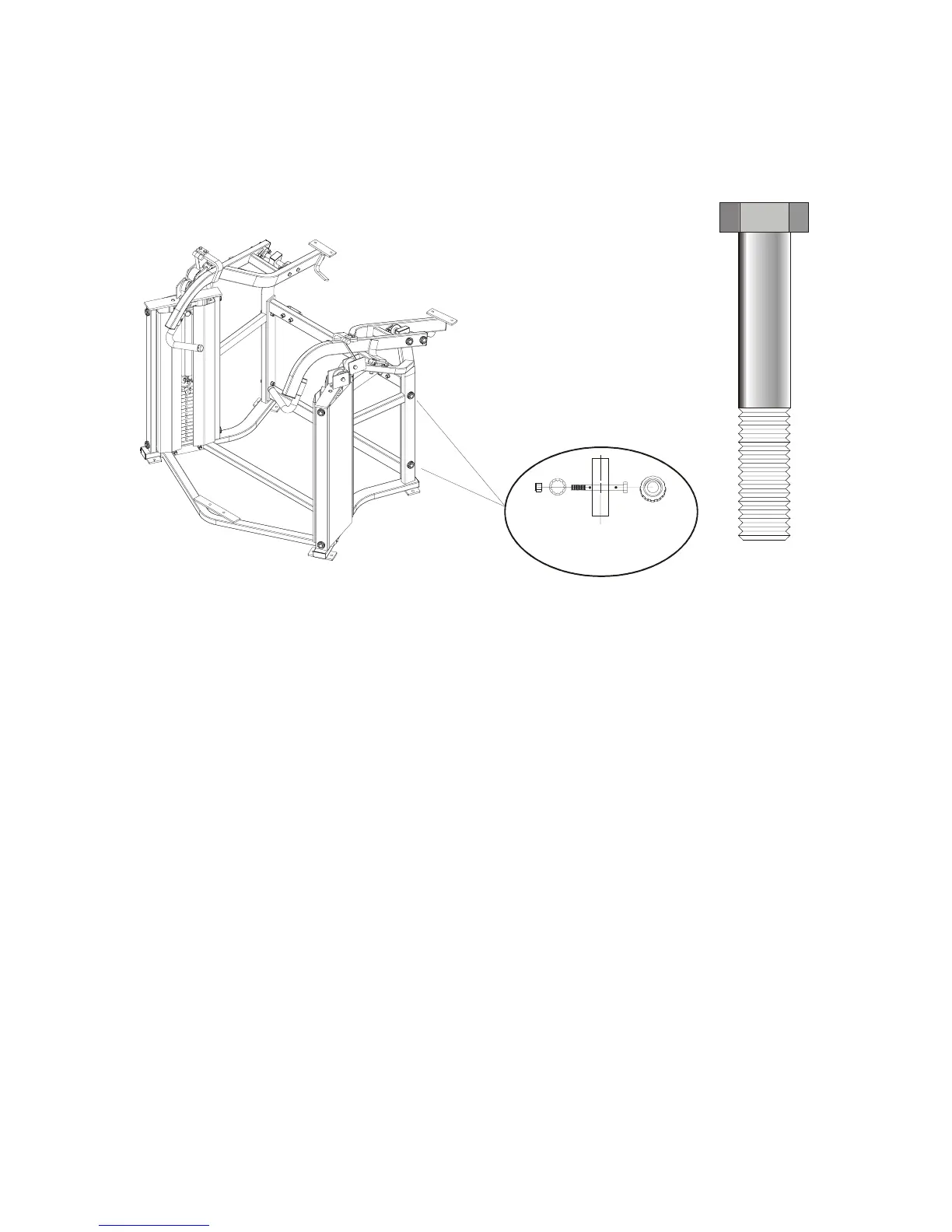

Assembly Figure 3. Bolt the back brace to the sides.
