MTS SHOULDER PRESS Assembly Instructions
8
4. Bolt seat assembly to MTS SHOULDER PRESS. Using two ½” x 3” bolts with hammerhead washers,
loosely fasten the seat assembly to the back frame. Using two ½” x 1-3/4” bolts with star washers on each
side, loosely fasten the seat assembly to the bottom frame.
1/2” x 3” (2)
1/2” x 1-3/4”
(2)
1-3/4” BOLT
3” BOLT

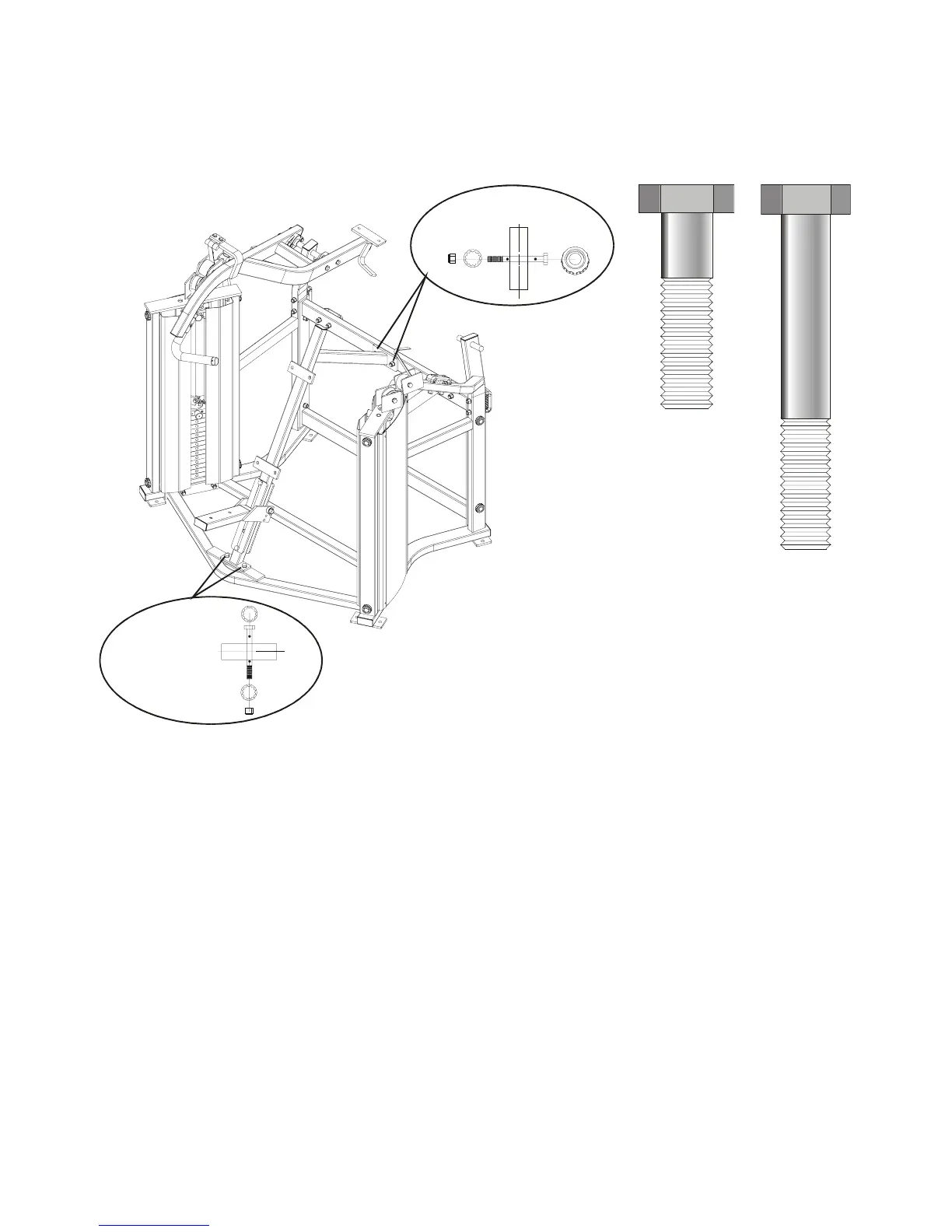

Assembly Figure 4. Bolt seat assembly to MTS SHOULDER PRESS.
5. Bolt seat cushions to seat assembly. Using two 3/8” x 2-1/2” bolts and 3/8” flat washers for the bottom
seat and four 3/8” x 1-1/2” bolts and flat washers for the back seat, fasten the seat cushions to the seat
assembly by lining up the bolt holes with the flanges as shown below.
To Next Page
