Hammer Strength OHDHR - Step-by-Step Assembly Guide; Step 1: Base Assembly

STEP 1:

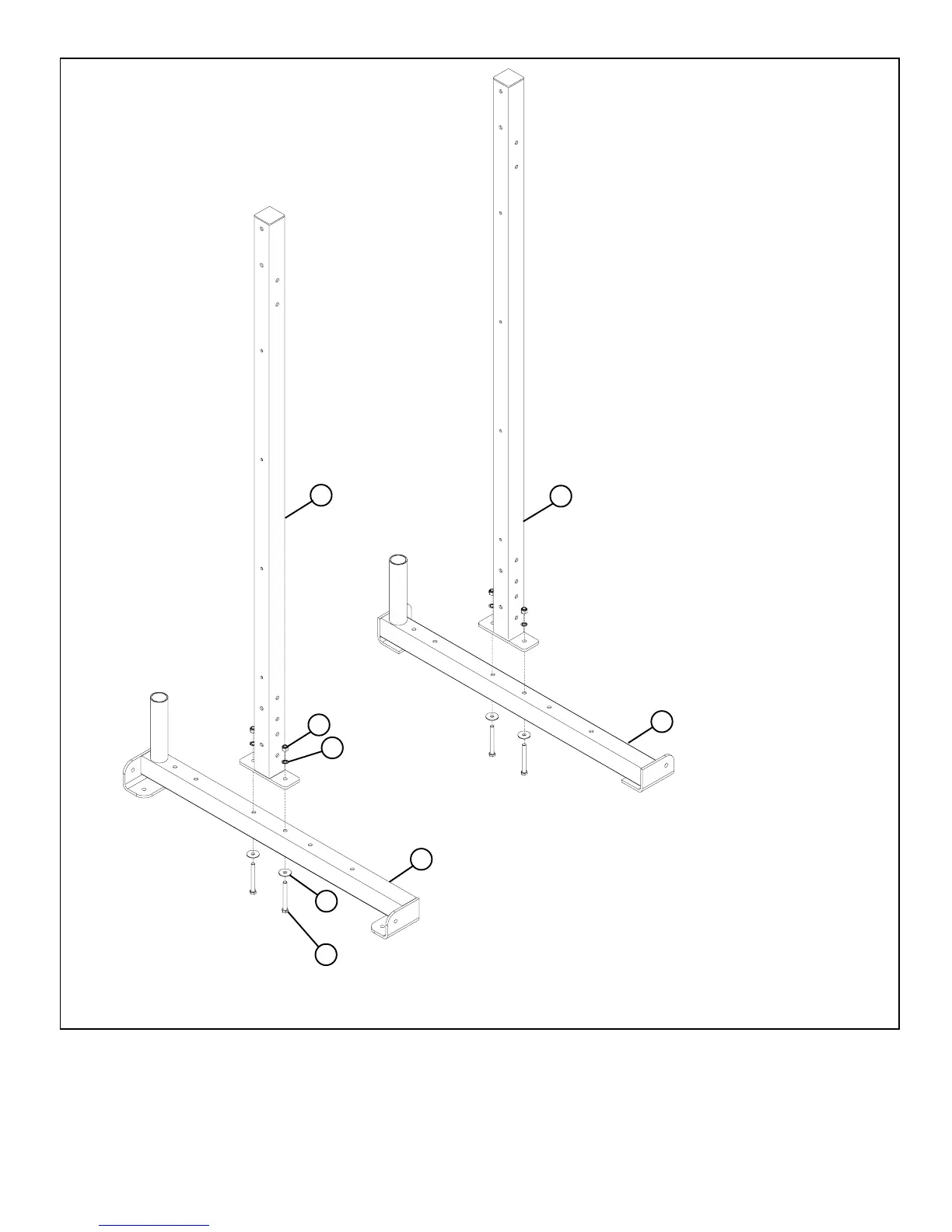

FIGURE 1
4
• LOOSELY assemble the REAR UPRIGHT (4) to the LEFT UPRIGHT BASE (1) using two 1/2 X 4-1/4” BOLTS (25), two 1/2” PLASITC
DOME WASHERS (21), two 1/2” INT TOOTH LOCK WASHERS (19) and two 1/2” LOCK NUTS (22) as shown in FIGURE 1.
22
4
4
25 1/2 X 4-1/4”
2
19
1
21
• LOOSELY assemble the REAR UPRIGHT (4) to the RIGHT UPRIGHT BASE (2) using two 1/2 X 4-1/4” BOLTS (25), two 1/2” PLASITC
DOME WASHERS (21), two 1/2” INT TOOTH LOCK WASHERS (19) and two 1/2” LOCK NUTS (22) as shown in FIGURE 1.
