STEP 2:

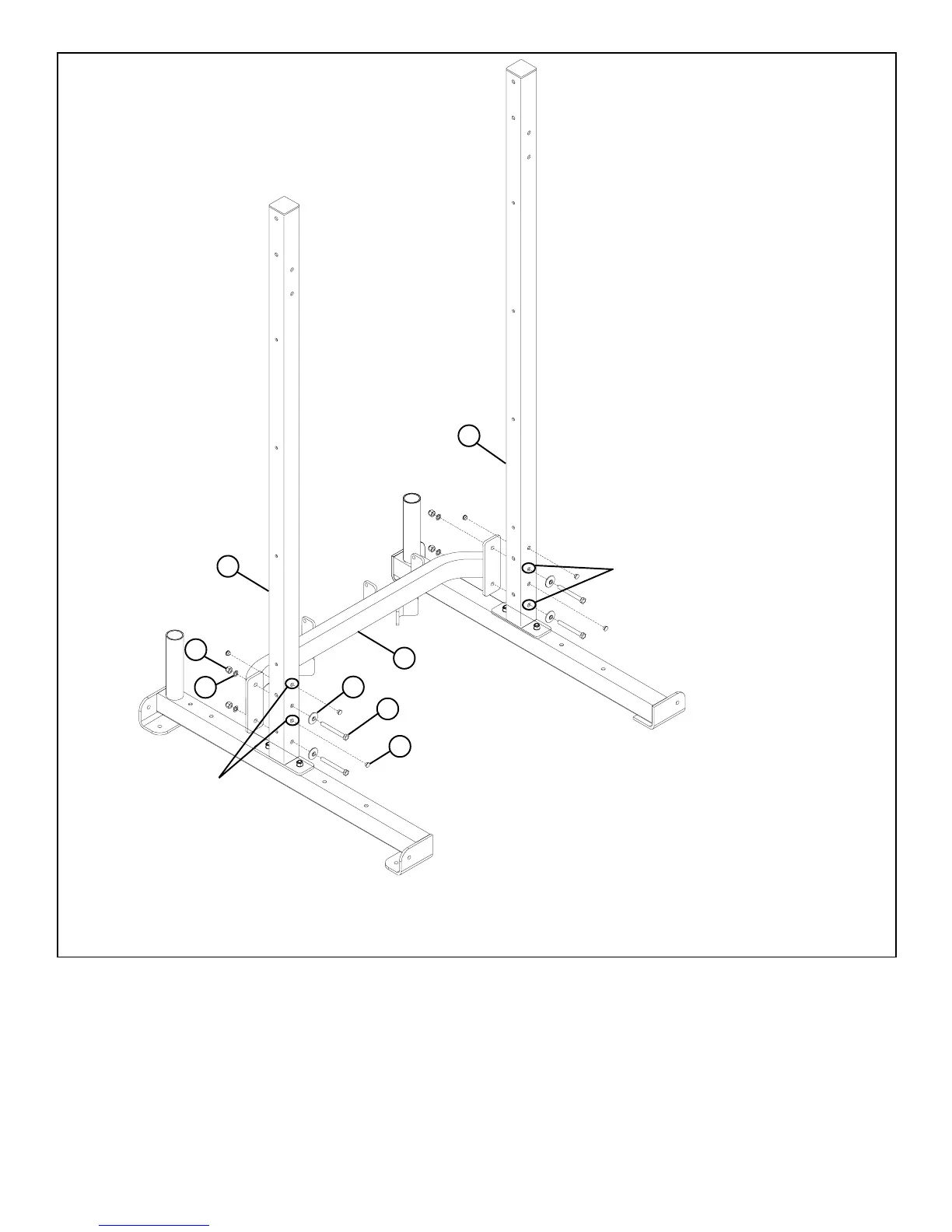

FIGURE 2
• LOOSELY assemble the BOTTOM UPRIGHT SUPPORT (15) to the REAR UPRIGHTS (4) using four 1/2 X 4-1/4” BOLTS (25), four
1/2” PLASITC DOME WASHERS (21), four 1/2” INT TOOTH LOCK WASHERS (19) and four1/2” LOCK NUTS (22) as shown in
FIGURE 2.
4
25 1/2 X 4-1/4”
21
4
15
19
22
Use this set of holes for
assembly with PLATFORM.
Use this set of holes for
assembly without PLATFORM.
26
• Insert six 9/16” HOLE CAPS (26) into the holes of the REAR UPRIGHTS (4) as shown in FIGURE 2.
