HAMMER STRENGTH EQUIPMENT

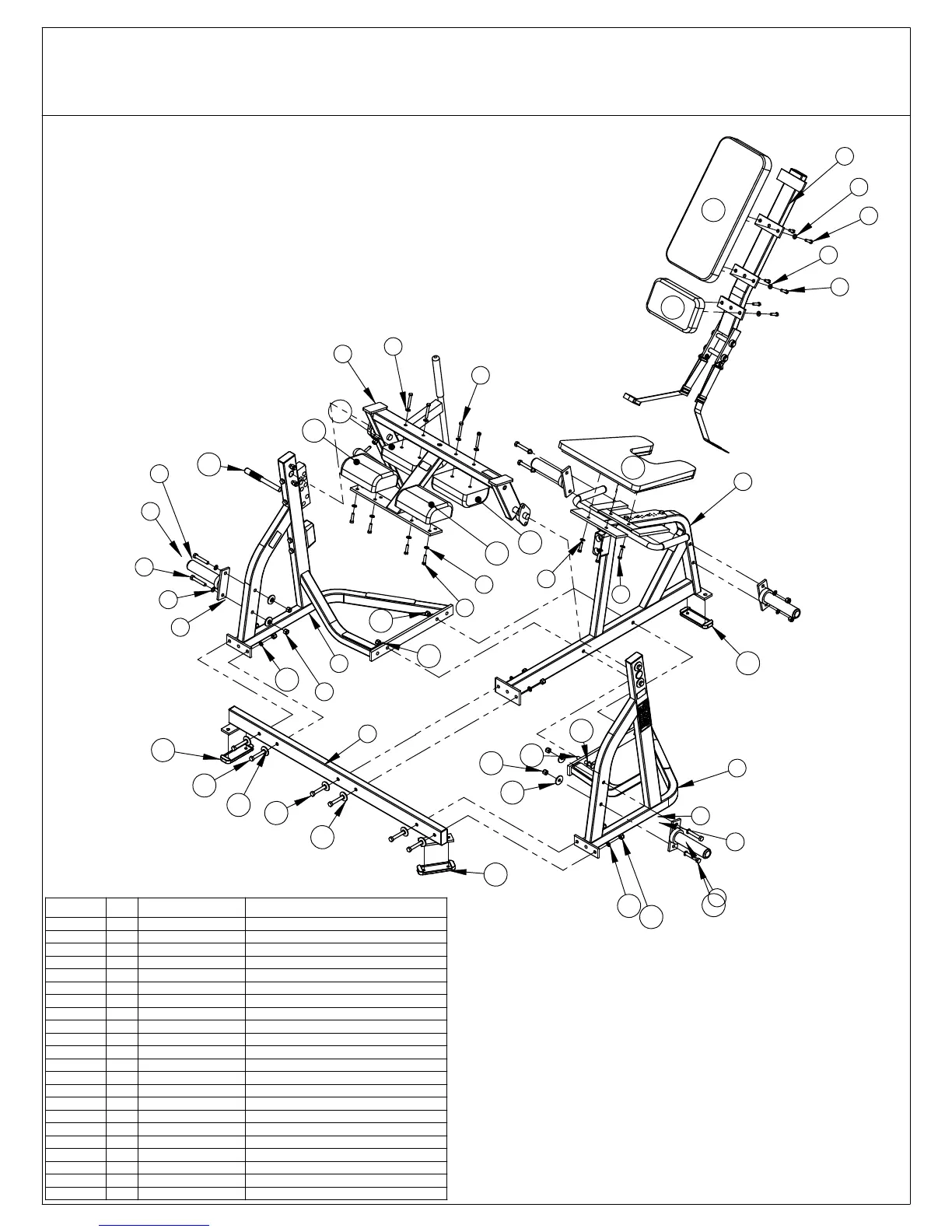

PLSLC - EXPLODED
PAGE 2 OF 8
22
4
15
14
15
14
22
2
15
12
11
12
14
11
13
21
3
11
12
11
6
16
16
16
16
7
8
9
7
17
18
5
7
8
7
8
1
22
19
8
7
?
?
?
?
?
?
?
?
?
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 PLSLC-CST-1 ASSY, PLSLC, SEAT FRAME
2 1 PLSLC-CSFL-1 ASSY, PLSLC, LEFT SIDE FRAME
3 1 PLSLC-CSFR-1 ASSY, PLSLC, RIGHT SIDE FRAME
4 1 PLSLC-CFX-0 ASSY, PLSLC, FRONT X-MEM
5 1 PLSLC-CAJST-1 ASSY, PLSLC, ADJ. SEAT
6 1 PLSLC-CMA-2 ASSY, PLSLC, MOVEMENT ARM
7 18 WASH.375SAE 3/8" SAE FLAT WASHER
8 12 HHB.375X1.5 STEEL BOLT 3/8 X 1.5
9 4 HHB.375X2.5 STEEL BOLT 3/8 X 2.5
10 2 HHB.375X1 STEEL BOLT 3/8 X 1
11 18 WASH.5STAR 1/2" INTERNAL LOCK WASHER
12 14 NUT.5LOCK 1/2 DIA THICK LOCK NUT
13 4 HHB.5X3.5 1/2 X 3 1/2 BOLT
14 10 H-BACK-WASH BACKING WASHER
15 10 HHB.5X3 1/2 X 3 BOLT
16 4 U-8-4.5 8X4.5 PAD
17 1 U-24-10 24X10 PAD
18 1 U-10-4.5S-NC PAD, 10-4.5
19 1 U-SLC SEAT PAD
20 4 H-HORN-ASSY ASSY, WEIGHT HORN
21 1 LimiterRodS Short Range Limiter Rod
22 3 MM-8 2 X 6 FLANGE RUBBER SLIPPER
