22
REPAIR
C. Front Wheel Alignment
a. The front wheels should be “toe-in” from 1/8” to 1/4”. To check for alignment, measure
distance A and B between the centerline (CL) of the wheels. The proper toe-in dimension A
should be 1/8” – 1/4” greater than dimension B.
b. To adjust the alignments, loosen the lock nuts on both sides of Front Tie Rods. To make
ȱȱǰȱȱȱȱȱĞǯȱȱȱȱȱȱȱȱȱȱ
ȱȱǯȱȱĞȱȱȱȱȱǰȱȱȱȱȱȱȱȱǯȱȱ
Recheck the dimensions for proper alignment.

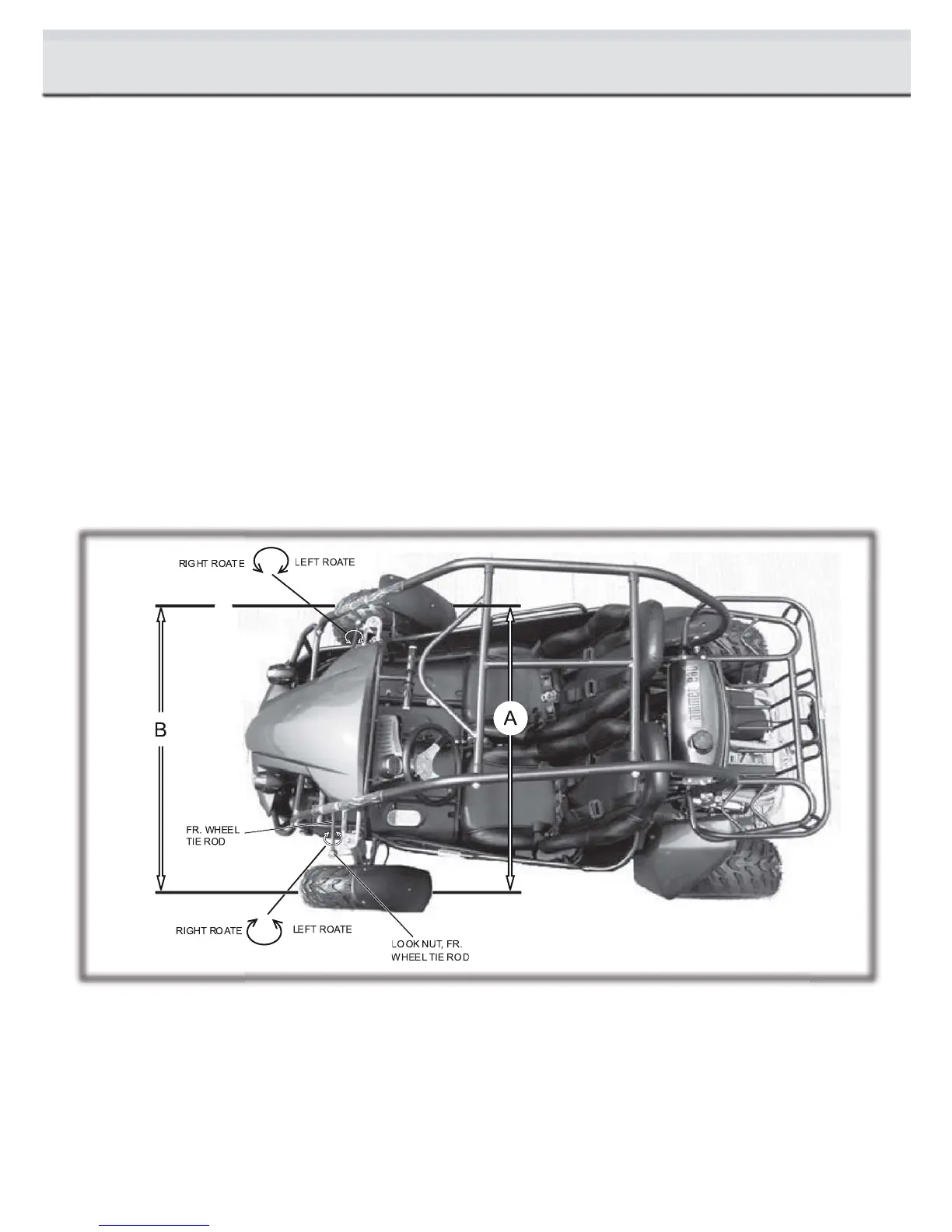

Figure 14
A
B
RIGHT ROATE
LEFT ROATE
RIGHT ROATE
LEFT ROATE
LOOK NUT, FR.
WHEEL TIE ROD
FR. WHEEL
TIE ROD
CL
