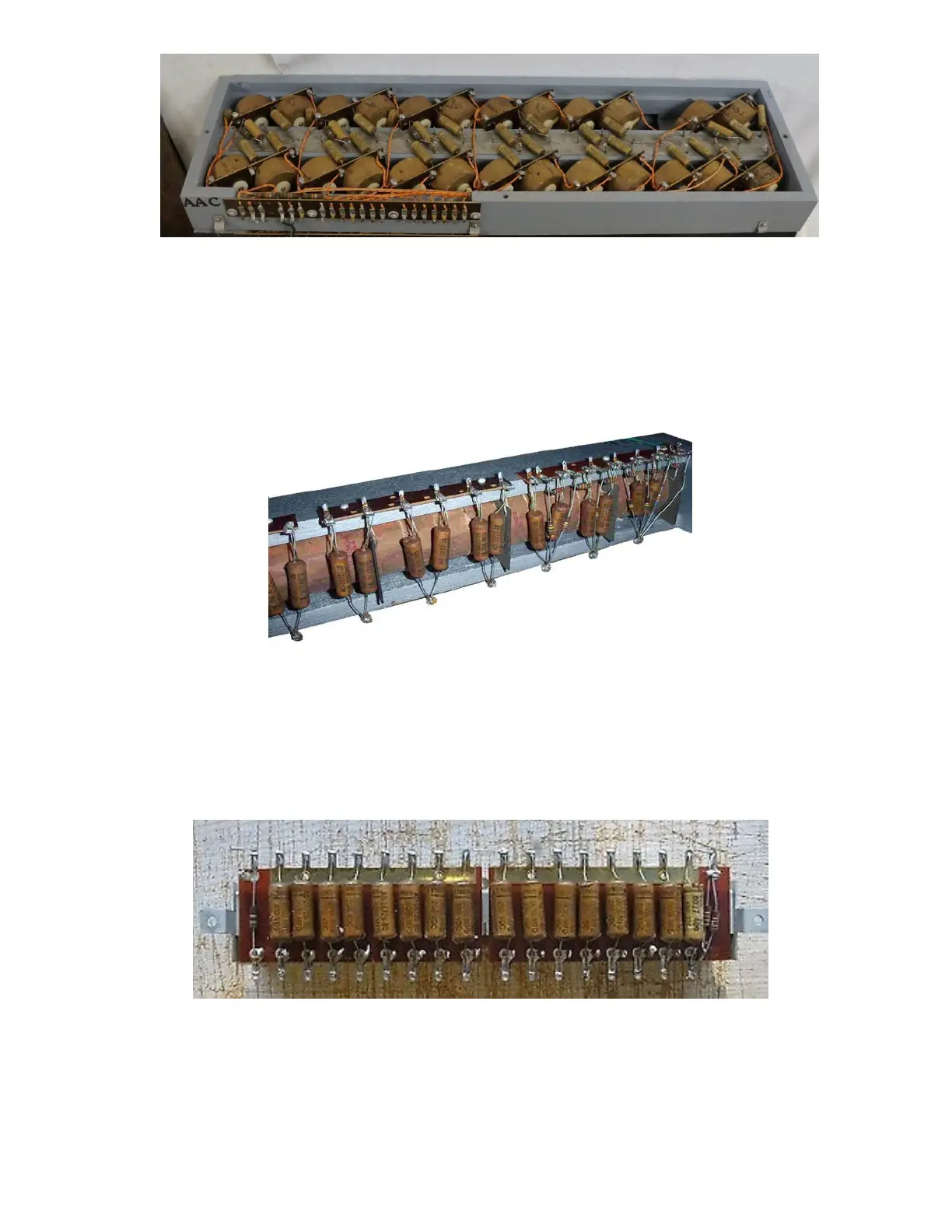

Figure 3
Vibrato Line Box
Used with circuit shown in Figure 9
Figure 3a
Vibrato Line Box
Used in B3, C3, RT-3 after c.1957 and all
A-100 and D-100 organs
Figure 2
Vibrato Line Box
used with circuits shown in Figures 6,7,8
These pictures are to represent style design only
21------Line Tap and Terminal Numbers-----1
