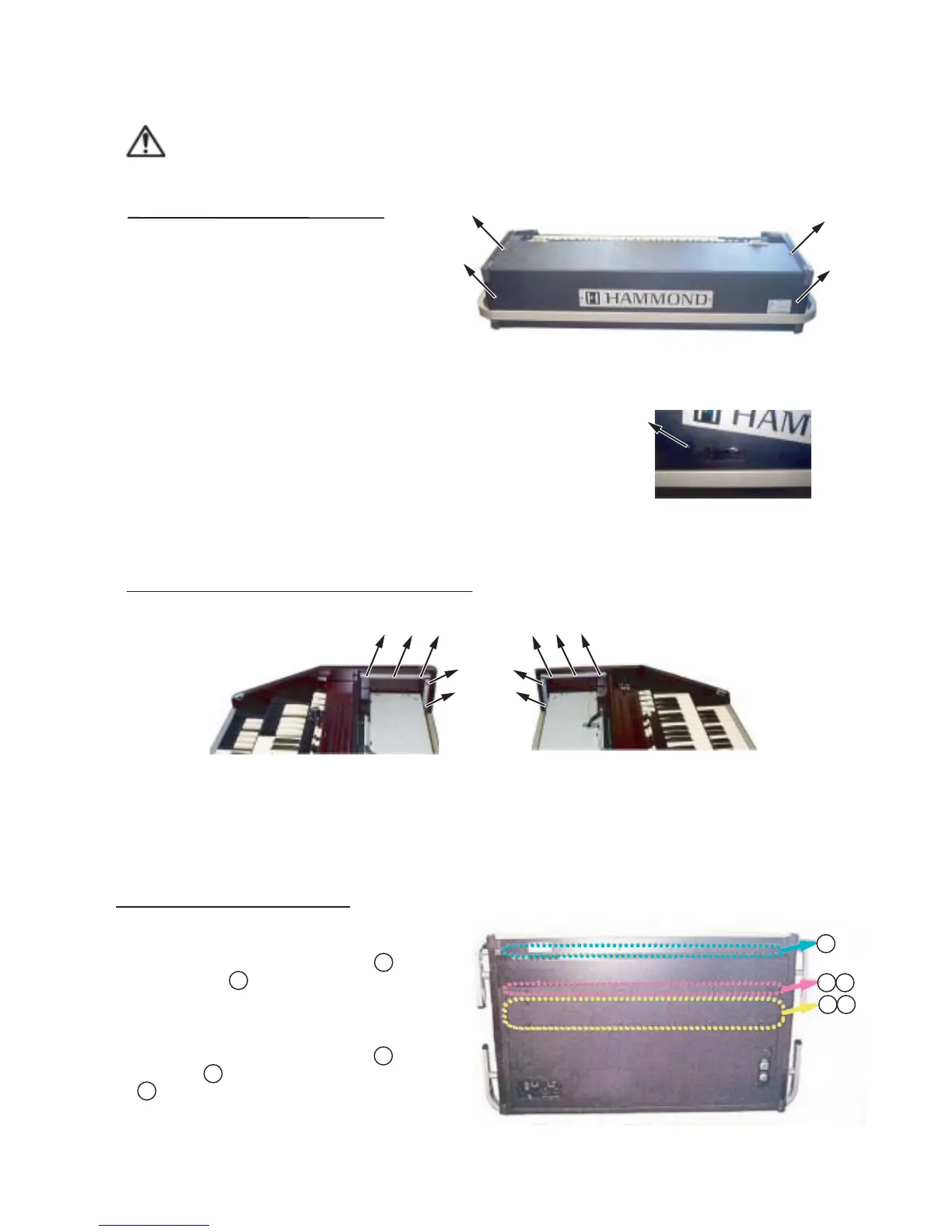

3.DISASSEMBLING PROCEDURE
B-3P

Remove the 4 screws(M5x20,Oval head,ZnB)
and 4 rosette washer(Ø5,ZnB) from the cover
ass'y.
1.REMOVE THE COVER ASS'Y
CAUTION:Disconnect ORGAN from A.C. source.
3.REMOVE THE KEYBOARD

Remove the 8 square claw washers A (Ø5,ZnB)
and 8 screws B (M5x25,Truss,ZnB) from the
upper keyboard.
A
B
C
D

Remove the 4 square claw washers C (Ø5,ZnB),
4 screws D (M5x25,Truss,ZnB) and 4 screws
E (M5x6,Truss,ZnB) from the lower keyboard.
E
< When using CompactFlash >

Remove the 2 screws(M4x12,Truss,ZnB) of HAMMOND Name Plate #1
from the cover ass'y.There is an exclusive slot.
2.REMOVE THE COVER BRACKETS(L)(R)

Remove the 10 screws(M4x10,Bind,ZnB) from the cover brackets(L)(R).
