INSTALLATION OF HEATER IN MODEL E CONSOLE
1. Remove back of console and place heater in position at left end of oil tubs
mounting plate as shown in figure 4 and mark location of two mounting holes. Holes
should be 3/16" from top edge of plate and left hole should be 1/4" from end.
2. Drill holes for mounting heater socket, using a #24 or a 5/32" drill.
3. Using two screws, lock washers and nuts provided with kit, mount heater
socket and one of the cable clips. The clip is fastened by the left hand socket
mounting screw.
4. Mount the rema1n1ng cable clip on post supporting run motor oil tube and
fasten heater cord in clips.
5. Remove power term1nal panel cover and solder heater cord ends to term1nals

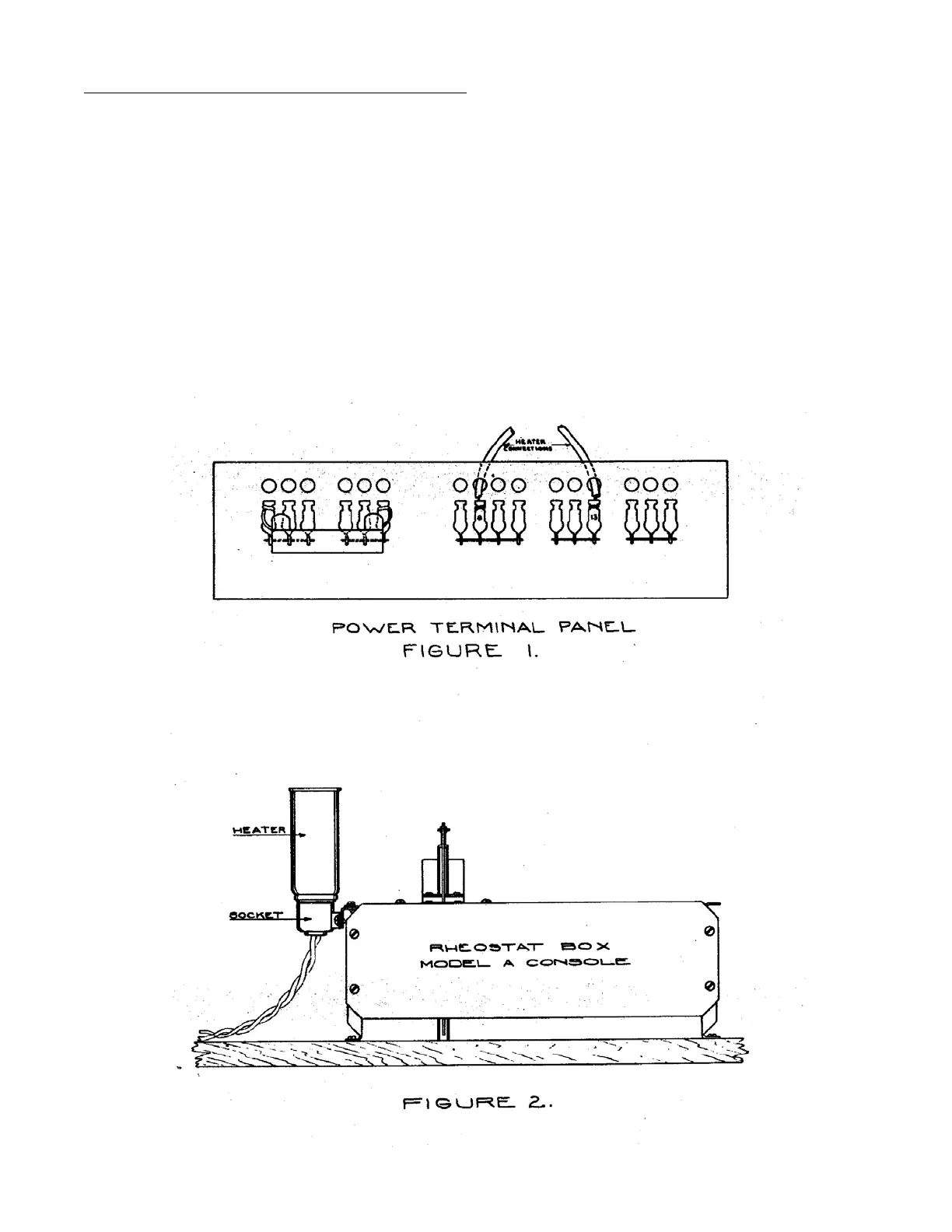

#8 and #13 counting from left of panel as shown in Figure 1.
6. Replace terminal panel cover, plug heater in socket and attach red
instruct10n tag to power cord plug.
