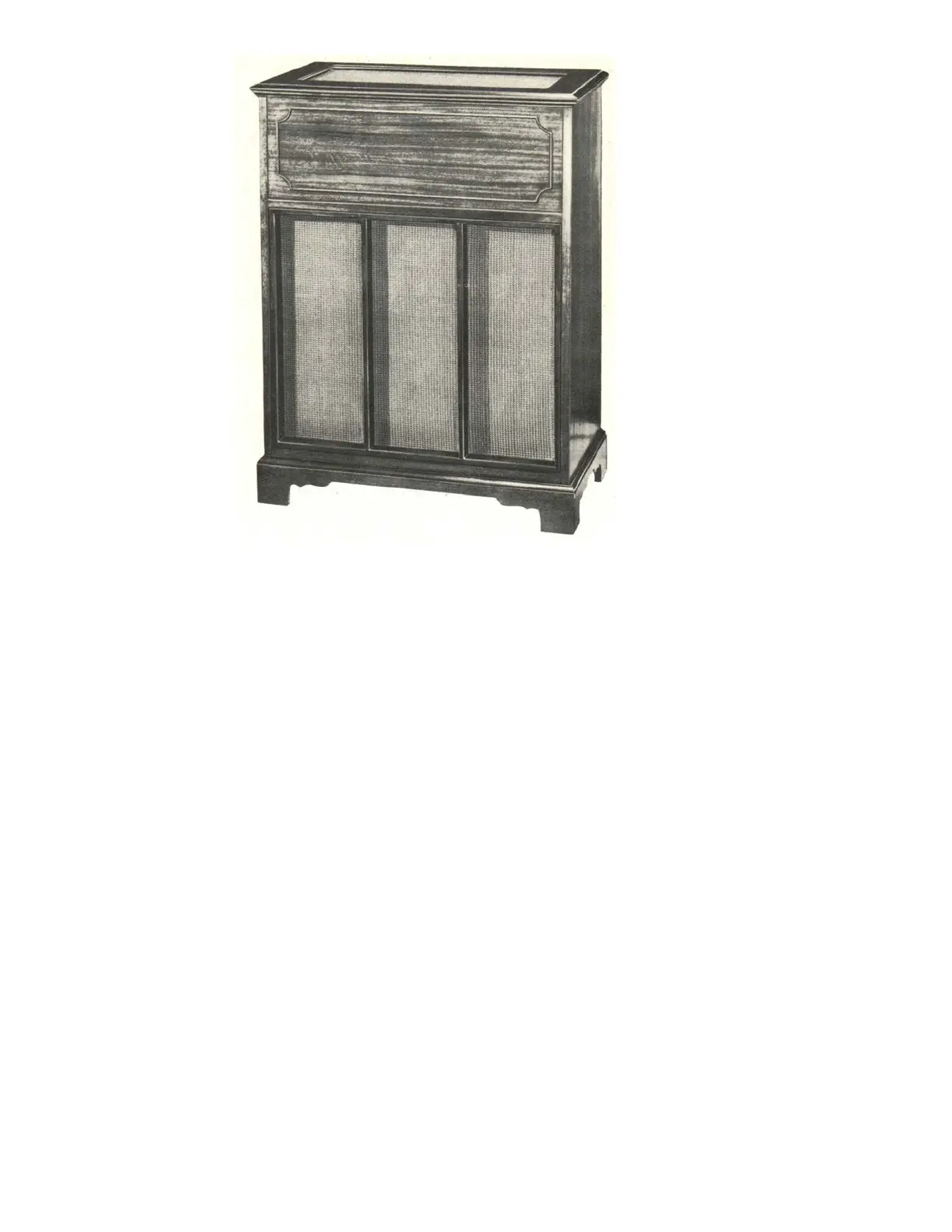

MODEL JR-20 TONE CABINET
S P E C I F I C A T I O N S
IN PRODUCTION: March 1951 to February 1959,
SELLING PRICE: $452.00 - Walnut. $472.00 - Oak.
D I M E N S I O N S : 29-3/4" wide; 39-3/4" high; 15-7/8" deep.
W E I G H T : 120 pounds.
AC INPUT: 100 watts.
O U T P U T : 20 watts - 1 amplifier -1 treble speaker - 12"
4 bass speakers - 10"
The JR-20 tone cabinet is ideal for the home, small church, mortuary and
entertainment places. Its response is non-directional with the highs pro-
jected vertically and the lows horizontally.
The amplifier is constructed with separate sections for bass and treble
response with a cross-over point at 200 cycles. A reverberation preamplifi-
er is also incorporated in the amplifier chassis and reverberation is
obtainable in three degrees on each channel, independent of each other. The
reverberation signal cannot be transferred to other tone cabinets.
T C - 1 2
