c. To make the final adjustment, strike and hold down the playing key for the
note being adjusted. Then tighten the magnet slightly in position and tap it gently
until it moves close to the tone wheel to bring the intensity up to the intensity of
the adjacent notes. Tighten the set screw so that the magnet is held firmly in
position.
d. Do not remove main tone generator assembly from the console unless
absolutely necessary. Should this be necessary, proceed as directed in paragraphs
5-63 to 5-71 inclusive.

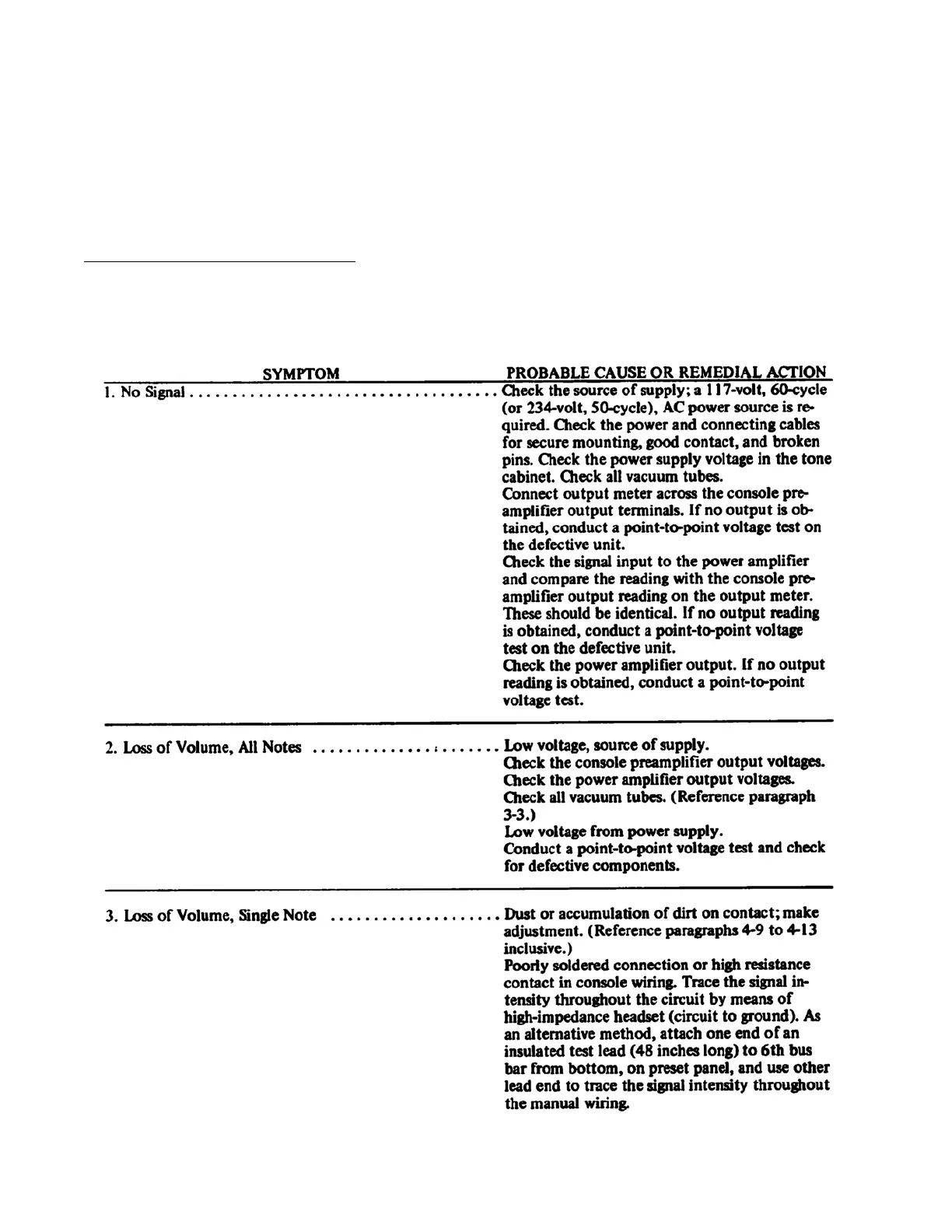

3-27. TROUBLESHOOTING CHART.
3-28. The following troubleshooting chart contains general information to aid in the
location of trouble. When the trouble stage is sectionalized, refer to Section V for
detailed aid in identifying the trouble with a particular part.
