Hammond SKX Instructions

5
Equalizer

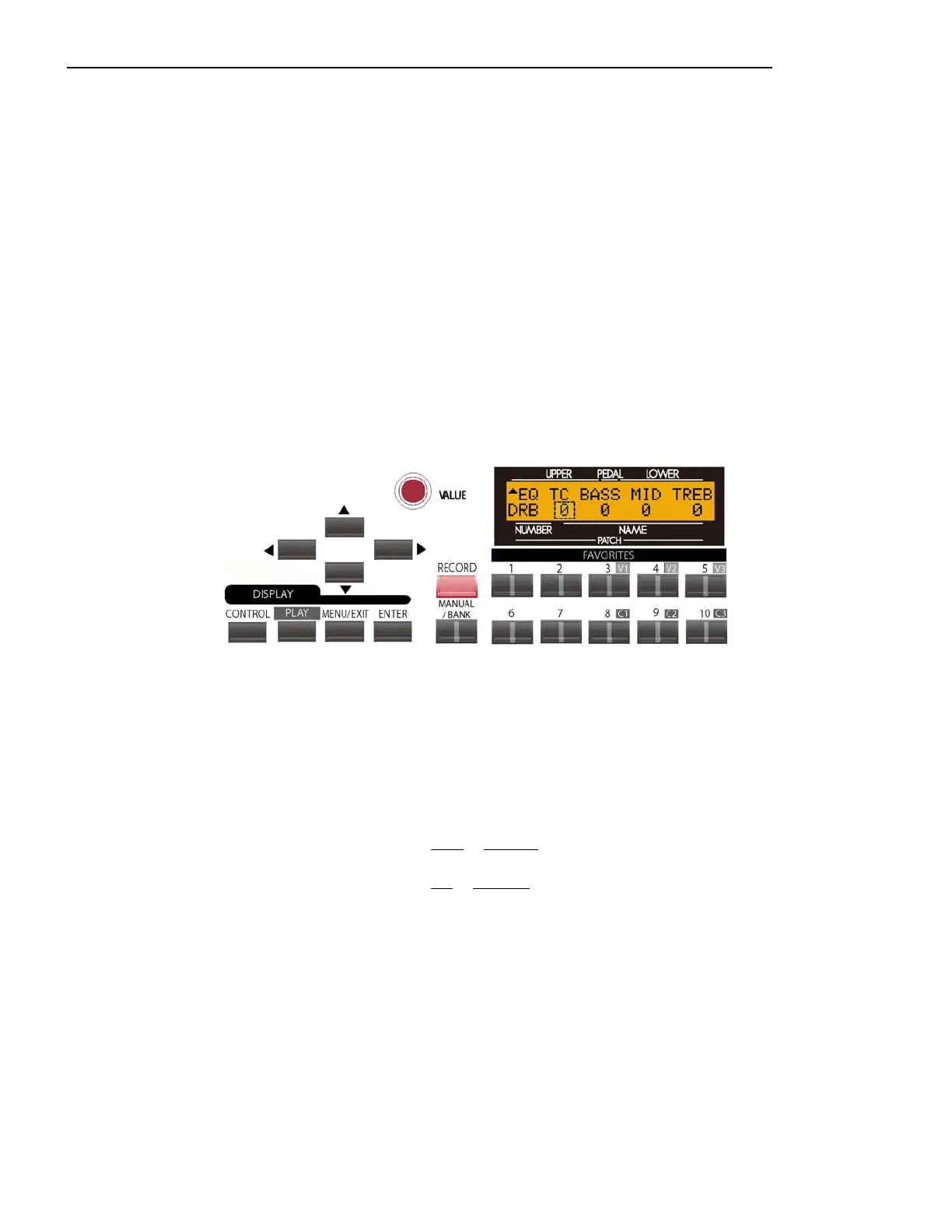

EQUALIZER Edit Menu - Page 1
If you followed the instructions on the previous page, you should now see Page 1 of the EQUALIZER Edit Menu. The
number underneath the word “TC” should now be blinking.
Drawbar Tone Control
This Advanced Feature simulates the tone control on the AO-28 preamp found in vintage B-3's and C-3's . On vintage organs,
this control adjusts the treble response above 200Hz. You can select from “-9" (minimum treble) to “+9" (maximum treble).
“-1” corresponds to the maximum of the original B-3 tone control, “-5”, the middle, “-9”, the minimum. The AO-28 tone
control would only “cut” or attenuate the treble frequencies, but this Advanced Feature allows you to increase the treble as
well.
Turn the VALUE Rotary Control to the right to increase the treble frequencies.
Turn the VALUE Rotary Control to the left to decrease the treble frequencies.

Hammond SKX Specifications

General

Manuals	2
Drawbars	9 per manual
Power Supply	AC Adapter
Effects	Chorus, Vibrato, Reverb
Connectivity	USB, MIDI, Audio Out, Headphones, Expression Pedal
Keyboard	61 keys (waterfall style)
Piano/Ensemble Section	Pianos, Strings, Brass
Display	LCD
Touch Sensitivity	Adjustable
