Assembly - Attaching the Fan Blades
Attaching the fan blades
Fastening the blade assemblies to
the motor
9
10

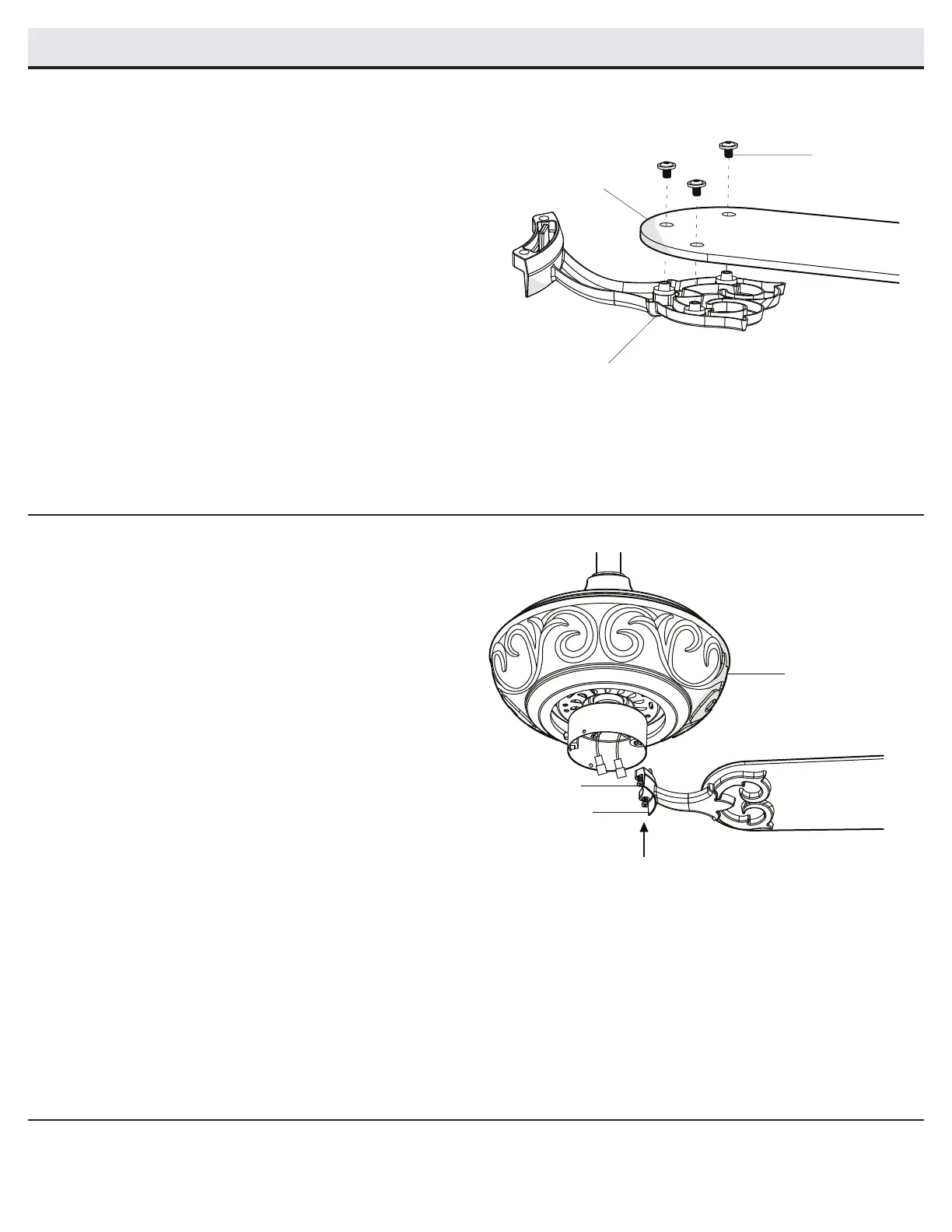

□ Attach blade (G) to blade bracket (H) using the screws (AA)
provided. Please note that the rubber washers are pre-
attached to the blade bracket (H). Insert a screw into the
blade bracket (H). Repeat for the two remaining screws (AA).
□ Tighten each screw securely.
□ Repeat these steps for the remaining blades.
□ Fasten the blade assembly to the motor (D) by inserting the
alignment post into the slot on the bottom of the motor (D)
and tightening the blade bracket screws (TT). Please note
that the blade bracket screws (TT) are pre-attached into the
blade bracket (H).
□ Repeat this step for the remaining blade assemblies.
H
AA
G
D
TT
H
