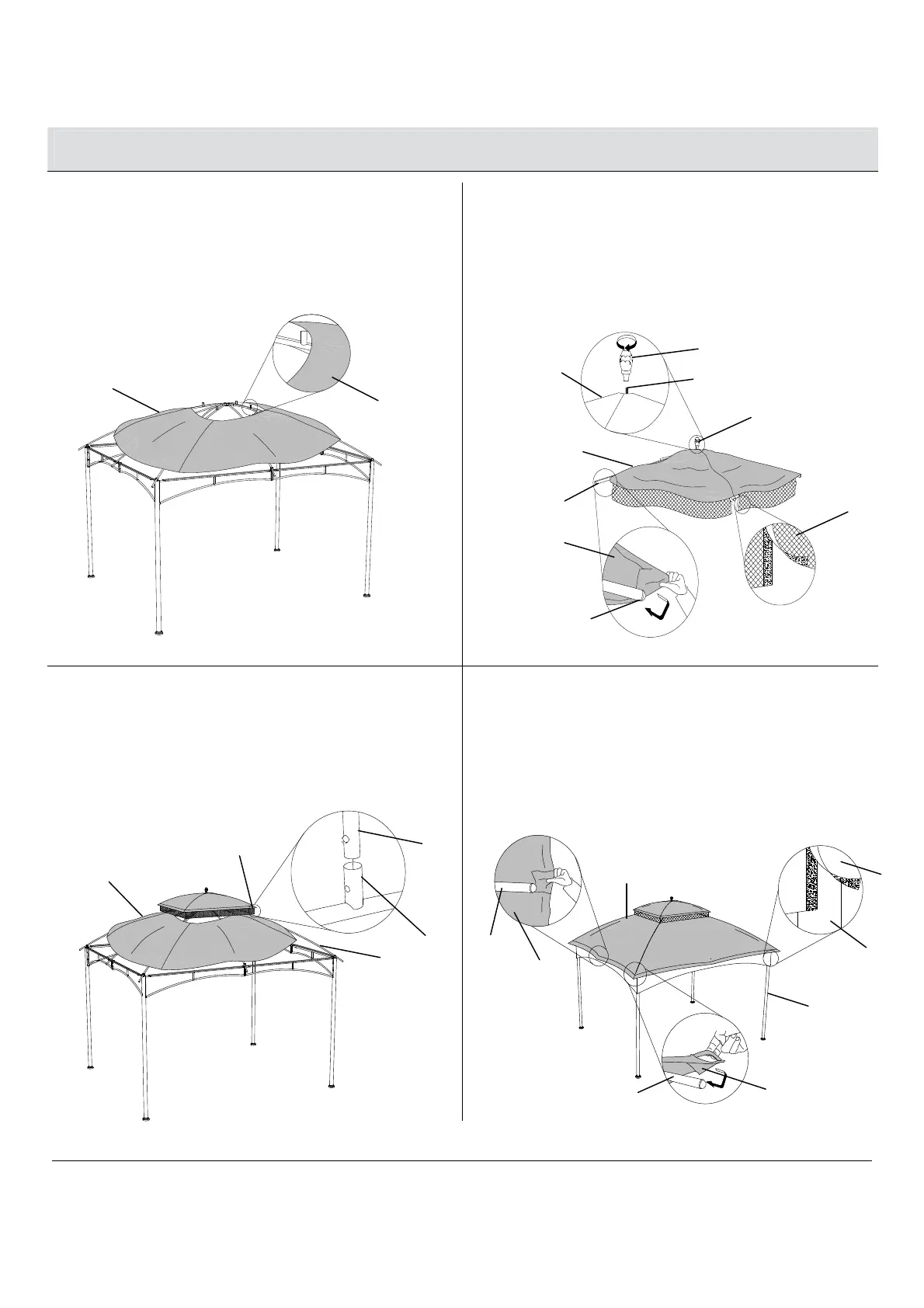

HAMPTON BAY MASSILLON - Assembly Instructions; Attaching the Big Canopy; Attaching the Small Canopy; Attaching Small Roof to Big Roof

4
Assembly
1
Attaching the Big Canopy
2
Attaching the small canopy
 Put the big canopy (Q) on the big top of the gazebo. Note:
please take off the small roof frame advance.
□ Attach the small canopy (P) to the small roof, aligning the
corners and stretching it to fit. Screw the decoration (O) to
the small top connector (N).
3
Attaching the small roof to the big
roof
4
Spreading the big canopy
□
A
ttach the small roof to the big roof. □ Spread the big canopy (Q), aligning the corners to the Long
middle board (H).
